Quick Details
-
Output Speed:
-
180rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
36
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMR
-

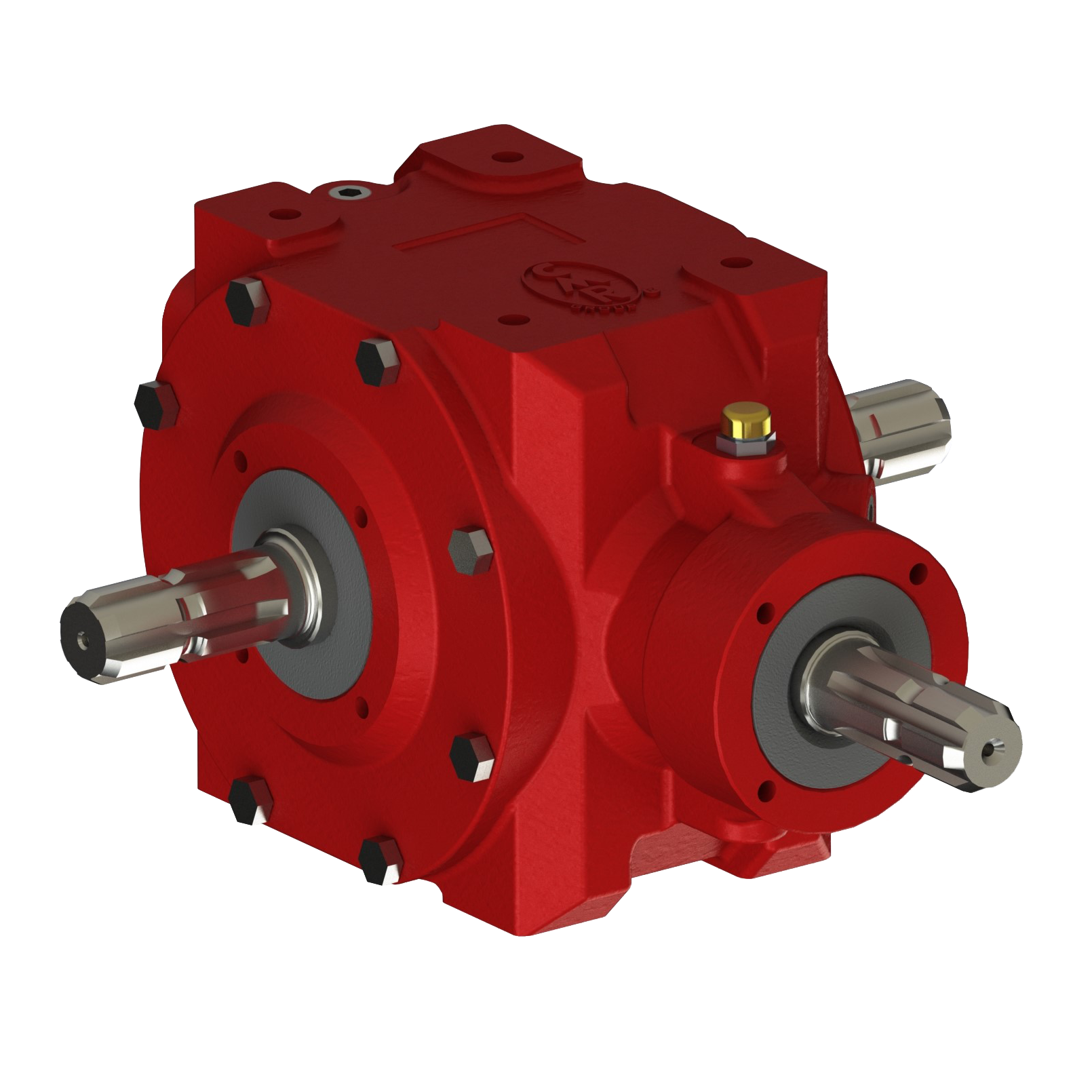

Product name:
-
Agricultural Gearbox
-
Housing Material:
-
Cast iron
-
Gear material:
-
20CrMnTi Steel
-
Shaft material:
-
20CrMnTi Steel
-
Toothing:
-
Gleason Helical Teeth/Straight Teeth
-
Ratio:
-
3:1
-
Output torque:
-
1702
-
Input torque:
-
567
-
Fit for:
-
Rotary tillers, shredders, bales, fertilizer spreaders
Quick Details
-
Gearing Arrangement:
-
Bevel / Miter
-
Output Torque:
-
1702N.m
-
Input Speed:
-
540rpm
-
Output Speed:
-
180rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
36
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMR
-
Product name:
-
Agricultural Gearbox
-
Housing Material:
-
Cast iron
-
Gear material:
-
20CrMnTi Steel
-
Shaft material:
-
20CrMnTi Steel
-
Toothing:
-
Gleason Helical Teeth/Straight Teeth
-
Ratio:
-
3:1
-
Output torque:
-
1702
-
Input torque:
-
567
-
Fit for:
-
Rotary tillers, shredders, bales, fertilizer spreaders
Products Description
Application:
Fertiliser spreader
Salt spreader
Double disc fertiliser spreader
Saw mills
Rotary tiller
Rotary cultivator
Round baller
Shredders
Main features:
Small volume
Increase the torque of your orbit motor
Specially made for apron drive
Orbit motor flange SAE A
|
Model NO.: T91
|
|
|
|
|
|
|||||
|
Ratio
|
Input (rpm)
|
Output (rpm)
|
Kw (HP)
|
Input torque (N.M)
|
Output torque (N.m)
|
|||||
|
3:1
|
540
|
180
|
33/45
|
567
|
1702
|
|||||
|
3:1
|
1000
|
333
|
49/67
|
474
|
1422
|
|||||
|
2.42:1
|
540
|
223
|
41.9/57
|
718
|
1739
|
|||||
|
2.42:1
|
1000
|
413
|
63/85
|
599
|
1450
|
|||||
|
1.9:1
|
540
|
284
|
51.5/70
|
911
|
1731
|
|||||
|
1.9:1
|
1000
|
526
|
77.5/105
|
740
|
1407
|
|||||
|
1.46:1
|
540
|
367
|
62.5/85
|
1113
|
1626
|
|||||
|
1.46:1
|
1000
|
680
|
94/128
|
904
|
1320
|
|||||
|
1:1
|
540
|
540
|
66/89.8
|
1110
|
1110
|
|||||
|
1:1
|
1000
|
1000
|
100/136
|
900
|
900
|
|||||
|
1:1.46
|
540
|
793
|
69/93.8
|
1189
|
815
|
|||||
|
1:1.46
|
1000
|
1470
|
105/142.8
|
946
|
648
|
|||||
|
1:1.9
|
1000
|
1900
|
62/84.3
|
592
|
311
|
|||||
|
1:1.9
|
540
|
1026
|
95/129.2
|
1680
|
884
|
|||||
|
1:2.42
|
1000
|
2420
|
58/78.9
|
1009
|
417
|
|||||
|
1:2.42
|
540
|
1300
|
90/122.4
|
815
|
337
|
|||||
|
1:3
|
1000
|
3000
|
85/115.6
|
771
|
257
|
|||||
