Quick Details
-
Filling Accuracy:
-
±0.05g
-
Packaging Type:
-
tubes
-
Voltage:
-
220V
-
Place of Origin:
-
China
-
Brand Name:
-
K Snow
-
Dimension(L*W*H):
-
L1300*W1300*H1550mm
-
Weight:
-
350 KG
-
ultrasonic system:
-
Digital automatic frequency tracking
-
filling range:
-
0.2-3ml
-
tube height:
-
50-150mm
-
tube diameter range:
-
50-135mm
-
working pressure:
-
0.6MPa
-
working posistion:
-
6pcs
-
filling machine pump:
-
5pcs Ceramic valve less plunger pump
-
fault alarm:
-
yes
-
no tube, no filling no sealing:
-
yes
-
tube row length:
-
140mm
Quick Details
-
Machinery Capacity:
-
900rows/H
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Water, Oil, liquid
-
Filling Accuracy:
-
±0.05g
-
Packaging Type:
-
tubes
-
Voltage:
-
220V
-
Place of Origin:
-
China
-
Brand Name:
-
K Snow
-
Dimension(L*W*H):
-
L1300*W1300*H1550mm
-
Weight:
-
350 KG
-
ultrasonic system:
-
Digital automatic frequency tracking
-
filling range:
-
0.2-3ml
-
tube height:
-
50-150mm
-
tube diameter range:
-
50-135mm
-
working pressure:
-
0.6MPa
-
working posistion:
-
6pcs
-
filling machine pump:
-
5pcs Ceramic valve less plunger pump
-
fault alarm:
-
yes
-
no tube, no filling no sealing:
-
yes
-
tube row length:
-
140mm
Products Description
1. Manually drop the pipe. Machine automatic filling, sealing and cutting, convenient and fast operation
2. Use ultrasonic technology for sealing. The sealing effect is stable and long-lasting, with clear patterns at the sealing area and no deformation
3. Adopting PLC touch screen control, easy to operate
4. The whole row tube filling sealing machine is made of 304 stainless steel flowers refined. Acid and alkali resistance, corrosion resistance
5. Adopting a ceramic pump filling machine, the filling accuracy is high,
6. Equipped with an automatic sensing system, no pipes, no filling or sealing, reducing machine and mold wear and tear rates
Application:
filling and sealing various plastic tube or aluminum-plastic pipe fluids in food, medicine, cosmetics, chemical and other industries
|
Model
|
005H
|
Frequency
|
20KHz
|
|
Power
|
2.6KW
|
Voltage
|
AC220V 1PH 50/60hz
|
|
Filling range
|
0.2-3ml
|
Filling error
|
±0.05g
|
|
Capacity
|
13-15rows/min
|
Sealng diameter
|
50-135mm
|
|
Sealing height
|
50-150mm
|
Working air pressure
|
0.6MPa
|
|
Machine dimensions
|
L1300*W1300*H1550mm
|
Machine weight
|
350Kgs
|

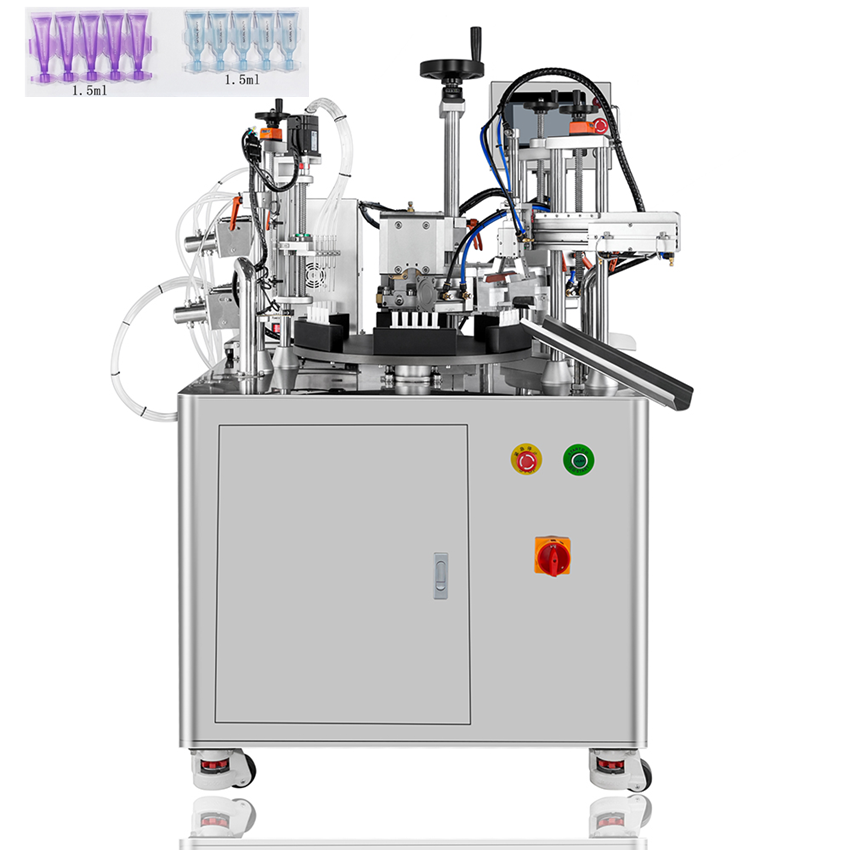

automatic plastic tube filling and sealing machine
main c
onfiguration
|
1.
|
Ultrasound system
|
Digital automatic frequency tracking
|
2.
|
inverter
|
Taiwan Delta
|
|
3.
|
PLC
|
Mitsubishi
|
4.
|
relay
|
Omron, Japan
|
|
5.
|
touch screen
|
Weinview
|
6.
|
Induction switch
|
Sike, the Ottoniks
|
|
7.
|
cylinder
|
Yadeke/Xingchen
|
8.
|
solenoid valve
|
AirTAC
|
|
9.
|
electrical machinery
|
ZD high-precision brake motor
|
10.
|
Splitter
|
Youde High Precision
|
|
11.
|
Frequency converter
|
Taiwan Delta
|
12.
|
Stepper motor
|
Resay
|
connected tube filling and sealing machine process: Manual tube loading--positioning--sealing--end cutting--out putting
Six station splitter for precise positioning
Stepper motor lifting control: height parameters can be set according to product size
ultrasonic tube sealing
Automatic product retrieval by robotic arm
Plan distribution picture
automatic plastic row tube filling and sealing machine storage
