Quick Details
-
Model Number:
-
KB-5101
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-25~80℃
-
Max. Current:
-
10A
-
Name:
-

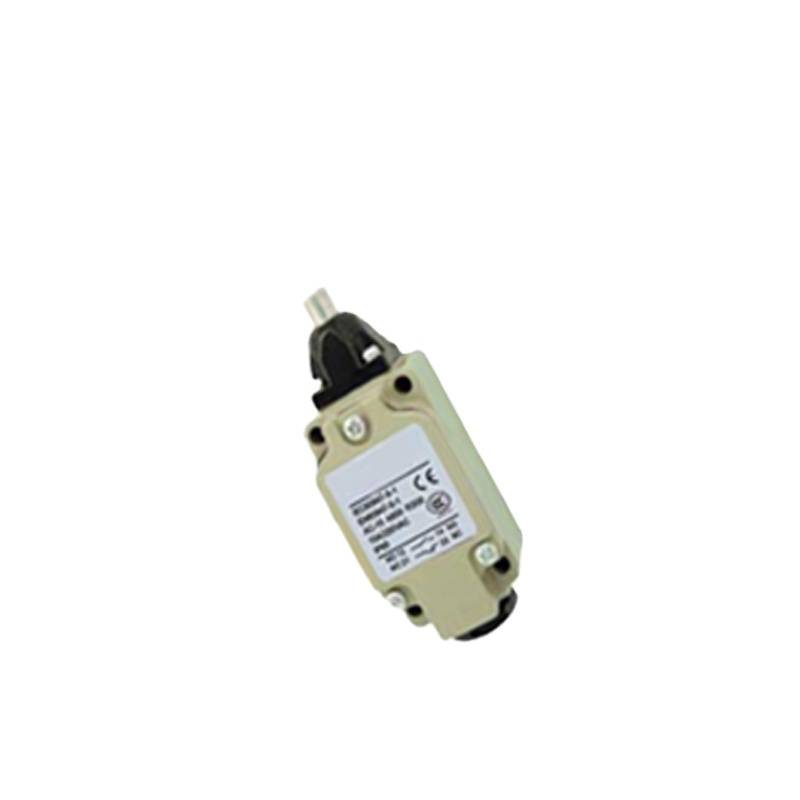

vertical type limit switch
-
Rated current:
-
10A 250VAC
-
Frequency:
-
120 times per min
-
Contact resistance:
-
15mΩ
-
Insulation resistance:
-
>100mΩ
-
Ambient temperature:
-
-25~80
-
Ambient humidity:
-
≤95%RH
-
Protection degree:
-
IP66
-
Weight:
-
258g
-
Operating Speed:
-
1mm~2m/s
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Nanjing, China
-
Brand Name:
-
KJTDQ
-
Model Number:
-
KB-5101
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-25~80℃
-
Max. Current:
-
10A
-
Name:
-
vertical type limit switch
-
Rated current:
-
10A 250VAC
-
Frequency:
-
120 times per min
-
Contact resistance:
-
15mΩ
-
Insulation resistance:
-
>100mΩ
-
Ambient temperature:
-
-25~80
-
Ambient humidity:
-
≤95%RH
-
Protection degree:
-
IP66
-
Weight:
-
258g
-
Operating Speed:
-
1mm~2m/s
Products Description
Product Paramenters
|
Model
|
KB-5101
|
KB-5102
KB-5103
|
KB-5104
|
KB-5107
|
KB-5108
|
KB-5109
|
KB-5106 KB-5166 KB-5168 KB-5169
|
KB-5105
|
|||||||
|
Max OF
|
2720g
|
2720g
|
1000g
|
1420g
|
1360g
|
2720g
|
150g
|
1200g
|
|||||||
|
Min RF
|
910g
|
910g
|
227g
|
280g
|
227g
|
910g
|
-
|
-
|
|||||||
|
Max PT
|
1.7mm
|
1.7mm
|
20°
|
20°
|
20°
|
1.7mm
|
28mm
|
227g
|
|||||||
|
Min OT
|
6.4mm
|
5.6mm
|
70°
|
70°
|
70°
|
4mm
|
-
|
55°
|
|||||||
|
Max MD
|
1mm
|
1mm
|
10°
|
10°
|
10°
|
1mm
|
-
|
35°
|
|||||||
|
OP
|
34±0.8mm
|
44.8±0.8mm
|
-
|
-
|
-
|
44.5±0.8mm
|
-
|
90±10°
|
|||||||
|
operating speed
|
|
15A 250VAC
|
|
|
|
|
|
|
|||||||
|
action frequency
|
|
1mm~2m/s
|
|
|
|
|
|
|
|||||||
|
contact resistance
|
|
Mechanical: 120 times/min
|
|
|
|
|
|
|
|||||||
|
|
|
Electrical: 30 times/min
|
|
|
|
|
|
|
|||||||
|
Contact resistance
|
|
15mΩ or less
|
|
|
|
|
|
|
|||||||
|
Insulation resistance
|
|
100Ω or more (under 500VDC)
|
|
|
|
|
|
|
|||||||
|
Withstand voltage
|
|
Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute
|
|
|
|
|
|
|
|||||||
|
|
|
Between terminal and ground: 2,200VAC, 50, 60Hz, for one minute
|
|
|
|
|
|
|
|||||||
|
|
|
Between terminal and no-carrying current metal: 2,200VAC, 50/60Hz for one minute
|
|
|
|
|
|
|
|||||||
|
Vibration
|
|
Action durability: 10~55Hz, 1.5mm double amplitude
|
|
|
|
|
|
|
|||||||
|
impact blow
|
|
Mechanical durability: 1000m/s2 or more (about 100G or more)
|
|
|
|
|
|
|
|||||||
|
|
|
Malfunction durability: 300m/s2 or more (about 30G or more)
|
|
|
|
|
|
|
|||||||
|
Operating ambient temperature
|
|
|
-10~+80 ℃
|
|
|
|
|
|
|||||||
|
Humidity
|
|
Maximum 95%RH
|
|
|
|
|
|
|
|||||||
|
Service life
|
|
Mechanical: more than 1-5 million times/Electrical: more than 500,000 times
|
|
|
|
|
|
|
|||||||
|
Protection level
|
|
IEC: IP66
|
|
|
|
|
|
|
|||||||
|
Weight
|
|
about 258g
|
|
|
|
|
|
|
|||||||
Product Dimensions
Product Wiring Diagram
PRODUCT APPLICATION
