Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-
PS17-16
-
Name:
-
SOKEN vacuum cleaner lock push button switch 250VAC PS17-16
-
Main material:
-
PA66
-
Function:
-
Latching
-
Operation temp:
-
-25~85℃
-
Certificate:
-
CQC/TUV
-
Certification:
-
TUV
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
16(10)A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-
PS17-16
-
Name:
-
SOKEN vacuum cleaner lock push button switch 250VAC PS17-16
-
Main material:
-
PA66
-
Function:
-
Latching
-
Operation temp:
-
-25~85℃
-
Certificate:
-
CQC/TUV
-
Certification:
-
TUV

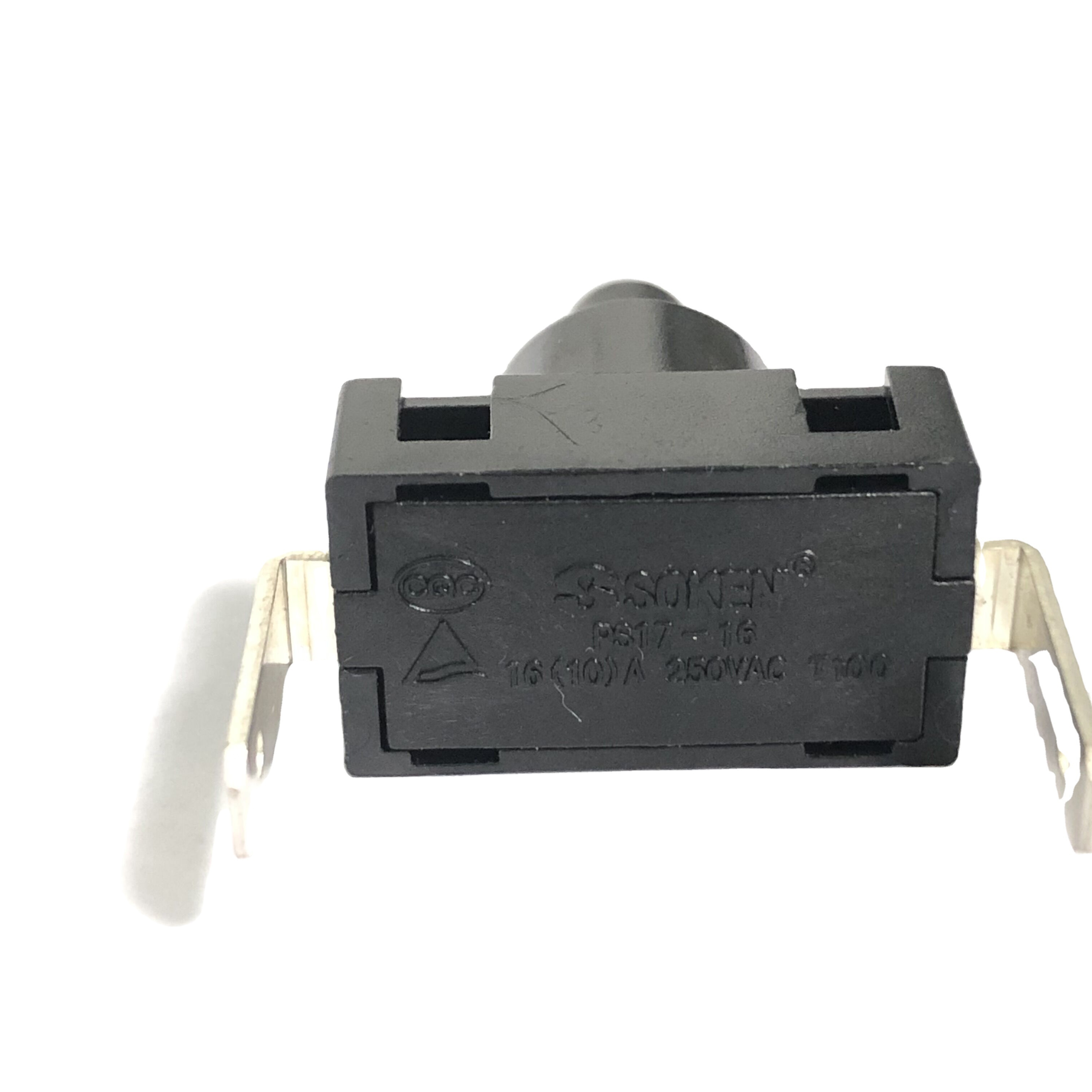

SOKEN vacuum cleaner lock push button switch 250VAC
PS17-16
Latching
Product Description
-
Specification
Rating
16A 250VAC Operating
temperature
-25~85℃ Contact resistance 100mΩ Max Insulation resistance 100mΩ Min Electrical life 10000cycles(16A 250VAC) Applicable standard IEC61058-1 -
Material list
Contact leg Brass T=0.8mm Contact Silver alloy Terminals Brass T=0.8mm Case PA66 Gear PA66 - Drawing
- Product display
Packaging & Shipping
Inner carton box+factory standard export carton box
QTY/CTN:1000pcs
SIZE/CTN: 53*18*42cm
G.W./CTN:17.5kg
