Quick Details
-
Brand Name:
-
HONGGANG
-
Product name:
-
manual die cutting press
-
Suitable for material:
-
foam/EVA/fabric/rubber/leather and so on
-
Color:
-
Blue
-
Working mode:
-
cutting by die/mould
-
Cutting force:
-
25-100tons or Costomize
-
Cutting area:
-
1220*610mm or 1600*610mm or Costomize
-
Stroke:
-
50-240mm
-
Columns:
-
four
Quick Details
-
Applicable Industries:
-
Shoe
-
Weight (KG):
-
1600
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONGGANG
-
Product name:
-
manual die cutting press
-
Suitable for material:
-
foam/EVA/fabric/rubber/leather and so on
-
Color:
-
Blue
-
Working mode:
-
cutting by die/mould
-
Cutting force:
-
25-100tons or Costomize
-
Cutting area:
-
1220*610mm or 1600*610mm or Costomize
-
Stroke:
-
50-240mm
-
Columns:
-
four

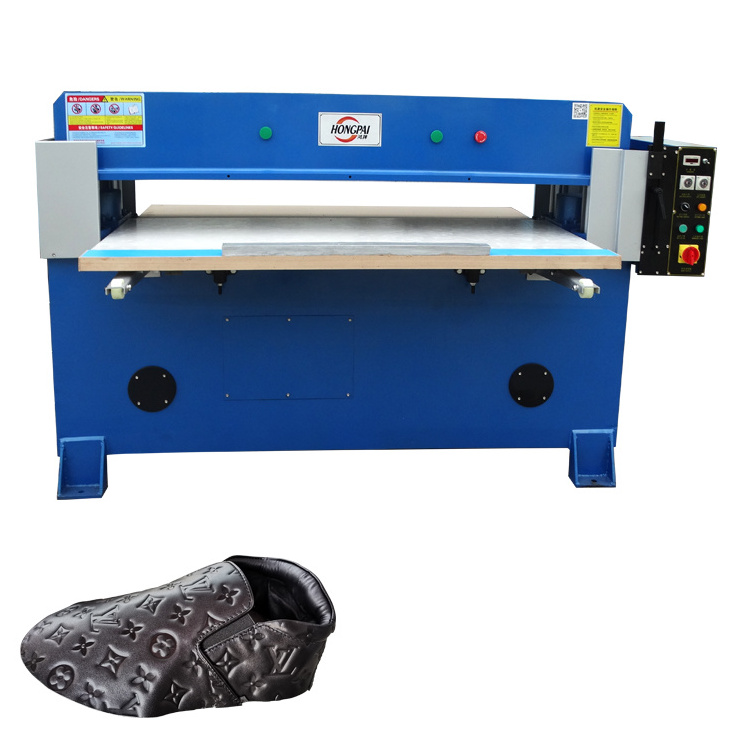

foam/plastic/fabirc/shoe hydraulic beam manual die cutting press
| Parameter | ||
|
|
Power | 2.2KW |
| Voltage | 220V/380V/415V | |
| Cutting Area | 610×1600 or 610 ×1220 MM | |
| Stroke | 50-240MM | |
| Dimensions | 2330×1 320 × 1260 MM | |
| Cutting Force | 25-300tons;optional | |
| Net Weight | 1900KG | |
| Control |
Manual or By computer, Electrical box,PLC |
|
| Max.Cutting Depth | 240MM | |
1.Double-cylinders,four-columns,self-balancing connecting rod which can maintain equal pressure of each position.
foam/plastic/fabirc/shoe hydraulic beam manual die cutting press
2.Series B machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting.
foam/plastic/fabirc/shoe hydraulic beam manual die cutting press
3.When the upper board pressure down and contact to the blade,automatically,it can cut slowly,so that there is no size error between the top and the bottom materials.
foam/plastic/fabirc/shoe hydraulic beam manual die cutting press
4.The unique setting construction,combine with the cutting knife and cutting height which stroke simple and accurate.
foam/plastic/fabirc/shoe hydraulic beam manual die cutting press
5.Central automatic lubrication systems can ensure precision and durability of the machine.
foam/plastic/fabirc/shoe hydraulic beam manual die cutting press
6.More economical and 2 or 3 times improving producting capacity.
| Model. No | HG-A30T | HG-B30T | HG-A40T | HG-A50T |
| Cutting force | 30 tons | 30 tons | 40 tons | 50 tons |
| Dimension (L*W*H) |
2330*1320*1260 mm |
1950*1320*1260 mm |
2330*1320*1260 mm |
2330*1320*1260 mm |
| Stroke | 50-160mm | 50-240mm | 50- 16 0 mm | 50-240 mm |
| Area of Work Table | 610mm*1600mm | 6100mm*1220mm | 61 0mm*1600 mm | 61 0mm*1600 mm |
| Main Motor Power | 2.2KW | 2.2KW | 4KW | 4KW |
|
Weight |
1900KG | 2000KG | 2500KG | 2900KG |
