Quick Details
-
Power (kW):
-
1.5
-
Weight (KG):
-
1100 KG
-
Type:
-
wire nail making machine
-
Max nail diameter:
-
3 mm
-
Max nail length:
-
75 mm
-
Capacity:
-
280pcs/min
-
Min nail diametr:
-
1.8 mm
-
Min nail length:
-
30 mm
-
Dimension:
-
2000*140 0*1400mm
-
Package:
-
Wooden Case
Quick Details
-
Production Capacity:
-
100sets per month
-
Place of Origin:
-
Henan
-
Brand Name:
-
PD
-
Power (kW):
-
1.5
-
Weight (KG):
-
1100 KG
-
Type:
-
wire nail making machine
-
Max nail diameter:
-
3 mm
-
Max nail length:
-
75 mm
-
Capacity:
-
280pcs/min
-
Min nail diametr:
-
1.8 mm
-
Min nail length:
-
30 mm
-
Dimension:
-
2000*140 0*1400mm
-
Package:
-
Wooden Case
Product Description

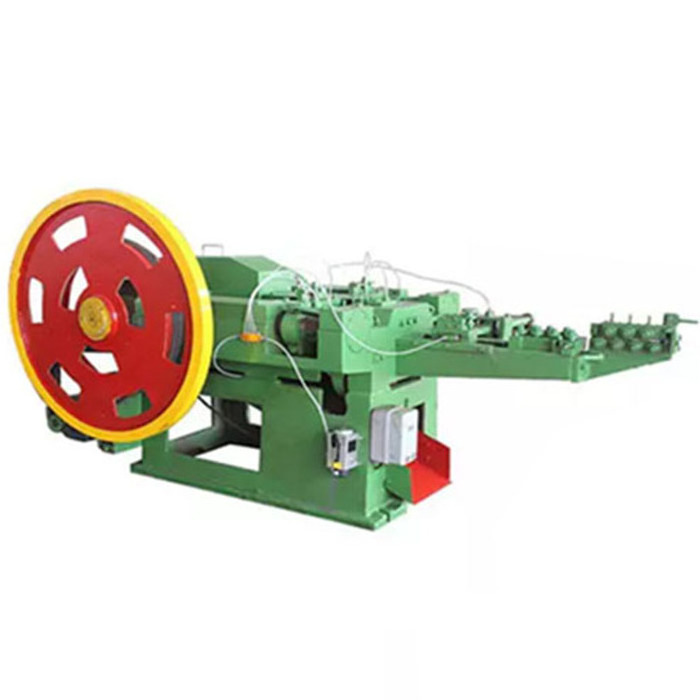

1.The steel wire Nail Production line is mainly composed of Nail Making Machine,Wire Drawing Machine, Nail Polishing machine.
2.The wire nail making machine is used for producing various common nails and special nails. It has wide uses, simple operation and reliable run. We can supply various machine parts and necessary fine auxiliaries for you.
3.This nail making machine adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact.
2.The wire nail making machine is used for producing various common nails and special nails. It has wide uses, simple operation and reliable run. We can supply various machine parts and necessary fine auxiliaries for you.
3.This nail making machine adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact.
Specification
|
Model
|
PD94-1C
|
PD94-2C
|
PD94-3C
|
PD94-4C
|
ZPD94-5C
|
PD94-6C
|
|
Power
|
1.5kw
|
2.2kw
|
2.2kw
|
5.5kw
|
7.5kw
|
11kw
|
|
Max nail dia
|
1.6mm
|
2.8mm
|
3.1mm
|
4.5mm
|
5mm
|
6mm
|
|
Min nail dia
|
0.9mm
|
1.2mm
|
1.8mm
|
2.8mm
|
3.1mm
|
3.1mm
|
|
Max nail length
|
25mm
|
50mm
|
75mm
|
100mm
|
130mm
|
200mm
|
|
Min nail length
|
9mm
|
16mm
|
30mm
|
50mm
|
80mm
|
80mm
|
|
Capacity
|
450(pcs/m)
|
300(pcs/m)
|
280 (pcs/m)
|
260 (pcs/m)
|
220 (pcs/m)
|
120(pcs/m)
|
|
Weigth(kg)
|
800
|
950
|
1100
|
1800
|
2200
|
2500
|
|
Dimension
(mm) |
1500*1300*
1200 |
1500*1300*
1200 |
2000*1400*
1400 |
2600*1650*
1650 |
2700*1600*
1650 |
2950*1550*
1450 |
Packing & Delivery
Standard export wooden package
