Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB16F-T11Z/N
-
IP level:
-
IP65
-
Product Name:
-
Selector Switch
-
Mounting Hole Size:
-
16mm
-
Operation Type:
-
Latching
-
Head Type:
-
Flat round with selector
-
Terminal type:
-
3 Pin Terminals
-
Enclosure Material:
-
Brass Nickel
-
Illuminated type:
-
/
-
IP degree:
-
IP65
-
Product type:
-
waterproof selector switch
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
15A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB16F-T11Z/N
-
IP level:
-
IP65
-
Product Name:
-
Selector Switch
-
Mounting Hole Size:
-
16mm
-
Operation Type:
-
Latching
-
Head Type:
-
Flat round with selector
-
Terminal type:
-
3 Pin Terminals
-
Enclosure Material:
-
Brass Nickel
-
Illuminated type:
-
/
-
IP degree:
-
IP65
-
Product type:
-
waterproof selector switch
Recommend Products
Products Description

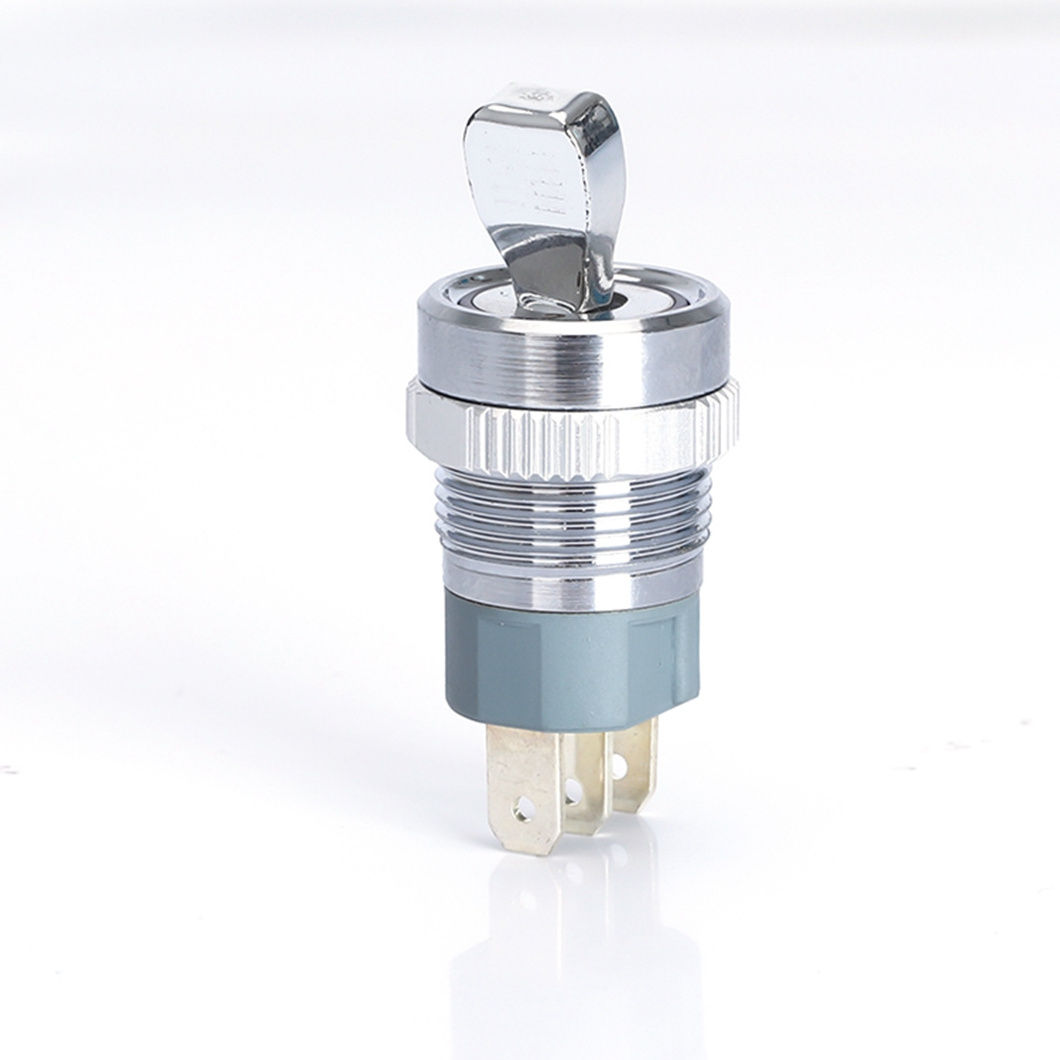

New Arrival 16mm Select Switch 2 Position Latching 1NO1NC 10-15A Rotary Switch Waterproof Selector Switch
|
Product Name
|
Selector Switch
|
|
Model
|
IB16F-T11Z/N
|
|
Mounting Hole
|
16mm
|
|
Operation Type
|
Latching
|
|
Switch Combination
|
1NO1NC
|
|
Head Type
|
Rotary head
|
|
Terminal type
|
Solder Terminal
|
|
Enclosure Material
|
Brass Nickel
|
|
Delivery Days
|
3-7 days after payment received
|
|
Contact Resistance
|
50 mΩ max
|
|
Insulation Resistance
|
1000MΩ Min
|
|
Dielectric Intensity
|
2000VAC
|
|
Operating Temperature
|
-20°C ~+55°C
|
|
Wire Connector / Wire soldering
|
Acceptable and with fast shipping
|
|
Accessories
|
Nut, Rubber ,Waterproof O-ring
|
