Quick Details
-
Model:
-
PWH-30KW
-
input voltage:
-
380v
-
Input Current:
-
1-40A
-
Output Current:
-
1-250A
-
0utput Power:
-
1-30KW
-
Output Frequency:
-
5-30KHZ
-
Length:
-
15-30M
-
Diameter:
-
15mm
-
Working Temperature:
-
0-350℃
Quick Details
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Video technical support
-
Product name:
-
Best Price Induction Post Weld Heat Treatment Machine
-
Model:
-
PWH-30KW
-
input voltage:
-
380v
-
Input Current:
-
1-40A
-
Output Current:
-
1-250A
-
0utput Power:
-
1-30KW
-
Output Frequency:
-
5-30KHZ
-
Length:
-
15-30M
-
Diameter:
-
15mm
-
Working Temperature:
-
0-350℃
Best Price Induction Post Weld Heat Treatment Machine
Myd portable induction heating system advantage:
1.portable design.
2.pid control with precise temperature control.
3.quick connect&easy to install and operateplc.
4.plc touch panel control.
5.air coolng system.
6.energy-saving.
7.long time working,good quality.

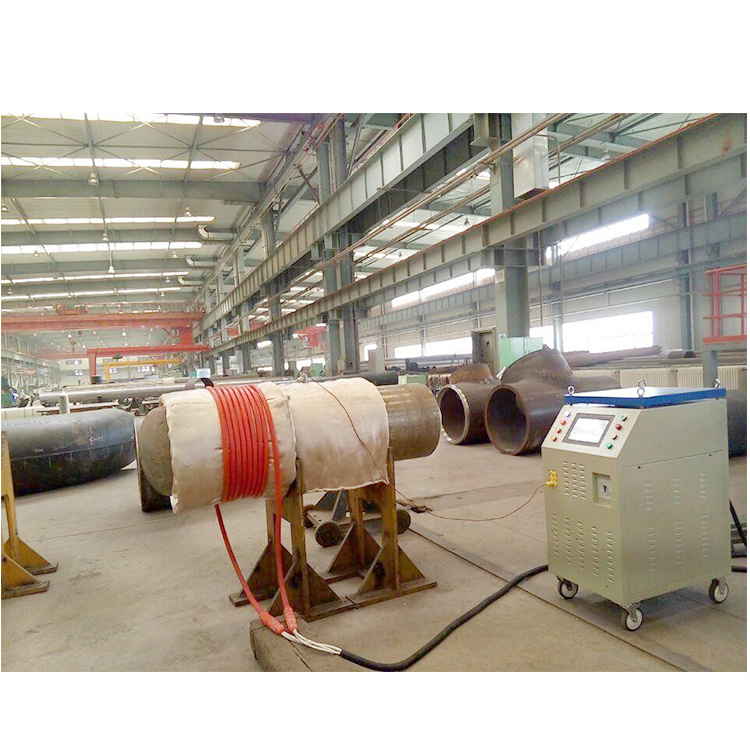

Portable induction heating system application:
1.weld preheating&pwht.
2.stress releving&annealng.
3.pipe heating treatment&gas oil pipe heating.
4.othersand soon.
|
Model |
PWH -10KW |
PWH-20KW |
PWH -30KW |
|
input voltage |
380V 3 phase |
||
|
Input Current |
1-15A |
1-30A |
1-40A |
|
Output Current |
1-150A |
1-200A |
1-250A |
|
Output Power |
1-10KW |
1-20KW |
1-30KW |
|
Output Frequency |
5-30KHZ |
||
|
Thermocouple |
K type |
||
|
Max Temperature |
Max 900℃ |
||
|
Heating Pipeline Size |
Dia:50-400mm |
Dia:50-600mm |
Dia:50-750mm |
|
Heater Size |
500*350*400mm |
550*400*450mm |
750*450*700mm |
|
Weight |
26kg |
30kg |
45kg |
|
Induction Heating coil |
air cooling |
||
|
Length |
15-30M |
||
|
Diameter |
10 mm |
13 mm |
15 mm |
|
Working Temperature |
0-350℃ |
||
Equipment composition:
1.Induction heating Power
2.Air cooling soft induction coil
3.Air cooling Heating Blanket
4.Thermocouple
