It is suitable for high-power motors, with large torque capacity, modular design and multiple output modes. The utility model has the advantages of high efficiency, long service life, bearing large axial force and radial load, low operation noise, high reliability, compact structure, etc. Four series of reducers can be combined to increase the range of ratio.
- Product Details
- {{item.text}}
Quick Details
-
Output Speed:
-
1.7-1200 rpm
-
Warranty:
-
12 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
goldgun
-
Name:
-
High Power Speed Reducer
-
Color:
-
Blue And According to customer's request
-
Ratio:
-
1.25-450
-
Type:
-
Helical,Bevel-helical
-
Input Form:
-
motor interface/solid shaft
-
Output Form:
-
hollow shaft/solid shaft
-
Installation Type:
-
foot/torque arm/flange/swing base
-
Size:
-
B1 ,B2 ,B3 ,B4
-
Mounting Position:
-
Horizontal (foot mounted) or Vertical (flange mounted)
-
Material:
-
cast iron housing
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
Up to 470000 N.m
-
Input Speed:
-
750-1500 rpm
-
Output Speed:
-
1.7-1200 rpm
-
Warranty:
-
12 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
goldgun
-
Name:
-
High Power Speed Reducer
-
Color:
-
Blue And According to customer's request
-
Ratio:
-
1.25-450
-
Type:
-
Helical,Bevel-helical
-
Input Form:
-
motor interface/solid shaft
-
Output Form:
-
hollow shaft/solid shaft
-
Installation Type:
-
foot/torque arm/flange/swing base
-
Size:
-
B1 ,B2 ,B3 ,B4
-
Mounting Position:
-
Horizontal (foot mounted) or Vertical (flange mounted)
-
Material:
-
cast iron housing
Product Description
It is suitable for high-power motors, with large torque capacity, modular design and multiple output modes. The utility model has the advantages of high efficiency, long service life, bearing large axial force and radial load, low operation noise, high reliability, compact structure, etc. Four series of reducers can be combined to increase the range of ratio.
|
Series：
|

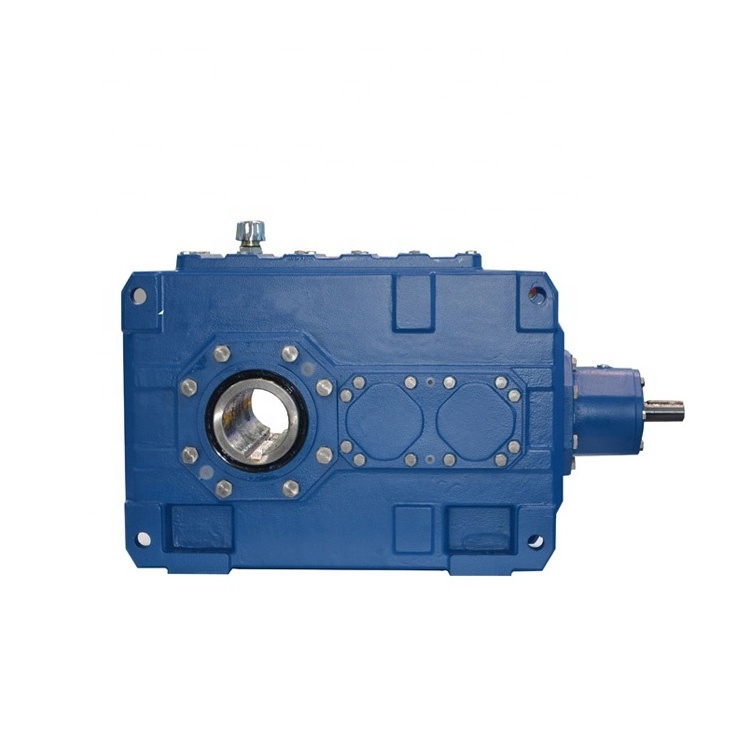

H、B Series High Power Speed Reducer
|
|
Output Speed：
|
1.7~1200r/min
|
|
Output Torque：
|
Up to 470000N.m
|
|
Motor Power：
|
2.52~5366KW
|
|
Mounted Form ：
|
Horizontal Mounting、Vertical Mounting、Axis Mounting、Shrink Disk Mounting
|
