Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Diesel generator:
-
500KW/625KVA
-
Engine model:
-
KTAA19-G5
-
Alternator model:
-
ST354ES
-
Control panel:
-
Deepsea DSE6020
-
Cooled type:
-
Radiator/water and fan
-
Base fuel tank:
-
8 hours
-
Type:
-
Silent/Open/Trailer/Canopy/Container
-
Optional:
-
Automatic transfer switch
-
Spare parts:
-
All available
-
Warranty:
-
12 months
Quick Details
-
Rated Voltage:
-
400/230V
-
Rated Current:
-
900A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Diesel generator:
-
500KW/625KVA
-
Engine model:
-
KTAA19-G5
-
Alternator model:
-
ST354ES
-
Control panel:
-
Deepsea DSE6020
-
Cooled type:
-
Radiator/water and fan
-
Base fuel tank:
-
8 hours
-
Type:
-
Silent/Open/Trailer/Canopy/Container
-
Optional:
-
Automatic transfer switch
-
Spare parts:
-
All available
-
Warranty:
-
12 months

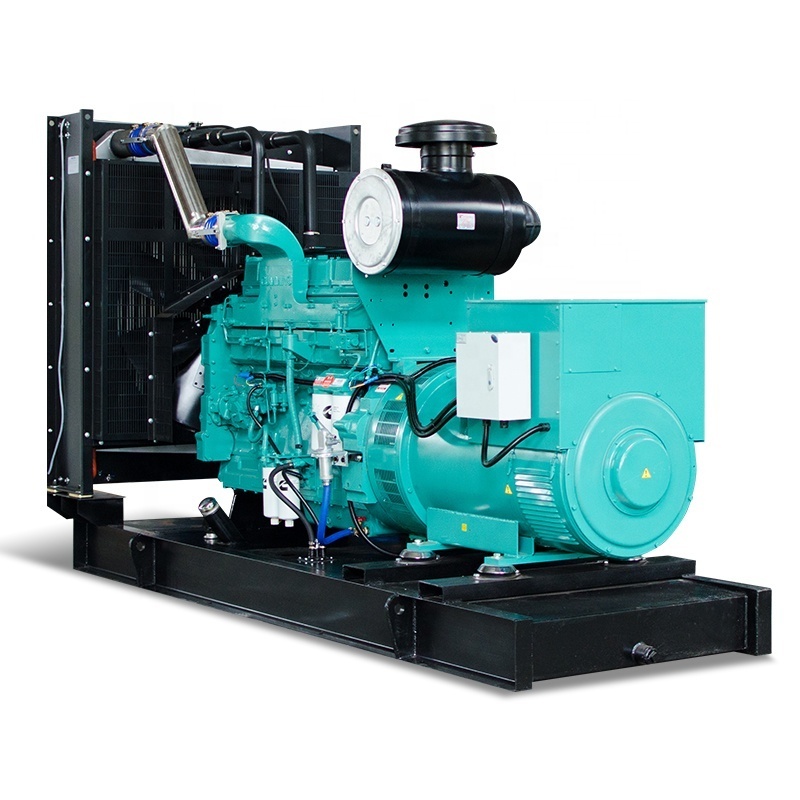

Open or silent 625kva 500kw diesel generator price with Cummins engine KTAA19-G5
500kw diesel generator (optional engine brands, alternator brands and Control panel)
| Rated power | Engine | Alternator | Control panel |
| 20kw~1300kw | Cummins |
Stamford
Leroy somer Marathon Mecc alte ABB Chinese alternators |
Deepsea
ComAp Harsen Smartgen |
| 8kw~1600kw | Perkins | ||
| 68kw~504kw | Volvo | ||
| 20kw~500kw | Deutz | ||
| 220kw-2400kw | MTU | ||
| 280kw-800kw | MAN | ||
| 600kw-1800kw | Mitsubishi | ||
| 50kw-650kw | Doosan | ||
| 2kw~2500kw | Chinese engine |
|
Engine Model |
KTAA19-G5 |
|
Engine manufacturer |
CUMMINS |
|
Number of Cylinders |
6 cylinders |
|
Cylinders arrangement |
Vertical in line |
|
Cycle |
4 stroke |
|
Aspiration |
Turbocharged |
|
Bore×Stroke |
159mm x159mm |
|
Displacement |
19L |
|
Compression ratio |
13.9:1 |
|
Prime Power/Speed |
470KW/1500rpm |
|
Standby Power/Speed |
555KW/1500rpm |
|
Speed Governor |
Electric |
|
Cooling System |
Forced water cooling cycle |
|
Steady speed droop |
≤1% |
|
Total lubrication system capacity |
38.6L |
|
Coolant capacity (engine only) |
20.8L |
|
Fuel Consumption at 100% Load |
203.8 g/kw.h |
|
Starter Motor |
DC24V |
|
Alternator |
DC24V |
Open or silent 625kva 500kw diesel generator price with Cummins engine KTAA19-G5
|
Alternator brand |
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
|
Prime power |
500KW |
|
Frequency/speed |
50HZ/1500RPM |
|
Exciter type |
Single bearing, Brushless, Self-excited |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥5% |
|
Voltage regulation NL-FL |
≤±1% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
500kw diesel generator (Control panel)
|
Brand |
Deepsea/ComAp |
|
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
With cummins diesel generator 500kw
Cheap price 500kw diesel generator
Silent 500kw diesel generator price
