Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM SF1 SF2 SF-1 SF-2
-
Model Number:
-
DU DX JDB WB800 WB802 WB700 WB702 JF800 FU
-
Lubricating:
-
Oilless,Dry,Carbon,Covered,Graphie,SL-4,Oil Grease,ptfe
-
Bush types:
-
Roll,Roller,Pipe,Solid,Split,Tube,Washer Ring,Plate
-
Standard:
-
DIN 1494, ISO2795, ISO/TS16949
-
Application 1:
-
Water Pump,Engine,Metallurgy,Farm Equipment,Forest Machine
-
Application 2:
-
Motor,Car,Truck,Plane,Fixed Bearings,Furniture,Truck,Updated
-
Application 3:
-
oil and gas industry Auto Parts Bushing,plumbing,machine part,pump
-
Features:
-
Wear,Dry,Low Resistance bush,Harden,Maintenance free bushing
-
Finishing:
-
bronze-plating bush or tin-plating bushing,no Pb,lead free bushing
-
Other products:
-
Oiles Bushing,Ball Cage,Bimtel,Wrapped Bronze Bushing,Cast Brass
-
Samples:
-
charged or free samples, small order acceptable
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Other
-
Type:
-
flanged,sleeve,thrust washer,slide pad,plain,skateboard
-
Material:
-
Stainless Steel,Copper,Steel,PTFE,Bronze
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM SF1 SF2 SF-1 SF-2
-
Model Number:
-
DU DX JDB WB800 WB802 WB700 WB702 JF800 FU
-
Lubricating:
-
Oilless,Dry,Carbon,Covered,Graphie,SL-4,Oil Grease,ptfe
-
Bush types:
-
Roll,Roller,Pipe,Solid,Split,Tube,Washer Ring,Plate
-
Standard:
-
DIN 1494, ISO2795, ISO/TS16949
-
Application 1:
-
Water Pump,Engine,Metallurgy,Farm Equipment,Forest Machine
-
Application 2:
-
Motor,Car,Truck,Plane,Fixed Bearings,Furniture,Truck,Updated
-
Application 3:
-
oil and gas industry Auto Parts Bushing,plumbing,machine part,pump
-
Features:
-
Wear,Dry,Low Resistance bush,Harden,Maintenance free bushing
-
Finishing:
-
bronze-plating bush or tin-plating bushing,no Pb,lead free bushing
-
Other products:
-
Oiles Bushing,Ball Cage,Bimtel,Wrapped Bronze Bushing,Cast Brass
-
Samples:
-
charged or free samples, small order acceptable
metal stamping wall switch brass contact parts sheet deep drawing sliding bearing bushing valve du bush guide sleeve
metal stamping wall switch brass contact parts sheet deep drawing sliding bearing bushing valve du bush guide sleeve

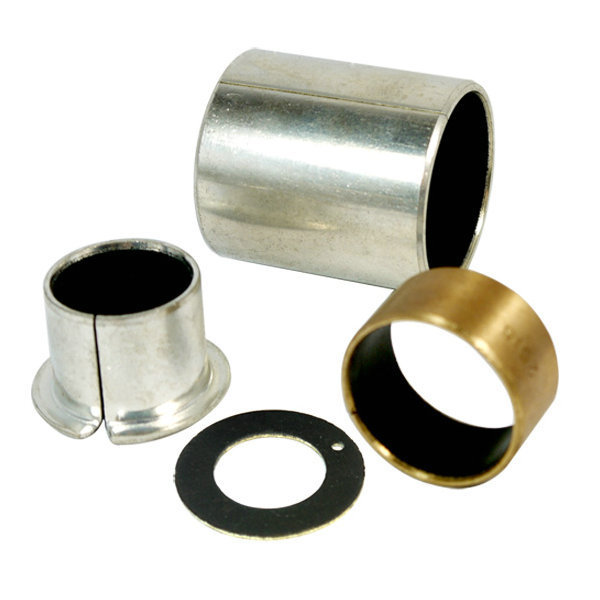

DU SF-1 BUSHING (PTFE)
|
Material: 1. Steel + Bronze powder + PTFE + Pb + Polymer 2. Steel + Bronze powder + PTFE + Polymer - Normally Used 3. Bronze + Bronze powder + PTFE + Polymer 4. Stainless steel + Bronze powder + PTFE + Polymer 5. Stainless steel + PTFE + Polymer 6. Carbon steel + Sintered bronze powder + PTFE + MoS2 |
|
Structure
|
PTFE with lead/Cu/Fibre : 0.01-0.03mm |
|
Porous bronze : 0.2-0.3mm |
|
|
Steel backing : 0.7-2.3mm |
|
|
Tin-plating 0.005mm or copper plating 0.008mm |
|
Type |
Load capacity(N/mm2) |
PV limit(N/mm2*m/s) |
Speed limit (in oil) |
Temp.limit |
μ Frictio Coef. |
Themal conductivity |
Linear expansion |
|||
|
Static |
Dynamic |
Oscillating |
Oil |
Dry |
(m/s) |
(℃) |
(W/MK) |
|||
|
SF-1X |
250 |
140 |
60 |
50 |
3.6 |
5.0 |
-195~270 |
0.04~0.20 |
13 |
11*10(-6)/k |
|
SF-1T |
250 |
140 |
60 |
60 |
4.3 |
10 |
-195~260 |
0.03~0.18 |
13 |
11*10(-6)/k |
|
SF-1P |
250 |
140 |
60 |
50 |
1.8 |
2.5 |
-195~270 |
0.04~0.20 |
13 |
11*10(-6)/k |
|
SF-1W |
250 |
140 |
60 |
50 |
3.6 |
5.0 |
-195~300 |
0.04~0.20 |
13 |
11*10(-6)/k |
|
SF-1B |
250 |
140 |
60 |
60 |
4.3 |
5.0 |
-195~270 |
0.04~0.18 |
18 |
21*10(-6)/k |
|
SF-1D |
250 |
140 |
60 |
50 |
3.8 |
3.0 |
-195~270 |
0.04~0.18 |
16 |
15*10(-6)/k |
|
SF-1S |
250 |
140 |
60 |
50 |
3.6 |
4.5 |
-195~270 |
0.04~0.20 |
16 |
15*10(-6)/k |
|
SP-1SS |
250 |
140 |
60 |
40 |
3.0 |
2.5 |
-195~270 |
0.04~0.25 |
13 |
15*10(-6)/k |
Application:
Automotive:
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.
Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and ramways, textile machinery, valves, etc.
DX SF-2 BUSHING (POM)
|
Material: 1. Steel + Bronze powder + POM + Pb 2. Steel + Bronze powder + POM - Normally Used |
|
Structure
|
POM with/without lead : 0.3-0.5mm |
|
Porous bronze : 0.2-0.3mm |
|
|
Steel backing : 0.4-2.2mm |
|
|
Tin-plating 0.005mm or copper plating 0.008mm |
Application:
Automotive:
Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.
Industrial:
Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.
BIMETAL BUSHING
|
Material: 1. Steel + Bronze alloy (CuPb10Sn10) + PTFE 2. Steel + Bronze alloy (CuPb10Sn10) 3. Steel + Bronze alloy (CuSn4Pb24) 4. Steel + Bronze alloy (CuPb24Sn) 5. Steel + Alloy stage (AlSn20Cu) 6. Steel + Bronze alloy (CuPb30) |
Application:
Mechanical handling and lifting equipment, hydraulic cylinders, agricultural equipment, off highway equipment.
Construction machines,chassis,apron wheels etc
.
BRONZE GRAPHITE BUSHING
Material:
1. CuZn25Al6Fe3Mn3 + Graphite
2. ZCuAl9Fe4Ni4Mn2 + Graphite
3. ZCuSn5AlPb5Zn5 + Graphite
4. ZCuSn10Zn2 + Graphite
5. HT250# Cast Iron + Graphite
6. CuZn25Al6Fe3Mn3 (High-stress Brass)
Application: solid brass bearing is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc
WRAPPED BRONZE BUSHING
Material:
1. CuSn8P / CuSn8
2. CuSn6.5P / CuSn6.5
3. CuZn31Si
4. Bronze(graphite inside)
5 . All kinds of brass,copper,bronze material
Industrial: Widely used in construction machinery, agricultural machinery and so on.
SINTERED BRONZE BUSHING MOTOR FAN BUSHING CAST IRON BEARING
|
Performance index |
Data |
|
Maximum load capacity |
150 N/mm2 |
|
Temperature range |
-60~+200 ℃ |
|
Maximum sliding speed |
2.5 m/s |
|
Alloy material |
CuSn6-6-3 |
|
Maximum PV value |
2.45 N/mm2*m/s |
OTHER SLIDE BEARING
| Packaging: | carton / pallet |
| Delivery: | In About 7-15 Days Based Upon Order Quantity |
1,We are produce high quality and low price good wear resistance bearing factory
2,Our sliding bush passed the ISO TS 16949 .
3,Under the guidance of Pursuit of the excellence & keep improving.
4,We will do our best to provide the quality products and professional sevices.
