Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Suifeng
-
Model Number:
-
XF-560
-
Voltage:
-
380v/220v/110v
-
Product name:
-

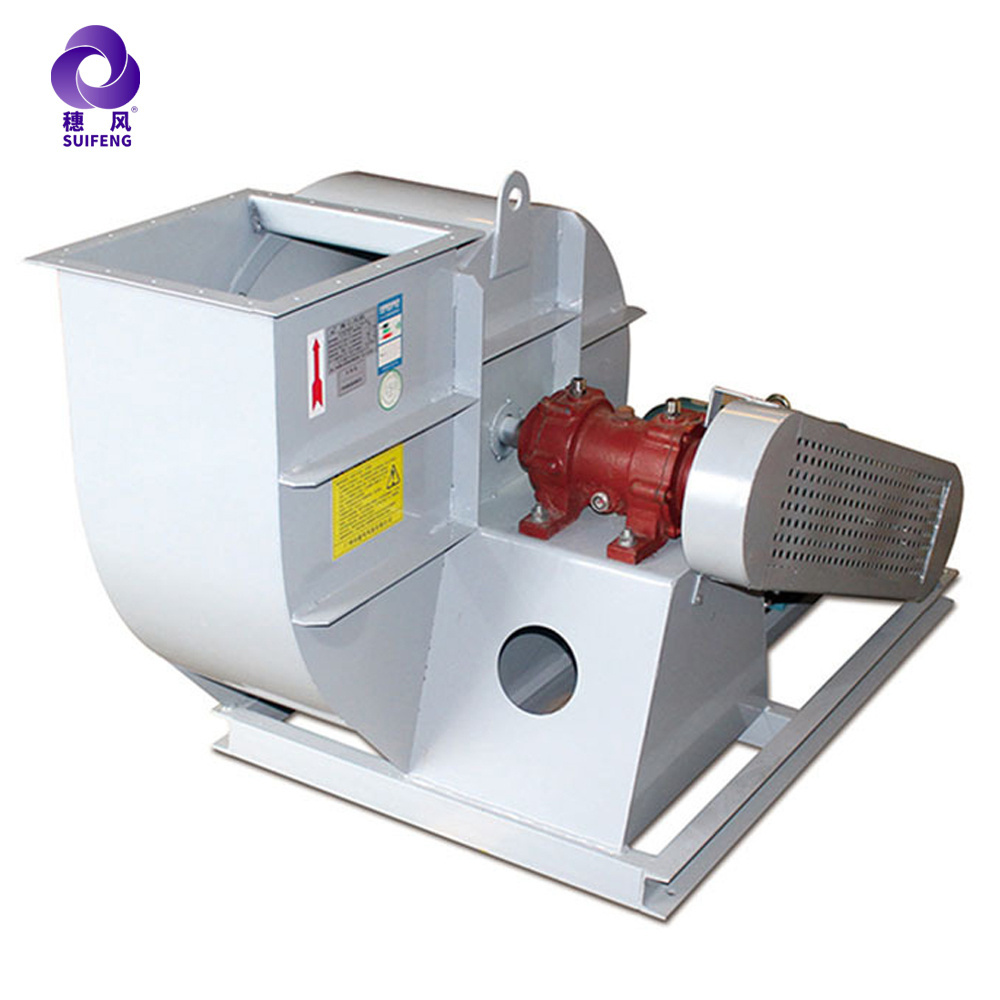

Suifeng Blower Vortex Roots Industrial Vacuum Backward Centrifugal Fan
-
Total pressure:
-
950-850 Pa
-
Hertz:
-
50Hz/60Hz
-
Water proof standard:
-
IP44/IP54/IP55
-
Material:
-
Stainless Steel 201,304,316,316L/iron
-
Insulation Level:
-
B/F/H
-
Motor:
-
frequency conversion/explosion proof
-
Certification:
-
CE/RoHS/ISO9001/CCC
-
Working temperature:
-
less than 600 ℃ degree Celsius
-
Size:
-
665*334*801mm
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Suifeng
-
Model Number:
-
XF-560
-
Voltage:
-
380v/220v/110v
-
Product name:
-
Suifeng Blower Vortex Roots Industrial Vacuum Backward Centrifugal Fan
-
Total pressure:
-
950-850 Pa
-
Hertz:
-
50Hz/60Hz
-
Water proof standard:
-
IP44/IP54/IP55
-
Material:
-
Stainless Steel 201,304,316,316L/iron
-
Insulation Level:
-
B/F/H
-
Motor:
-
frequency conversion/explosion proof
-
Certification:
-
CE/RoHS/ISO9001/CCC
-
Working temperature:
-
less than 600 ℃ degree Celsius
-
Size:
-
665*334*801mm
Backward Centrifugal Fan
**Material is option:Mile steel with powder caoting,201#,304#,316#,316L#,Stainless steel,Aluminum alloy.
**Size:280mm~1400mm
**All wheels will be test by dynastic balance.
Fan Hosing
**Material is option as below:
201#,304#,316#,316#,stainless steel,Mile steel with powder caoted
Air inlet
**The inlet is designed in line with aerodynamics,which is streamlined for better airflow movement and efficiency,reducing turbulence and sound.
Motor
**Motor:Popular or Explosion for option
**Electric: 110V/220V/380V/420V,50HZ/60HZ
**Driven:Direct
**Belt Protection:IP44,IP54,IP55
**Insulation Class:B Class,F Class,H Class
**Power:0.55~110KW
**Brand:PINXING,JIANGSHENG,ABB,SIMENS ect.
Air outlet & Fan angle
**Fan angle is adjustable according to customer need
Product description
** XFB series backward centrifugal fan is one of the most successful and efficient centrifugal fans designed in china.
** The connecting type fan is assembled on the same rigid frame of the fan, the drive group and the motor, thus
** The C type fan can be matched with an integral bearing seat, and the bearing is well lubricated and has a high service life . Equipped with water seat , it can work in
high temperature for a long time .
** Ctype fans can manufacture non-standard speed to realize nonstandard adjustment of parameters.
Product purpose
** Place of use : widely used in large and medium-sized factories and civil buildings , large squares , power plants , air treatment equipment, hot air circulation equipment.
** Conveying gas : non flammable , explosive and non corrosive gas medium .
** Air dust: gas does not allow sticky substances, dust and hard particles content of not more than 150mg/m3, if used to transport small particles of material, fan impeller
life will be shortened.
** Normal temperature : fan normal use temperature is not more than 80 degrees C , when there is a special use problems should contact my company technical department
Applications:
factory/building ventilation
air/gas transport
cooling
Generally used for ventilation, process gas transport. Widely used in many industries.
Cement plant, power plant , chemical, Metal smelting, water treatment, De-dusting system, Food, Paper making, industrial gas
Backward centrifugal fan (C type driving) technical parametric table
| Model | Revolution (r/min) | Volume (m 3 /h) | Full presure (Pa) | Power (KW) | working voltage(V) | hertz |
| 315C | 1800~3200 | 850~4600 | 425~1800 | 0.55 / 0.75 / 1.1 / 1.5 / 2.2 / 3 | 220V~380V | 50Hz~60Hz |
| 355C | 1600~3050 | 1000~4300 | 500~2050 | 0.55 / 0.75 / 1.1 / 1.5 / 2.2 / 3 / 4 | 220V~380V | 50Hz~60Hz |
| 400C | 1300~3000 | 2000~11100 | 200~2400 | 0.55 / 0.75 / 1.1 / 1.5 / 2.2 / 3 / 4 / 5.5 | 220V~380V | 50Hz~60Hz |
| 450C | 1200~2750 | 2200~13000 | 230~2600 | 0.55 / 0.75 / 1.1 / 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5 | 220V~380V | 50Hz~60Hz |
| 500C | 1100~2350 | 3100~15200 | 230~2250 | 0.75 / 1.1 / 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5 / 11 | 220V~380V | 50Hz~60Hz |
| 560C | 1000~2200 | 4000~19500 | 280~2550 | 1.1 / 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5 / 11 | 220V~380V | 50Hz~60Hz |
| 600C | 800~2240 | 4237~23722 | 200~2485 | 1.1 / 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5 / 11 / 15 | 220V~380V | 50Hz~60Hz |
| 630C | 900~2000 | 5100~26500 | 290~2700 | 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5 / 11 / 15 | 220V~380V | 50Hz~60Hz |
| 710C | 800~1800 | 6000~31100 | 300~2800 | 2.2 / 3 / 4 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22 | 220V~380V | 50Hz~60Hz |
| 800C | 700~1600 | 6500~35300 | 320~2800 | 2.2 / 3 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22 | 220V~380V | 50Hz~60Hz |
| 900C | 600~1400 | 10000~49200 | 270~2800 | 2.2 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22 / 30 | 220V~380V | 50Hz~60Hz |
| 1000C | 550~1250 | 16000~67000 | 200~2600 | 4 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22 / 30 / 37 | 220V~380V | 50Hz~60Hz |
| 1120C | 500~1150 | 16000~78000 | 280~2950 | 4 / 7.5 / 11 / 15 / 18.5 / 22 / 30 / 37 / 45 | 220V~380V | 50Hz~60Hz |
| 1250C | 450~960 | 20000~87000 | 330~2500 | 5.5 / 7.5 / 11 / 15 / 18.5 / 22 / 30 / 37 | 220V~380V | 50Hz~60Hz |
| 1400C | 400~860 | 29000~126000 | 300~2650 | 7.5 / 11 / 15 / 18.5 / 22 / 30 / 45 / 55 / 75 | 220V~380V | 50Hz~60Hz |
