12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm
12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm
12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm
12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm
12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm
12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm
12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm
12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm

12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm

FOB Reference Price: Get Latest Price
≥1 Sets
US $130
≥500 Sets
US $125
≥1000 Sets
US $115
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power:
1.2-3.6W
Warranty:
12 Months
Place of Origin:
Guangdong
Brand Name:
OEM
Model Number:
BAT-907-L4S
Detecting distance:
0-1.5m
working temperature:
- 40-+80 degree
sensors number:
4 side sensors
Camera support:
cvbs camera
application:
Truck,bus,heavy duty vehicles
Waterproof:
IP67
Sensor type:
Digital sensor
Sensor size:
25mm
Left Alarm Type:
caution,vehicle turning left
MDVR support:
Yes

Quick Details

Car Fitment:
Volvo Heavy Duty - Europe Heavy Duty
View Angle:
80°
Function:
Waterproof, Side detection
Power:
1.2-3.6W
Warranty:
12 Months
Place of Origin:
Guangdong
Brand Name:
OEM
Model Number:
BAT-907-L4S
Detecting distance:
0-1.5m
working temperature:
- 40-+80 degree
sensors number:
4 side sensors
Camera support:
cvbs camera
application:
Truck,bus,heavy duty vehicles
Waterproof:
IP67
Sensor type:
Digital sensor
Sensor size:
25mm
Left Alarm Type:
caution,vehicle turning left
MDVR support:
Yes

12V-24V dc Vehicle proximity sensor camera warning and alert system with custom warning alarm

Product Description

We have three version for DVS kit.
  • BAT903-L4S DVS kit (AHD version) ----(Can't compatible with MDVR) (With XFD 1pc left side AHD camera and 7" AHD monitor,support sensor UI overlay )

  • BAT907-L4S DVS kit(CVBS version)---- (Can compatible with MDVR,The solution suit for customers who have MDVR and cameras already,support sensor& camera UI overlay)

  • BAT908-L4S Side scan Sensors with three color traffic light LED

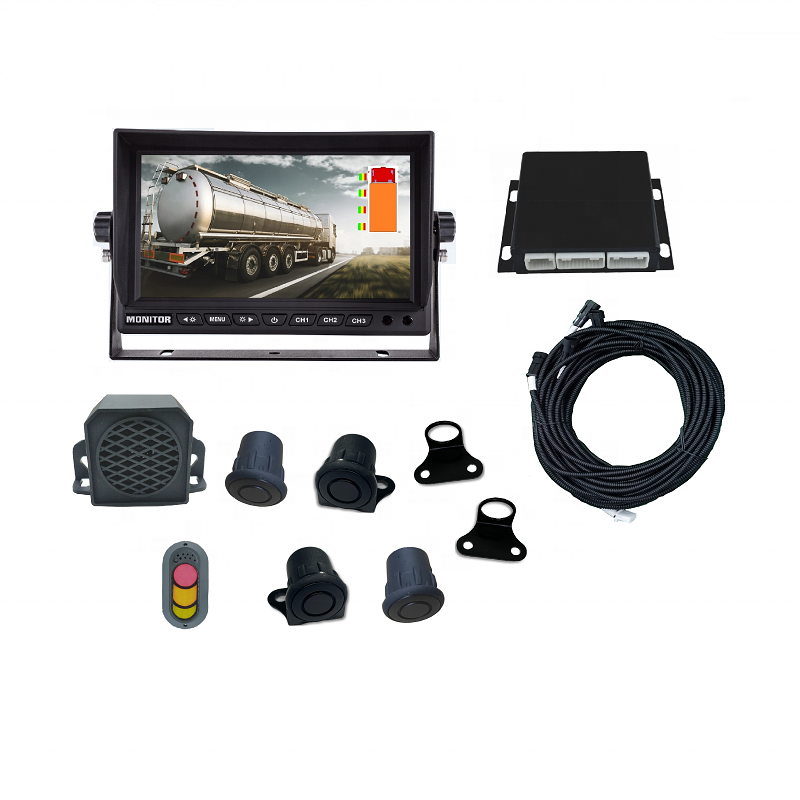

Accessories of a whole set

·ECU X 1pcs
·Proximity Sensors X 4pcs (1-16pcs
is optional)
·Left-turn audible warning alarm X
1pcs (3 channel alarm)
·GPS X 1pcs
·Harness Cables
·Bracket x 4pcs
·Blind Spot indicator light x1pc

Features:

1. 4pcs left side sensors
2. Added visibility and increased protection on the road in the congested urban environment.
3. Giving audible and visual alerts,warning the driver of nearby cyclists,pedestrians and other vulnerable road users,especially in vehicle blind spots.

4. The external alarm is controlled by our MCU.It will automatically disable the external sounder when speed over 20mph. And when Hazard flashers are used the external sounder should not operate. Moreover,it automatically not operate between 23:00 and 7:00

Technical specification

Operating voltage 12-36V
Rate current <150mA
Furthest detecting distance 1.5m
Nearest display distance 0.4m
Detection reaction time <100ms
Working temperture - 40-+80 degree
System communication CANBUS;LINBUS;UART
Data transmission distance The wire length of main unit to display mor than 20m
Features Strong anti-interference capability
