Quick Details
-
Main Material:
-
Steel
-
Product name:
-

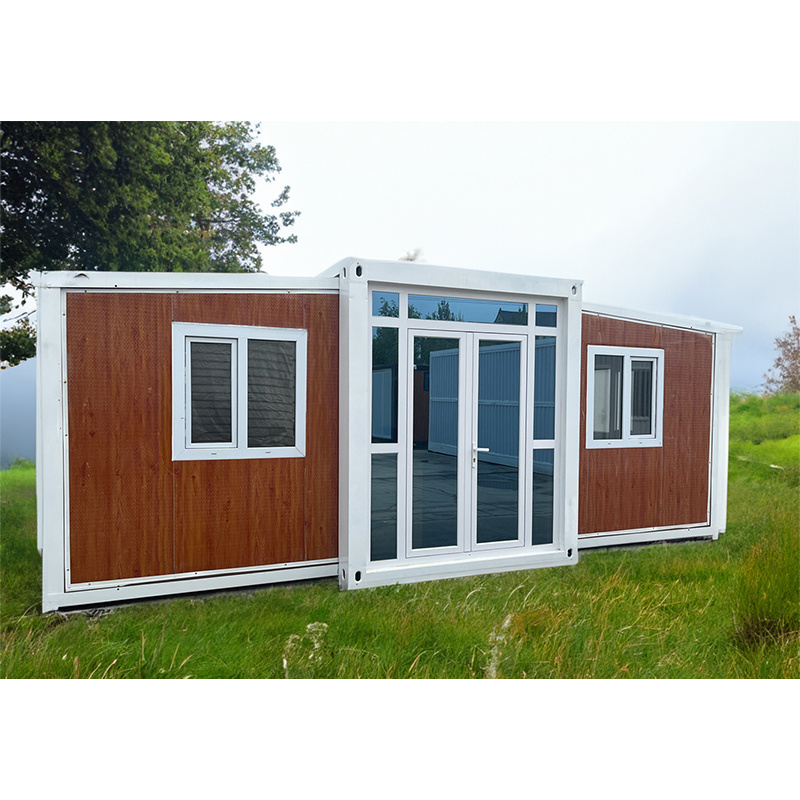

Expandable Folding Container House Home Office
-
Certification:
-
CE Certification
-
Customized Color:
-
Acceptable
-
Weight:
-
2.5 ton
-
Type:
-
Prefabricated Modular Houses
-
Keyword:
-
Folding Modular Houses
-
Size:
-
6320*5900*2480mm
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Kowin House
-
Color:
-
White,Red,Orange,Yellow,others
-
Main Material:
-
Steel
-
Product name:
-
Expandable Folding Container House Home Office
-
Certification:
-
CE Certification
-
Customized Color:
-
Acceptable
-
Weight:
-
2.5 ton
-
Type:
-
Prefabricated Modular Houses
-
Keyword:
-
Folding Modular Houses
-
Size:
-
6320*5900*2480mm
Products Description
|
20FT Expandable Container House Technical Parameters and Quotation
|
|
|
||
|
Product size |
External size
|
W6300*L5900*H2480
|
||
|
|
Internal size
|
W6140*L5640*H2240
|
||
|
|
Folding size
|
W2200*L5900*H2480
|
||
|
|
Weight（kg）
|
2500
|
||
|
Frame structure |
Top side beam
|
80*100*2.5mmQ235B
|
||
|
|
Middle bottom side beam
|
80*100*2.5mmQ235B
|
||
|
|
End side beam
|
T1.5mmQ235B
|
||
|
|
Neutral column
|
150*210*2mmQ235B
|
||
|
|
Side wall frame
|
P-Shaped Steel 40*80*1.5mmQ235B
|
||
|
|
Sub frame
|
40*80*1.5mmQ235B
|
||
|
|
Hanging head
|
150*210*160*4mmQ235B
|
||
|
|
Folding hinge
|
Galvanized hinge13mm
|
||
|
|
Protective coating for integral frame
|
Electrostatic spray/ Plain plastic powder
|
||
|
|
Middle cabinet top and bottom
|
80*100*2.5 thick square tube
|
||
|
|
Side cabinet top and bottom
|
40*80*1.5thick square tube/80*80*1.5thick square tube for floor joint
|
||
|
Container roof
|
External roof panel
|
50 Eps()
|
||
|
|
Internal ceiling
|
V200 Internal ceiling
|
||
|
Flank
|
Middle top insulation
|
50 Eps()
|
||
|
|
Flank、Front and rear wall panels
|
75mm Basalt rock wool (unit weight 70kg )color steel,color steel roll 0.35mm
|
||
|
|
Internal partition
|
50 Eps()
|
||
|
|
Internal Toilet
|
About 1700*1400(adjust)
|
||
|
Floor |
Middle floor
|
Cement Floor 18mm
|
||
|
|
Side floor
|
Bamboo Wood Flooring 18mm
|
||
|
Electrical System
|
Refer to customer’s standard
|
|
||
|
Ordinary anti-theft door |
Bridge-cutoff Aluminum alloy door(white frame ,blue-coated glass)
|
|
||
|
Window |
Bridge-cutoff Aluminum alloy door(white frame ,blue-coated glass)
|
|
||
|
Cabinet
|
Have water pipes and drainage pipes
|
|
||
|
Type
|
With 2 bedrooms;1 living room ;1 bathroom;kitchen
|
|
||
|
Toilet
|
Basin with Cabinet;mirror;toilet;showering stall
|
|
||
