Quick Details
-
Model Number:
-
PG-6
-
Pressure:
-
0~600bar
-
Medium:
-
gas,liquid ,oil,steam
-
Dial size:
-
60mm, 100mm, 150mm
-
Temp:
-
-40-70°C(customized)
-
Material:
-
SS 304, SS 316
-
Connectiion:
-
M20*1.5, G 1/2, 1/2 NPT,Flange
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BINGO
-
Model Number:
-
PG-6
-
Pressure:
-
0~600bar
-
Medium:
-
gas,liquid ,oil,steam
-
Dial size:
-
60mm, 100mm, 150mm
-
Temp:
-
-40-70°C(customized)
-
Material:
-
SS 304, SS 316
-
Connectiion:
-
M20*1.5, G 1/2, 1/2 NPT,Flange
Product Description
Oil Pressure Gauge
1.The material of the main parts are SS304,SS316.
2.The gauge is suitable for strongly corrosive gaseous condition
3.Widely used in industries, including chemical, metallurgy, petrochemical, chemical fiber, electric power and so on.
4.All stainless steel filled pressure gauge is suitable for strong vibrancy condition
5.It owns high accuracy and stableness for sharply pulsation medium and long working life
6.With silicon oil filling can protect itself from sharp vibrancy condition and pulsation of media.
2.The gauge is suitable for strongly corrosive gaseous condition
3.Widely used in industries, including chemical, metallurgy, petrochemical, chemical fiber, electric power and so on.
4.All stainless steel filled pressure gauge is suitable for strong vibrancy condition
5.It owns high accuracy and stableness for sharply pulsation medium and long working life
6.With silicon oil filling can protect itself from sharp vibrancy condition and pulsation of media.
Specification
|
Case
|
stainless steel
|
|
Movement
|
stainless steel, brass
|
|
Dial diameter
|
60mm, 100mm, 150mm
|
|
Dial and pointer
|
aluminum,brass
|
|
Dial display
|
single and dual scale (psi, kpa,mpa, bar, kg/cm2 available)
|
|
Connection size
|
1/8 inches
|
|
Connector
|
stainless steel
|
|
Connection thread
|
NPT, BSP (G, PF), BSPT (ZG, PT)
|
|
Connection mounting
|
bottom, top, left, right and center back
|
|
Socket
|
stainless steel, brass
|
|
Window
|
polycarbonate, glass, tempered glass, safety glass
|
|
Pressure range
|
- 0.1 - 0 -60Mpa
|
|
Accuracy range
|
1%, 1.6%, 2.5% full scale
|
|
Working temperature
|
-20℃- 70℃
|
|
Filled medium
|
glycerine,silicone
|
|
filling cap
|
neoprene or silica gel
|

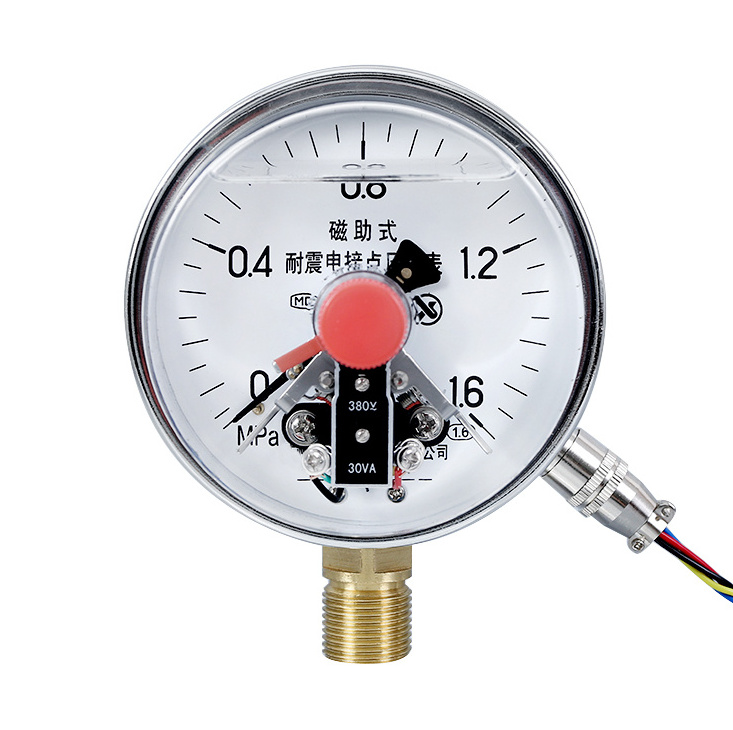

Product pictures
Model selection
DPG-100MM-60MPA
DPGT-1-5000Pa
DPGT-1
MPG-2
PG-001
PG-03
PG-4L
PPG-S
SPGO-A
SSPG-35bar -100mm-ND
TG-100MM-60-ND-R
VPG-1
CTG52
PG-A2
PG-4L
PG-0~3
FAQ
1.12 months warranty for most of our products;
2. We will arrange delivery of the goods on time;
3. Within the warranty period, we will bear all the quality problem of our products;
4. Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5. Without any problem, we will gain the feedbacks of our products to help improve better products.
2. We will arrange delivery of the goods on time;
3. Within the warranty period, we will bear all the quality problem of our products;
4. Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5. Without any problem, we will gain the feedbacks of our products to help improve better products.
