Quick Details
-
Model Number:
-
DR130
-
Measuring range:
-
0-1500μm
-
The thinnest matrix:
-
0.4mm
-
Measurement accuracy:
-
±(3%H+1.5μm)
-
Principle of measurement:
-
magnetism and eddy current
-
Resolution ratio:
-
0.1μm /1μm
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DONGRU
-
Model Number:
-
DR130
-
Measuring range:
-
0-1500μm
-
The thinnest matrix:
-
0.4mm
-
Measurement accuracy:
-
±(3%H+1.5μm)
-
Principle of measurement:
-
magnetism and eddy current
-
Resolution ratio:
-
0.1μm /1μm
Product Overview

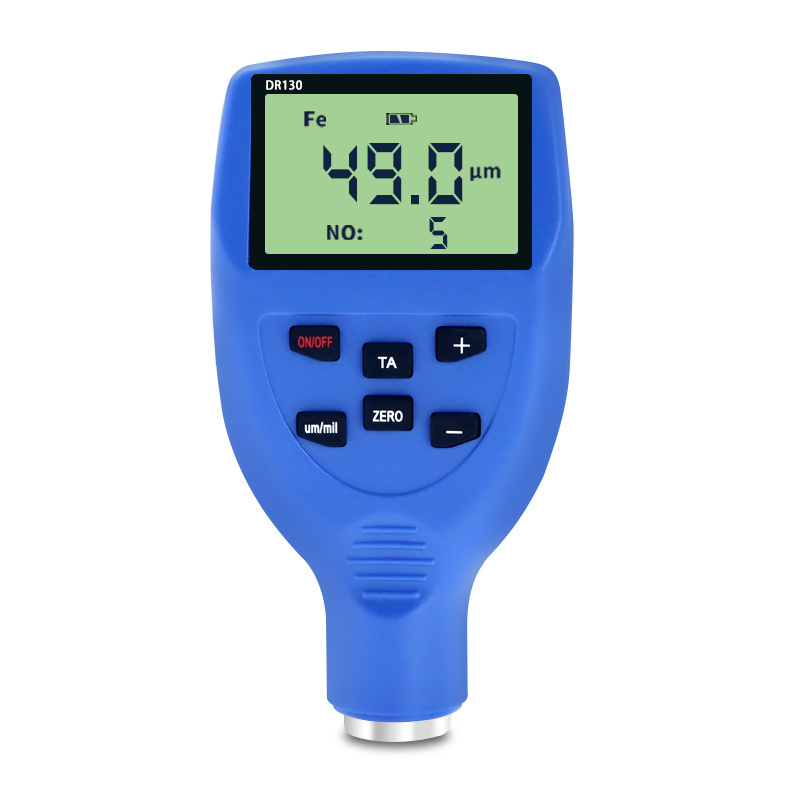

Coating thickness gauge
DR130 Coating thickness gauge is a professional measurement of metal material surface coating layer thickness of the major object of non-destructive testing equipment. According to the different metal substrates using different measuring methods. A、Magnetic thickness method, can be nondestructively measuring magnetic metal matrix ( such as: steel, iron, nickel ) on non magnetic coatings thickness ( such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder coating, enamel, etc.) B.eddy current thickness method, can be nondestructively measuring non-magnetic metal substrate ( such as: aluminum, copper, stainless steel ) of non-conductive coating thickness ( such as: paint, powder, plastic, rubber, enamel, enamel, coating etc.)
PRODUCT SPECIFICATIONS
|
Measuring range
|
0-1500um
|
|
Using environment
|
0°C-50°C and 20%RH-90%RH,not strong magneticplace.
|
|
the thinnest matrix
|
0.4mm
|
|
measurement accuracy
|
±(3%H+1.5um)
|
|
resolution ratio
|
o.1um /1um
|
|
minimum curvature
|
Convex 5mm;concave25mm
|
|
minimum matrix
|
18*15mm
|
|
power
|
three (7) alkaline battery
|
|
size
|
126mm*64mm*28mm
|
|
weight
|
106G (excluding battery)
|
FAQ
Q1：
Are you a factory or trading company?
A1：
We are a factory.
Q1：
MOQ?
A1：
We don't have MOQ limit, you can order any quantity you want. If you need scales with your specification, logo, packing,etc,please negotiate with us.
Q1：
Can I add my logo on the machine?
A1：
Yes,OEM is available for us.But you should send us the Trademark authorization letter.
Q1：
Do you have inspection procedures for these machine?
A1：
100% self-inspection before packing
Q1：
Payment Method?
A1：
L/C at sight, T/T, Western Union and Paypal are all available. 30% deposit T/T in advance, rest against the Shipping Doc. 100% T/T in advance for sample order.
Q1：
Shipping?
A1：
a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days), port of loading: Guang zhou
d. By domestic logistics to your forwarder. (2-3days)
