Quick Details
-
Model Number:
-
2016
-
Place of Origin:
-
Shandong, China
-
Usage:
-
for battery materials
-
Hardness:
-
Soft
-
Transparency:
-
Opaque
-
Thickness:
-
113um
-
Size:
-
48*29*30cm
-
Feature:
-
al laminated film
-
Processing Type:
-
Multiple Extrusion
-
Style:
-
Cathode material
-
Product name:
-
NMC
Quick Details
-
Brand Name:
-
Gelon
-
Certification:
-
ce
-
Material:
-
Stainless steel, Polyester
-
Model Number:
-
2016
-
Place of Origin:
-
Shandong, China
-
Usage:
-
for battery materials
-
Hardness:
-
Soft
-
Transparency:
-
Opaque
-
Thickness:
-
113um
-
Size:
-
48*29*30cm
-
Feature:
-
al laminated film
-
Processing Type:
-
Multiple Extrusion
-
Style:
-
Cathode material
-
Product name:
-
NMC
Product Description

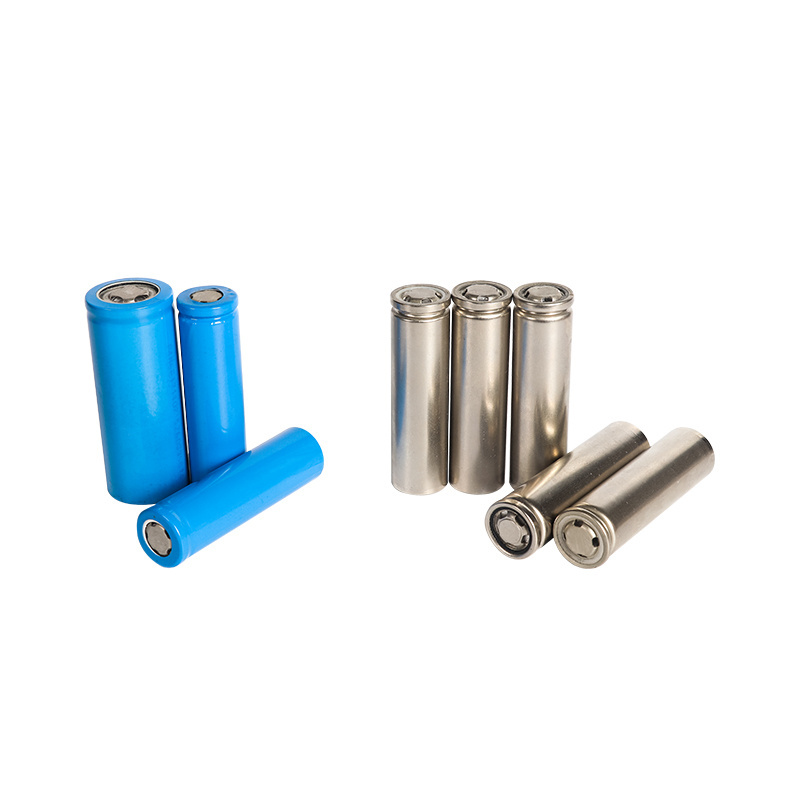

package:100set/package included Cylinder cell case, Cap and up/down spacer
Materials：
Case are made of imported steel strip SPCC，The inner and outer surfaces are nickel-plated, coating thickness: the coatingthickness
in the middle of the outer wall is 2-5um；
Cap are made of Nickel plated steel，without PTC；
Seal O-ring are made of PBT or PP；
Insulating gasket are made of PET.
Materials：
Case are made of imported steel strip SPCC，The inner and outer surfaces are nickel-plated, coating thickness: the coatingthickness
in the middle of the outer wall is 2-5um；
Cap are made of Nickel plated steel，without PTC；
Seal O-ring are made of PBT or PP；
Insulating gasket are made of PET.
|
Model
|
Case (OD*H)
|
Cap
|
Tolerances
|
|
18650
|
18.15*68.25
|
17.65*4.35
|
±0.03-0.2mm
|
|
21700
|
21.1*74.3
|
20.95*4.25
|
|
|
26650
|
25.4*26*67.8
|
25.3*4.45
|
|
|
32700
|
31.5*32.2*72.5
|
31.25*5.15
|
|
|
14500
|
13.4*13.9*50.5
|
13.3*3.45
|
|
|
|
13.7*14.1*51.6
|
13.5*3.85 with PTC
|
|
Manufacturing Technique
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
