Quick Details
-
Brand:
-
YF
-
Application:
-
Automotive, Aviation
-
Color:
-
Silver
-
Material:
-
Metal
-
Product name:
-

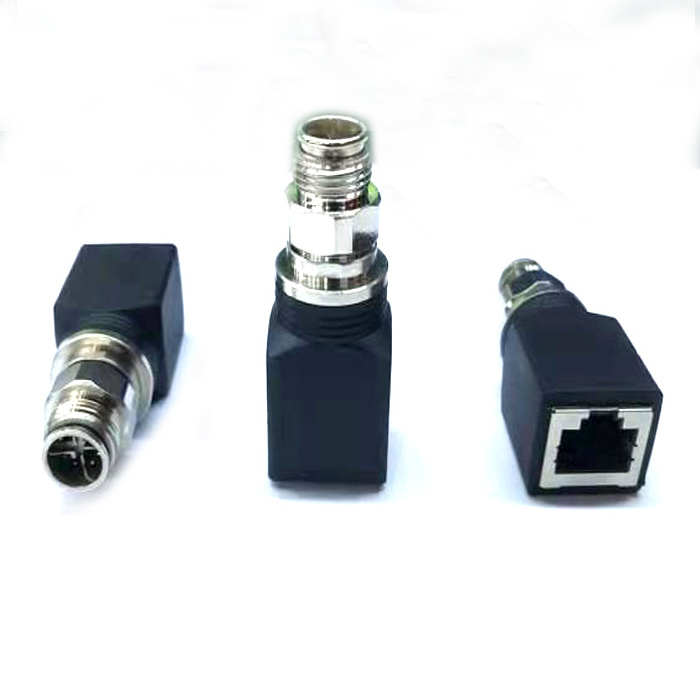

M12 X Code TO RJ45 Adapter
-
Insert material:
-
PA66+30%GF
-
Insulation:
-
PA
-
IP code:
-
67-68
-
Shielding Case:
-
Brass Nickel Plated
-
Cross Shielded:
-
Zinc Aluminum Alloy
-
Rated Voltage:
-
48V
-
Rated Current:
-
2 A
-
Temperature Range:
-
-40~+105 C
-
MOQ:
-
100
Quick Details
-
Model Number:
-
YF00066
-
Type:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand:
-
YF
-
Application:
-
Automotive, Aviation
-
Color:
-
Silver
-
Material:
-
Metal
-
Product name:
-
M12 X Code TO RJ45 Adapter
-
Insert material:
-
PA66+30%GF
-
Insulation:
-
PA
-
IP code:
-
67-68
-
Shielding Case:
-
Brass Nickel Plated
-
Cross Shielded:
-
Zinc Aluminum Alloy
-
Rated Voltage:
-
48V
-
Rated Current:
-
2 A
-
Temperature Range:
-
-40~+105 C
-
MOQ:
-
100
M12 panel mount connector solutions for enclosure, panel and PCB applications. These M12 connectors are offered in both male and female versions and are rated to IP67. These connectors are designed for both front mounting and rear mounting with PG9 panel locking thread.
1.3, 4, 5, 8, 12 poles are available
2.Operating voltage 250V-AC/ 60V/ 30V, current 4A / 1.5A
3.
Protection degree IP67
4.
Temperature range: -40°C ~ + 105°C
5.
UL94-V0 flame retardant degree
6. Ground Pin available for option
Electrical & Mechanical data
| Standard | IEC 61076-2-101 |
| Orientation | Angled |
| Overmold/ Shell | Metal shell |
| Connector contacts | Brass with gold plated |
| Ambient temperature | -40°C ~ + 105°C |
| Insulation resistance | ≥100 MΩ |
| Contacts resistance | ≤ 5 mΩ |
| Wire Termination | PCB Soldering |
| Connection type | Panel mount, Rear fastened |
| Insert/ Housing | NYLON66 + GF |
| Rated current | 2 A |
| Rated voltage | 250V 60V 30V |
| Coupling nut/screw | Brass with nickel plated screw |
| Sealing | Epoxy resin |
| Conductor diameter Φ | 1.0mm 0.8mm 0.6mm |
| IP rating | IP66-IP68 |
Application:
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
1 . Generally for Blueendless brand factory carton packaging
2. Can accept customer OEM bulk custom packaging design
+
