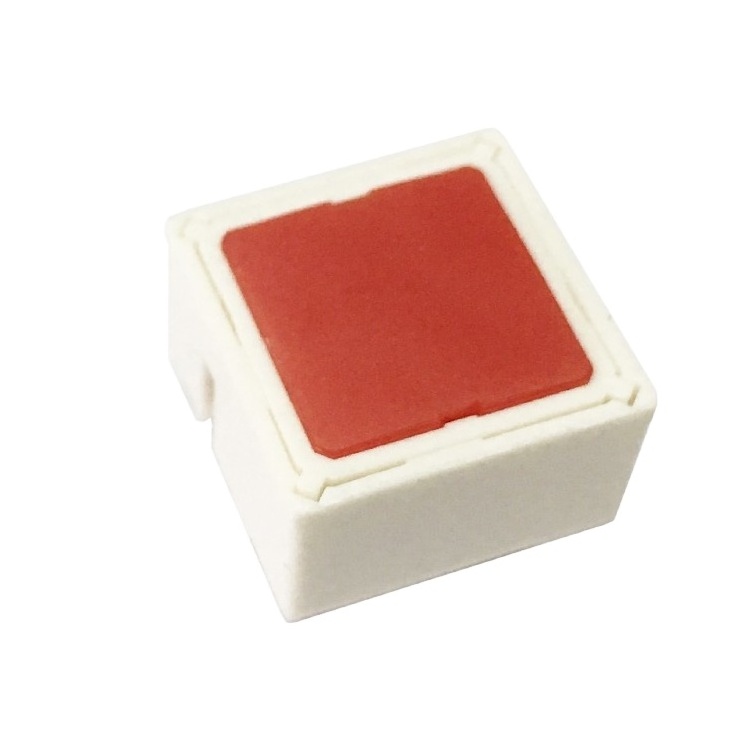

15x15mm Illuminated Tact Switch with White LED Alternative Rafi

15x15mm Illuminated Tact Switch with White LED Alternative Rafi

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: switech, switech

Model Number:: TS15I-097C-W-W00W, TS15I-097C-W-W00W

Product name:: 5x15mm Illuminated Tact Switch with White LED Alternative Rafi

Product type:: TS15I-097C-W-W00W

Contact Resistant:: 100mΩ MAX

Insulation Resistance:: 1000MΩ min/500V

Color:: white

Certification:: ce

Quick Details

Protection Level:: IP40

Max. Current:: 100mA

Max. Voltage:: 500V

Place of Origin:: Jiangsu, China

Brand Name:: switech, switech

Model Number:: TS15I-097C-W-W00W, TS15I-097C-W-W00W

Product name:: 5x15mm Illuminated Tact Switch with White LED Alternative Rafi

Product type:: TS15I-097C-W-W00W

Contact Resistant:: 100mΩ MAX

Insulation Resistance:: 1000MΩ min/500V

Color:: white

Certification:: ce

Applications

Audio Products : MP3,MP4,DVD. Audio
Communication Products : mobile phone, router
Home Appliances : TV set, microwave oven, electric rice cooker,washer, air-condition
Office Appliances : Photocopier, printer, shredder

Toys: Juvenile automobile, remote control aircraft

Product Description

Specification & Drawing
Name	5x15mm Illuminated Tact Switch with White LED Alternative Rafi
Model	TS15I-097C-W-W00W
Rating	500V/DC 100mA
Contact resistance	100mΩ MAX
Insulation resistance	1000MΩ MIN
peration force	3000±75gf
Total travel	0.25±0.10mm
Operation life	10,000cycles
Function	momentary
Terminal form	SMT
Solder ability	245±5℃for2±0.5s
Operation temperature	-25℃ + 70℃
Storage temperature	-35℃ + 80℃

Material & Color
Housing	PBT
Actuator	ABS
Contact	Stainless Au plated
Terminals	Brass Au plated
Terminal seal	Epoxy

Packing & Delivery

Samples

For avoiding samples damage during transit, inflatable antistatic bag can keep switches integrated.

Standard Packing

Every single cell keeps a switch. There is no need to worry about the crush or water damage at all.

Logistics

Choose whatever express you favor

Detailed Images

About Us

13 Safty Certifications

Help your products to export worldwide

Our Exhibition

Why Choose Us

Good Reputation

we cooperate with many famous overseas brand, such as Whirlpool, Siemens, Electrolux, Panasonic, Eaton, Emerson etc .

High Quality

• Well-organized and efficient production line with advanced machines creates high quality which helps us be geard to international standards.

• Various kinds of specifications can be customized.

• 100% pre-test for each tact switch.

Competitive Price

We are a factory, we are the source. Switches will be sent to you directly without any distributor, so our price is very competitive.

Excellent Service

• We can provide samples within a week

• We can return the value of the problem goods,if it is our quality factor.

FAQ

Q1: When can I get the quotation ?

A: We are online all day, so you can get quotation within 24h.

Q2: Can I get free samples?

A: Yes, after confirming the price, we can provide 5-20 free samples.

Q3: When can I get the samples?

A: It depends on the express, generally 3-10 days.

Q4: Can you accept small order?

A: Yes, we will try our best to help you with your business.

Q5: What’s the lead time of mass production?

A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
