1. Perfect quality.
2. High Precise
3. Convenient to maintain and operate
4. Corrosion resisting
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220 V
-
Dimension(L*W*H):
-
varies
-
Weight:
-
35 KG
-
Groove Capacity:
-
3 L
-
Rotary Speed Of Impeller:
-
0-2800 r/min
-
Impeller Diameter:
-
70 mm
-
Feeding size:
-
0-0.25 mm
-
heater power:
-
300w
Quick Details
-
Production Capacity:
-
1000 sets
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengzhong
-
Voltage:
-
220 V
-
Dimension(L*W*H):
-
varies
-
Weight:
-
35 KG
-
Groove Capacity:
-
3 L
-
Rotary Speed Of Impeller:
-
0-2800 r/min
-
Impeller Diameter:
-
70 mm
-
Feeding size:
-
0-0.25 mm
-
heater power:
-
300w
Product Overview

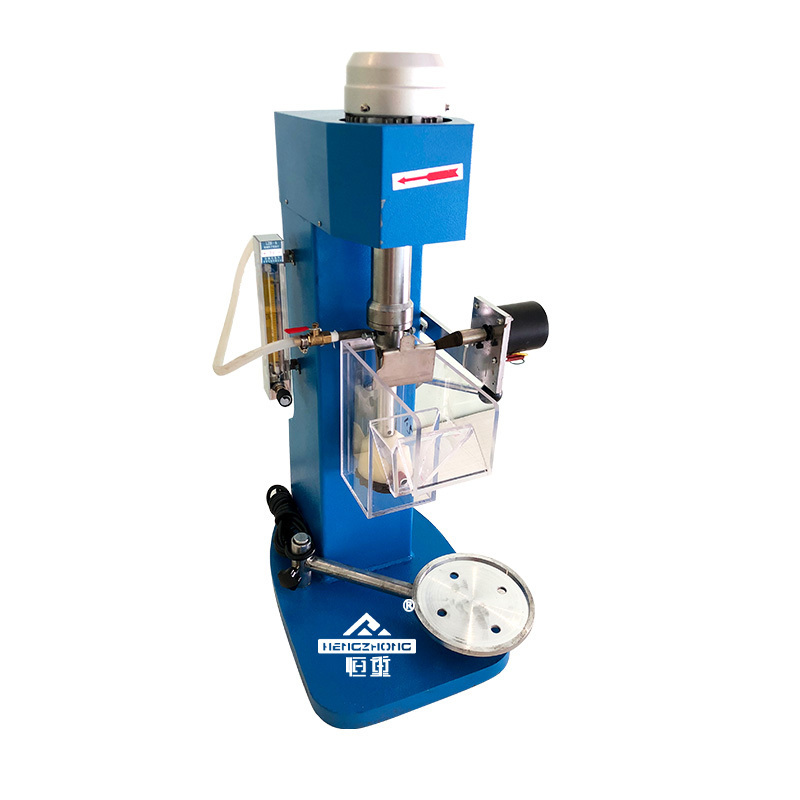

XFD single cell lab flotation machine
The XFD series single cell lab flotation machine have three types: XFDI, XFDII, XFDIII.
XFDI small flotation cell: the ordinary simple type, the impeller rotary speed can not be adjustable, and without LED display screen, Applied in laboratory flotation of a small amount of sample ore in such areas as geology,metallurgy,building material and chemical industry.
XFDII small flotation cell: it is the updated version of XFD I, the impeller rotary speed can be adjustable as your needs, but with LED display screen, without heater device, can not control temperature of the minerals.
Applied in stirring,scrubbing,separation and selection of small amounts of sample ore om labs of research institutes and mining bodies involving geology,metallurgy,building materials and chemical industries.
XFDIII small flotation cell: It is the highest grade type. It uses inverter technology, variable speed impeller, digital display, and also change from the outside air to intake inflated with precise adjusted, clear and stable display.
FEATURES AT A GLANCE
XFD I
XFD II
XFD III
PRODUCT SPECIFICATIONS
|
Technical parameters
|
Unit
|
Models
|
|
|
|
|
|
|||||
|
|
|
XFDIII-0.5
|
XFDIII-0.75
|
XFDIII-1
|
XFDIII-1.5
|
XFDIII-3
|
XFDIII-8
|
|||||
|
Tank capacity
|
L
|
0.5
|
0.75
|
1
|
1.5
|
3
|
8
|
|||||
|
Impeller diameter
|
mm
|
Φ45
|
Φ45
|
Φ55
|
Φ60
|
Φ70℃
|
Φ80
|
|||||
|
Rotary speed of impeller
|
r/min
|
0-2800
|
|
|
|
|
0-1400
|
|||||
|
|
|
Continuously Variable Transmission）
|
|
|
|
|
|
|||||
|
Rotary speed of scraper
|
r/min
|
15-30
|
15-30
|
15-30
|
15-30
|
15-30
|
15-30
|
|||||
|
|
mm
|
≤0.25
|
≤0.25
|
≤0.25
|
≤0.25
|
≤0.25
|
≤0.25
|
|||||
|
Heater power
|
W
|
300
|
|
|
|
|
|
|||||
|
Temperature regulation range
|
Celsius
|
50-95 degrees Celsius
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|||||
|
Motor
|
W
|
120
|
|
|
|
|
370
|
|||||
|
Voltage
|
V
|
220
|
220
|
220
|
220
|
220
|
220
|
|||||
|
Weight
|
kg
|
30
|
30
|
35
|
43
|
50
|
80
|
|||||
|
Dimension
|
L
|
440
|
440
|
440
|
440
|
440
|
730
|
|||||
|
|
W
|
320
|
320
|
320
|
320
|
320
|
450
|
|||||
|
|
H
|
750
|
750
|
840
|
840
|
890
|
900
|
|||||
Machine Details
Recommend Products
Packing & Shipment
Packing and Delivery
1. All the goods will be delivered in 15-30 working days after receiving payment.
2. The machine will be packed in an export container.
3. Motors and small parts will be packed in new strong wooden cases that are suitable for long-distance ocean transportation.
4. We promise that your goods will be shipped to your destination timely and safely.
