Quick Details
-
Warranty:
-
1YEARS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZSZLD
-
Model Number:
-
H3-D1
-
Torque:
-
100N-1200N
-
Certification:
-
ce
Quick Details
-
Speed(RPM):
-
4000 RPM
-
Continuous Current(A):
-
0.3A-0.8A
-
Efficiency:
-
Other
-
Warranty:
-
1YEARS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZSZLD
-
Model Number:
-
H3-D1
-
Torque:
-
100N-1200N
-
Certification:
-
ce
|

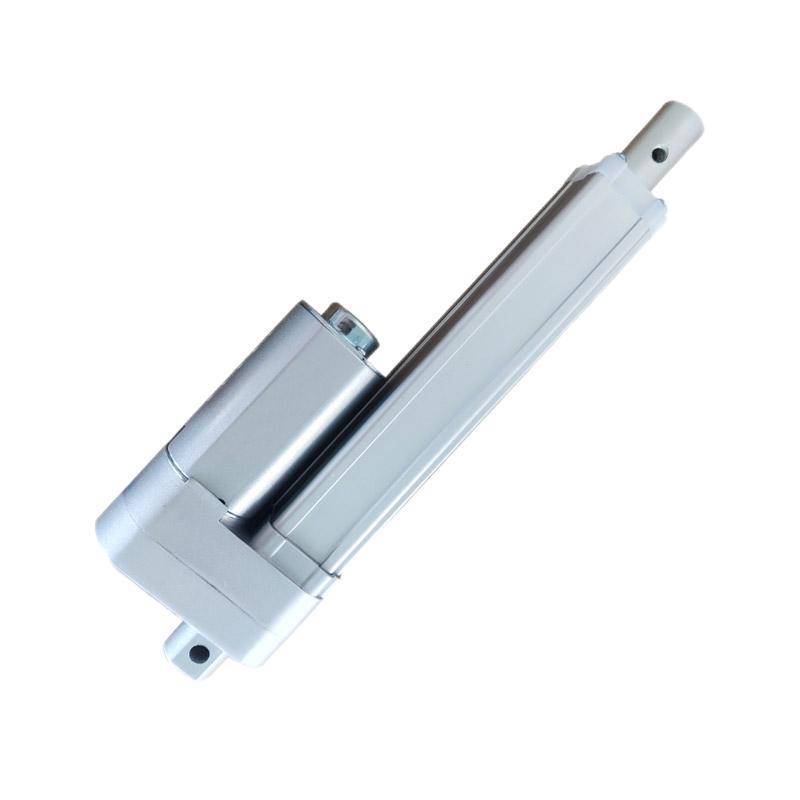

Linear Actuator
|
Product Description
ZLD-H3-D1 linear actuator DC brush motor, large torque, low noise, widely used in medical bed, furniture, sofa, electric chair, doors and Windows, TV cabinets, cabinets, lifting platform, etc.
|
Voltage
|
12/24v 36V/46V (Customizable)
|
|
Thrust
|
Max 1200N (Customizable)
|
|
Speed
|
5-60mm/s (Customizable)
|
|
Stroke
|
16mm-1000mm (Customizable)
|
|
Operat Noise
|
45DB
|
|
Limit Switch
|
Built-in
|
|
Duty Cycle
|
15%
|
|
Protection Class
|
IP54
|
|
Operation temperature
|
0°C+65°C
|
|
S<300MM
|
L=110MM+S（Stroke）
|
|
S≥300MM
|
L=140MM+S（Stroke）
|
