Quick Details
-
Brand Name:
-
Wisecoco
-
LCD Type:
-
5.5 inch
-
Luminance:
-
500 cd/m2
-
Pixel Format:
-
2160(RG/BR/GB)*3840 [UHD]
-
Interface Type:
-
60 pins MIPI (2 ch, 4 data lanes) , Connector
-
View Direction:
-
Symmetry
-
Refresh Rate:
-
60Hz
-
Storage Temperature::
-
-55 ~ 125 °C
-
Operating Temperature::
-
-40 ~ 85°C
Quick Details
-
Type:
-
TFT
-
Display Size:
-
5.5 inch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wisecoco
-
LCD Type:
-
5.5 inch
-
Luminance:
-
500 cd/m2
-
Pixel Format:
-
2160(RG/BR/GB)*3840 [UHD]
-
Interface Type:
-
60 pins MIPI (2 ch, 4 data lanes) , Connector
-
View Direction:
-
Symmetry
-
Refresh Rate:
-
60Hz
-
Storage Temperature::
-
-55 ~ 125 °C
-
Operating Temperature::
-
-40 ~ 85°C
Production Description

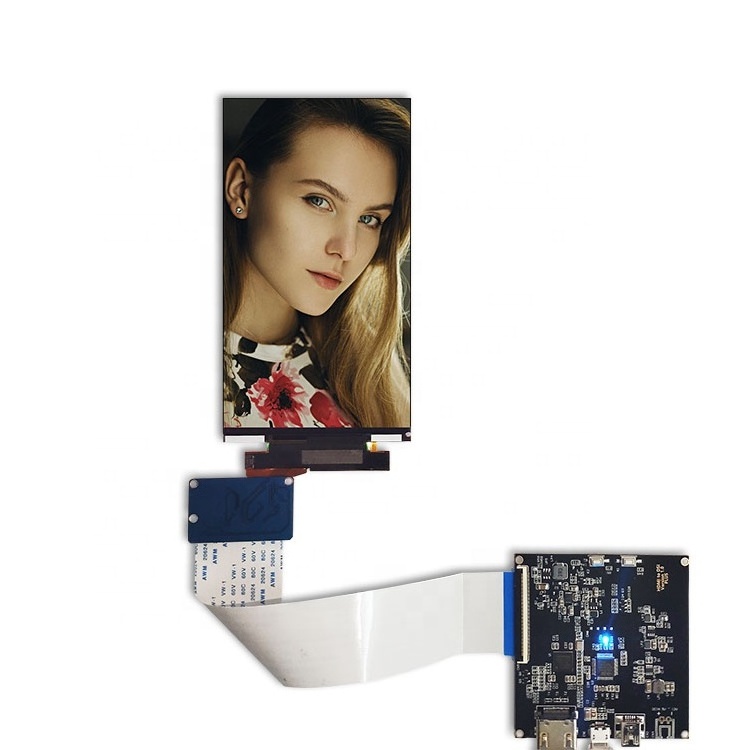

60 pins White Led Backlight High Brightness LCD 5.5 inch 2160*3840 4K UHD Display with 60Hz Driver Board
|
General Features |
|||
|
Diagonal Size |
5.5 inch |
Type |
LTPS TFT-LCD, |
|
Pixel Format |
2160(RG/BR/GB)*3840 |
Configuration |
Rainbow-RGB |
|
Active Area |
68.64(W)*121.56(H) mm |
Treatment |
AHVA, Normally Black, Transmissive |
|
Bezel Area |
69.84(W)*128.86(H) *1.38(D) mm |
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Luminance |
500 cd/m² (Typ.) |
Diver boad Refresh Rate |
60Hz |
|
View Direction |
Symmetry |
Panel interface |
MIPI (2 ch, 4 data lanes) |
|
Viewing Angle |
70/70/70/70 (Typ.)(CR≥100) |
Lamp Type |
6S3P WLED , Without Driver |
|
Support Color |
16.7M , 94% (CIE1931) |
Designed For |
VR/AR |
|
Weight |
TBD |
Touch Panel |
optional |
|
Interface Type |
MIPI (2 ch, 4 data lanes) , 60 pins , Connector |
||
|
Power Supply |
1.85/1.35V (Typ.)(DVDD/VDDI) |
||
|
Environment |
Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -55 ~ 125 °C |
||
New product arrival:
5.5 inch 4K LCD with MIPI controller board (refresh rate: 60Hz)
It's a very good quality and hot-selling products here.
