Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TinoSec/OEM
-
Model Number:
-
XM-7932K-32-669BP-AI-80N
-
Camera Lens:
-
3.6mm default
-
IR Night Vision:
-
25M
-
Alarm System:
-
Motion Detection + Email Alert +APP Push
-
Language:
-
20+ Multi language
-
Camera Material:
-
Metal Housing
-
Work Distance:
-
100 Meters
-
Remote View Phone APP:
-
XMEye APP
-
Hard Disk Drive (HDD):
-
1*SATA Port
-
Support on-vif:
-
Yes,work with other brands camera
-
Advantage:
-
2 White Lights + 2 Infrared Lights + Red Lights + Blue Lights
Quick Details
-
Network:
-
Ip
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Special Features:
-
Two-way Audio, Motion Detection, Face detection, Full Color Night Vision, Red and Blue Light Alarm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TinoSec/OEM
-
Model Number:
-
XM-7932K-32-669BP-AI-80N
-
Camera Lens:
-
3.6mm default
-
IR Night Vision:
-
25M
-
Alarm System:
-
Motion Detection + Email Alert +APP Push
-
Language:
-
20+ Multi language
-
Camera Material:
-
Metal Housing
-
Work Distance:
-
100 Meters
-
Remote View Phone APP:
-
XMEye APP
-
Hard Disk Drive (HDD):
-
1*SATA Port
-
Support on-vif:
-
Yes,work with other brands camera
-
Advantage:
-
2 White Lights + 2 Infrared Lights + Red Lights + Blue Lights
Product Description
H.265 8MP AI Poe Bullet Camera
Image Sensor:1/2.8" CMOS with IR-Cut
Effective Pixel:3840*2160,8.0MP
Lens: 3.6mm
Number of IR LEDs:4pcs IR Leds+4pcs White Leds, With Red-Blue Light Alarm.
All Cameras are built-in Microphone and Speaker, Support Two-way Audio
SupportDIY Alert Voice and Alarm Bell/ Customized new speakers with loud volume (4w high power)
Each Camera include the Waterproof Connection and Screws
Image Sensor:1/2.8" CMOS with IR-Cut
Effective Pixel:3840*2160,8.0MP
Lens: 3.6mm
Number of IR LEDs:4pcs IR Leds+4pcs White Leds, With Red-Blue Light Alarm.
All Cameras are built-in Microphone and Speaker, Support Two-way Audio
SupportDIY Alert Voice and Alarm Bell/ Customized new speakers with loud volume (4w high power)
Each Camera include the Waterproof Connection and Screws
32CH H.265X IP NVR
Power Supply: DC 12V 4A
Plug and play,free install
Video Compression: H.265X
Encode capacity: 32CH 4K 5MP
Video Outputs: VGA/HD-MI HD Output
Recording Resolution: 4k/8MP/5MP
Recording Modes: Manual/Motion/Schedule/P2P Remote View
Hard Drive (HDD): 2*SATA port (support up to 6TB)
P2P Remote View: Support iOS, Android
20+ Languages Available: English, Chinese, French, German, Italian, Arabic, Portuguese, Russian, Spanish, Thai and so on

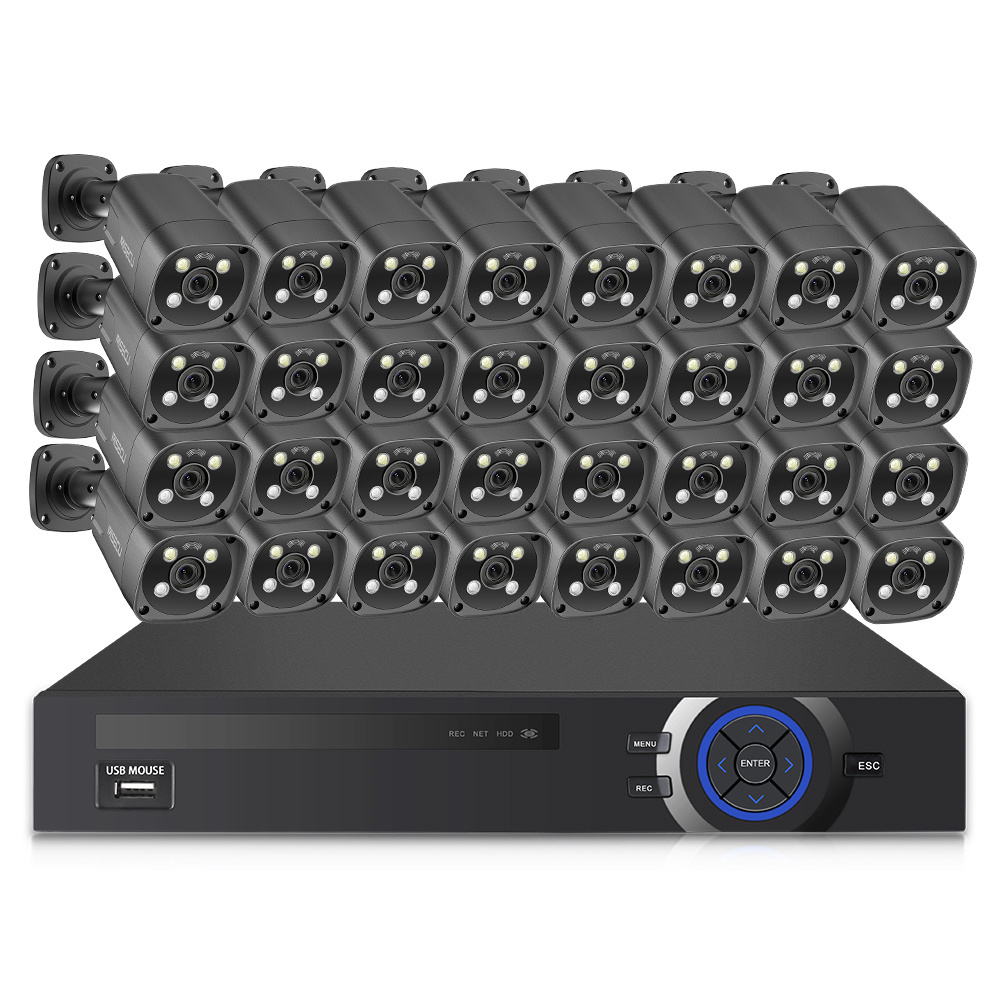

32CH NVR Camera Kit Included as Below:
*1 x 32CH 4k 5MP Normal IP NVR
*32 X 5MP Outdoor Metal IP Poe Cameras
*2 X 16CH Poe Switch
*1 x DC 12V 4A Power Supply for NVR
*1 x Mouse for NVR
*1 x User manual
*32 X Pack Screws&Waterproof connector For IP Cameras
*2 x Warning Sticker
*1 x Remote Control (No Battery)
Plug and play,free install
Video Compression: H.265X
Encode capacity: 32CH 4K 5MP
Video Outputs: VGA/HD-MI HD Output
Recording Resolution: 4k/8MP/5MP
Recording Modes: Manual/Motion/Schedule/P2P Remote View
Hard Drive (HDD): 2*SATA port (support up to 6TB)
P2P Remote View: Support iOS, Android
20+ Languages Available: English, Chinese, French, German, Italian, Arabic, Portuguese, Russian, Spanish, Thai and so on
32CH NVR Camera Kit Included as Below:
*1 x 32CH 4k 5MP Normal IP NVR
*32 X 5MP Outdoor Metal IP Poe Cameras
*2 X 16CH Poe Switch
*1 x DC 12V 4A Power Supply for NVR
*1 x Mouse for NVR
*1 x User manual
*32 X Pack Screws&Waterproof connector For IP Cameras
*2 x Warning Sticker
*1 x Remote Control (No Battery)
Plug And Play
This is Normal IP NVR,Need Add 2pcs 16ch Poe Switch Match Can Be Used Normally.Easy to Operate And Easy to Connect.Save Money And
Space For you
Smart AI Human Motion Detection + Email Alert + Red-blue Light Alarm
When it detects a moving human body at night, 2 white LED lights will light up as a warning deterrent and provide a color
surveillance video.
At the same time, the camera will sound alarm and the red and blue lights will flash alternately. Then the alarm messages will be sent to your mailbox.
Note: Only when the app is opened will received the alarm.
When it detects a moving human body at night, 2 white LED lights will light up as a warning deterrent and provide a color
surveillance video.
At the same time, the camera will sound alarm and the red and blue lights will flash alternately. Then the alarm messages will be sent to your mailbox.
Note: Only when the app is opened will received the alarm.
Two-Way Audio
Two-way audio feature allows you to listen and speak through the camera.With microphone and speaker, you can better understand the details that are happening around your house.
Two-way audio feature allows you to listen and speak through the camera.With microphone and speaker, you can better understand the details that are happening around your house.
Face Record/Face Detection/Face Playback
When someone breaks into the shooting area and the face is captured by the camera, it will be recorded for you to review.
When someone breaks into the shooting area and the face is captured by the camera, it will be recorded for you to review.
IP66 Waterproof Security Camera
Details Images
Specification
|
System
|
Main processor
|
NT98323
|
|
|
Operating System
|
Embedded Linux
|
|
|
System resources
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
|
Interface
|
Operator interface
|
16-bit true color graphic menu operation interface, support mouse operation
|
|
|
Preview
|
1/2/4/6/8/9/16/25/32
|
|
Video
|
Video input (IP)
|
32*4K
|
|
|
Video compression
|
H.265AI/H.265+(compatible H.265/H.264)
|
|
|
Display quality
|
Max:4K
|
|
|
Playback quality
|
4K/5M/4M/3M/1080P
|
|
|
VR
|
Unsupport
|
|
|
human shape / Face
|
Support(depend on camera)
|
|
Audio
|
Audio compression
|
G.711A
|
|
|
Intercom
|
unsupport
|
|
Record
& playback |
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
|
|
Local payback
|
2ch4K@12fps/3ch5M@20fps/4ch4M@20fps/4ch3M@20fps/6ch1080P@25fps
|
|
|
Search mode
|
Search by Time/Calendar/Event/Channel
/Face |
|
|
Record storage
|
HDD、Network、Cloud
|
|
|
Backup mode
|
Network backup, USB hard disk,
USB burner, SATA burner |
|
External
interface |
Video output
|
1ch VGA，1ch HD output
|
|
|
Audio I/O
|
1/1（3.5MM）
|
|
|
Alarm I/O
|
0/0
|
|
|
Network interface
|
1*RJ45 10M/100M/1000M Adaptive Ethernet port
|
|
|
USB interface
|
2*USB2.0 ports
|
|
|
HDD
|
2 SATA(Up to 14TB for each disk
|
|
|
ESATA
|
No
|
|
|
Serial interface
|
No
|
|
Other
|
ON-VIF
|
Support
|
|
|
Power supply
|
12V/4A
|
|
|
Power Consumption
|
<10W(Without HDD)
|
|
|
Work environment
|
Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
|
|
Camera
|
Model
|
XM-669BP-AI-80N
|
|
|
Material
|
Metal Housing
|
|
|
APP
|
XMeye or XMeye Pro
|
|
|
Resolution
|
8MP 3840*2160@15fps
|
|
|
Alarm System
|
Motion Detection+Email Alert+APP Push
|
|
|
IR LED
|
2 White Lights + 2 Infrared Lights,With Red-Blue Light Alarm.
|
|
|
Special Features
|
Human Body Motion Detection,Line Detection, Night Vision,Two Way Audio
|
|
|
System structure
|
Embedded RTOS,dual-core 32bit DSP(GK7605V100),pure hard compression ,watch dog
|
|
|
Sensor
|
8 million black light CMOS sensors; colour 0.0001Lux@F1.2 , black and white 0.0001Lux@F1.2
|
|
|
Video compression
|
H.265 +(Compatible with H.265/H.264) support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
|
|
|
Image output
|
Main stream: 8MP 3840*2160@15fps；5MP 2880*1616@25fps；4MP 2560*1440@25fps；2MP 1920*1080@25fps; sub-stream: 800*448@25fps;
|
|
|
Shutter
|
1/50(1/60)s to 1/10,000s
|
|
|
Lens
|
3.6MM
|
|
|
Day and night
|
Support IR-CUT,IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and thevoltageis3.5V-6V
|
|
|
Noise reduction
|
Support 2D/3D
|
|
|
Wide dynamic
|
Support digital Wide dynamic
|
|
|
Audio compression
|
G.711,support bidrectional talk,audio&video synchronization
|
|
|
Audio interface
|
1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
|
|
|
Network interface
|
1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc
|
|
|
Extension interface
|
Support external audio power amplifier, white light signal control, UART to expand other functions
|
|
|
Singal interface
|
One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links toIR
|
|
|
Reliability
|
Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
|
|
|
Intelligence analysis
|
Supporting human detection, face detection, and support to customize other intelligent functions
|
|
|
Other function
|
Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, andcenter reminder and
image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK |
|
|
ON-VIF
|
Support
|
|
|
Mobile monitoring
|
Support multiple mobile monitoring（iOS，Android）
|
|
|
Power
|
DC12V/2A input, power consumption:≤3W,
|
|
|
Other
|
Support POE power supply
|
|
|
Certification
|
CE, FCC
|
