Quick Details
-
Power:
-
250KW
-
Dimension(L*W*H):
-
7.8*1.8*2.2m
-
Weight (KG):
-
100000
-
Usage:
-
wood processing
-
Product name:
-
wood chipper machine
-
Certification:
-
CE ISO
-
Color:
-
Customer Required
-
Installation:
-
Engineer Guide
-
Feeding size:
-
1300*500mm
-
Power Type:
-
Electric
-
BLADES (PCS):
-
6 Pcs
Quick Details
-
Place of Origin:
-
Shandong, China, Shandong, China (Mainland)
-
Brand Name:
-
SHD, shanghangda
-
Voltage:
-
380V
-
Power:
-
250KW
-
Dimension(L*W*H):
-
7.8*1.8*2.2m
-
Weight (KG):
-
100000
-
Usage:
-
wood processing
-
Product name:
-
wood chipper machine
-
Certification:
-
CE ISO
-
Color:
-
Customer Required
-
Installation:
-
Engineer Guide
-
Feeding size:
-
1300*500mm
-
Power Type:
-
Electric
-
BLADES (PCS):
-
6 Pcs

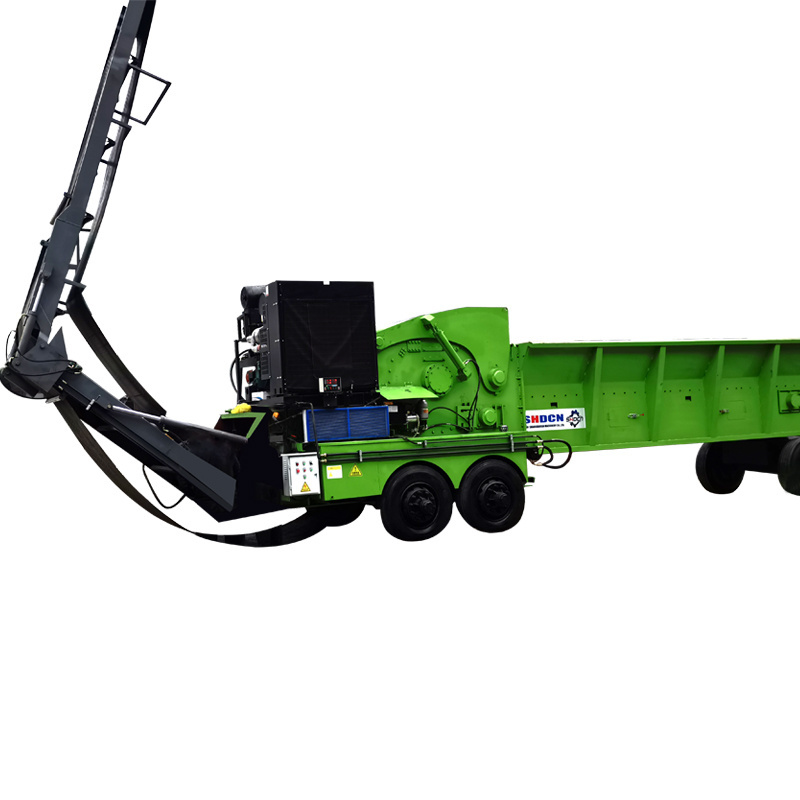

Wood Chipper Machine Display
Wood Chipper Machine Description
Drum chipper is a kind of equipment for producing wood chips. The quality of the small pieces of the drum chipper is higher than that of the old equipment, the raw material is adaptable, the operation is simple, and the maintenance is convenient. The discharge is relatively neat, the finished product is easy to transport, and it saves costs. It is an ideal choice for users. The body of the drum chipper is welded with high-strength steel plates, which is the support base of the entire equipment.
Raw of Material Wood Chipper Machine
The wood chips processed by this machine are of high quality. The machine can also cut and process the residues and wastes of felled wood, such as branches, branches, slats, slats, log cores, waste veneers, etc. This machine can also cut forestry materials, sugarcane, reed, bamboo, etc. Wood, bamboo, coconut shell, etc.
The chipper is suitable for the industry of CREATING flower board, medium density board, wood fiber board, paper making, power plant, boiler and so on. This product structure, the cutting material quality is high, the raw material adaptability is wide, the operation and maintenance is convenient.
Parameters of Wood Chipper Machine
|
Model
|
Power(kw)
|
Capacity
|
Knife/hammer
quantity(pcs)
|
Knife rotary speed(r/min)
|
||||
|
SHD216
|
55kw/75kw
|
4-6
|
3
|
547
|
||||
|
SHD218
|
110
|
8-12
|
3
|
556
|
||||
|
SHD1250-800
|
132/160
|
10-15
|
3*2/24
|
760
|
||||
|
SHD 1400-1050
|
250
|
15-20
|
3*2/24
|
726
|
||||
|
SHD 1650-1050
|
315
|
25-35
|
3*2/28
|
726
|
||||
|
SHD2000-1000
|
530
|
40-50
|
3*3/32
|
726
|
||||
|
Can be customized according to customer needs
|
|
|
|
|
||||
Main Features of Wood Chipper Machine
(1) The crushing chamber cover can be opened hydraulically, which is convenient for maintenance and the blade can be replaced.
(2) The screen size can be customized according to the different requirements of the final product size.
(3)Hydraulic buffer system ensures smooth operation
(4) Fixed, mobile, diesel engines, motors, etc. can be configured according to requirements. (5) Reverse feeding device, the belt conveyor can be reversed in the forward direction. The unit protects the machine when encountering large wood
(6) The capacity is higher than the traditional model, the feed size is larger, and the log diameter can be cut from 230-500mm
(7)The feed is conveyed by the chain plate, and the feeding speed can be automatically adjusted according to the load of the main motor.
