Quick Details
-
Power:
-
1.5KW
-
Weight:
-
120 KG
-
Dimension(L*W*H):
-
700*550*800mm
-
Name:
-
Milk cream separator
-
Function:
-
Milk degreasing & clarifying
-
Application:
-
Milk, juice, etc.
-
Capacity:
-
50-20000L/H optional
-
Material:
-
SUS304
-
Advantage:
-
Customizable
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GOINGWIND
-
Voltage:
-
220V/380V
-
Power:
-
1.5KW
-
Weight:
-
120 KG
-
Dimension(L*W*H):
-
700*550*800mm
-
Name:
-
Milk cream separator
-
Function:
-
Milk degreasing & clarifying
-
Application:
-
Milk, juice, etc.
-
Capacity:
-
50-20000L/H optional
-
Material:
-
SUS304
-
Advantage:
-
Customizable
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Automatic milk cream centrifugal separator machine auto 300 500 1000 3000 5000 l/h dairy cream separator
Introduction:

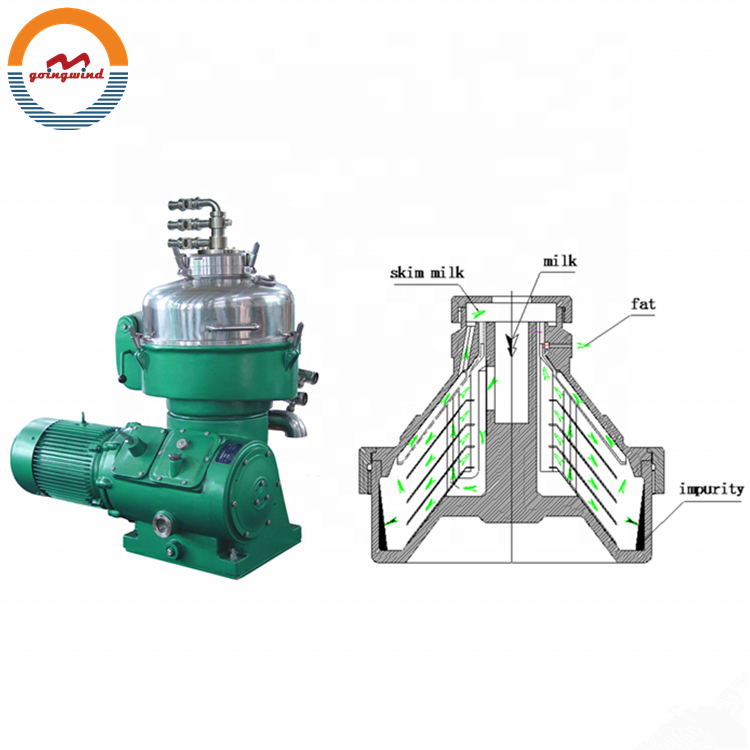

Milk cream separator is the most important equipment in dairy industry. Mainly used in the skim milk, butter, casein, cheese production, anhydrous butter production process, such as centrifuge concentrate, and removal of foreign impurities in the milk. Similar materials can also be used for clarification and purification.
This product absorbs the advantage of the same kind foreign. Product in Germany and Russia. All the parts that may contact the materials are made of stainless steel. Availably reduce the chemical effect of the materials and the machine spare parts.
Power drive adopts the triction clutch, transfer power by the fluid, start reliably, prevent overland. The bearings used the machine are SKF grade in Sweden guarantee working precision of the machine.
Main Features:
1. small size, easy to operate, small footprint.
2. small motor power, less power consumption.
3. two functions: can purify milk while skim milk, or used alone to purifying milk.
4. inlet specially designed to prevent fat globules broken.
5. dual pressure regulating valve can adjust cream concentrations.
6. export using centripetal pump structure, the discharge of the liquid can be transported directly to the downstream equipment.
Main Model List:
MODEL |
CAPACITY |
SLAG DISCHARGE |
POWER |
DIMENSIONS |
WEIGHT |
GWM-05 |
500L/H |
PLC |
1.5KW |
700*550*800mm |
120KG |
GWM-1 |
1000L/H |
PLC |
4KW |
800*600*1250mm |
450KG |
GWM-3 |
3000L/H |
PLC |
7.5KW |
1100*650*1550mm |
650KG |
GWM-5 |
5000L/H |
PLC |
11KW |
1100*700*1600mm |
1100KG |
GWM-10 |
10000L/H |
PLC |
15KW |
1400*1000*1800mm |
1500KG |
GWM-15 |
15000L/H |
PLC |
22KW |
1600*1400*1850mm |
1800KG |
GWM-20 |
20000L/H |
PLC |
30KW |
1800*1500*1900mm |
2200KG |
‘
Pre-sale service:
1. Our company provide free product technical solution, and give related technical lectures, help customers to meet the need of actual product selection and provide analysis on running economy.
2. Our company take charge to provide related technology consulting for free, and according to the actual product is free to provide equipment design.
Sale service:
1. Our company provide installation instructions for the product and free training for the customer to product production technology, can arrange technical personnel door-to-door free training according to the needs of customers.
2. Our company has excellent after-sales service, strict training to ensure that the user needs.
3. During installation, our company will provide technology consulting and equipment installation debugging field training, to ensure the normal use of the customer.
After-sales service:
1. Our company strictly abide by the after-sales service commitment, boot debugging within 12 months after the quality problem of the non-artificial factors caused by my company responsible for free maintenance (except for normal consumable spare parts)
2. Our company promises to provide life-long maintenance for equipment.
