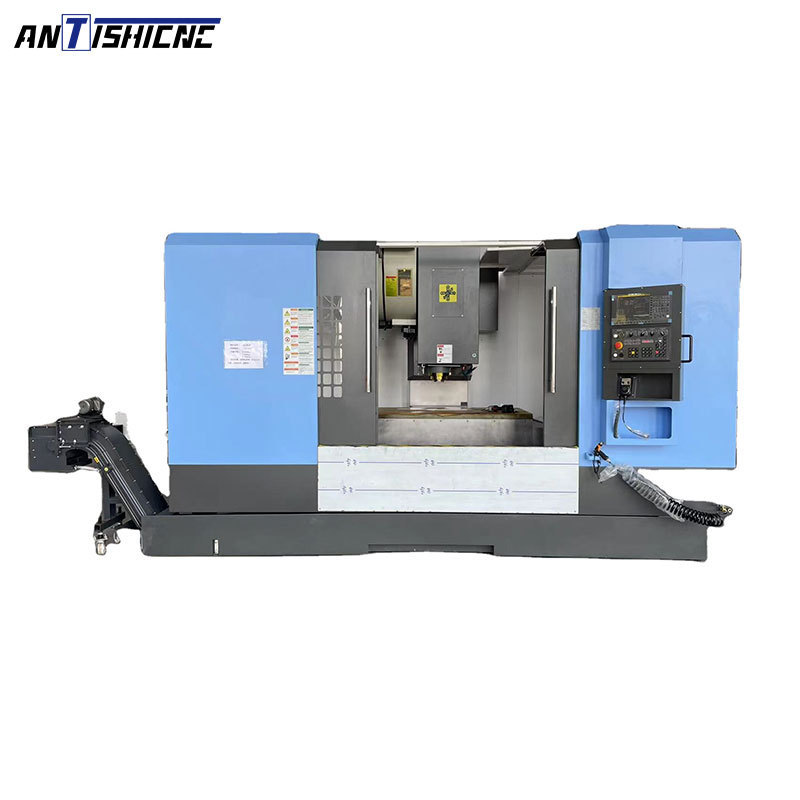

The vertical machining center is a highly automated multifunctional CNC machine tool with a tool magazine and an automatic tool changer. It is mainly suitable for processing complex workpieces such as plates, discs, molds and shells. The most centralized processing of drilling, milling, boring, reaming, tapping and other processes of the workpiece is carried out through the tool magazine and automatic tool changer.
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Y) (mm):
-
800
-
Dimension(L*W*H):
-
4150*3370*2900
-
Weight (T):
-
14.8 T
-
Positioning Accuracy (mm):
-
0.006
-
Repeatability (X/Y/Z) (mm):
-
0.004
-
Range of Spindle Speed(r.p.m):
-
15 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
15
-
Max. Table Load(kg):
-
1500 kg
-
Feed Speed(mm/min):
-
1 - 10 mm/min
-
Rapid Feed Speed(m/min):
-
20/20/20
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Voltage:
-
220V/380V
-
Product name:
-
3-axis Vertical Cnc Machining Center
-
Application:
-
Metal Processing
-
CNC or Not:
-
CNC Systemn
-
Keywords:
-
Fanuc Robodrill
-
Model:
-
VMC1680
-
Features:
-
High Performance
-
Brand:
-
ANTISHICNC
-
Power(W):
-
15kw
-
Payment:
-
30/70
-
Delivery:
-
30-40days
Quick Details
-
Table Size (mm):
-
1700x800
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
1600
-
Table Travel (Y) (mm):
-
800
-
Dimension(L*W*H):
-
4150*3370*2900
-
Weight (T):
-
14.8 T
-
Positioning Accuracy (mm):
-
0.006
-
Repeatability (X/Y/Z) (mm):
-
0.004
-
Range of Spindle Speed(r.p.m):
-
15 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
15
-
Max. Table Load(kg):
-
1500 kg
-
Feed Speed(mm/min):
-
1 - 10 mm/min
-
Rapid Feed Speed(m/min):
-
20/20/20
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Voltage:
-
220V/380V
-
Product name:
-
3-axis Vertical Cnc Machining Center
-
Application:
-
Metal Processing
-
CNC or Not:
-
CNC Systemn
-
Keywords:
-
Fanuc Robodrill
-
Model:
-
VMC1680
-
Features:
-
High Performance
-
Brand:
-
ANTISHICNC
-
Power(W):
-
15kw
-
Payment:
-
30/70
-
Delivery:
-
30-40days
Video Description
|
Parameter
|
Model Number
|
VMC1680
|
|
Table
|
Table size
|
1700×800
|
|
|
Max workpiece weight
|
1500
|
|
|
T slot number width distance
|
7-22×110
|
|
Travel
|
X/Y/Z travel
|
1600/800/700
|
|
|
Max distance from spindle nose to table surface
|
155-855
|
|
|
Spindle center to Z aixs guide surface
|
855
|
|
Spindle
|
Spindle motor power
|
15/18.5
|
|
|
Max spindle speed
|
6000
|
|
|
Spindle taper
|
BT50
|
|
Feed
|
3 axis rapid speed
|
20/20/20
|
|
|
Max cutting speed
|
10
|
|
ATC
|
Pull stud
|
MAS403 BT50-45
|
|
|
ATC capacity
|
arm type BT50-24T
|
|
|
Max diameter of tool length
|
125×300
|
|
Accuracy
|
Positioning accuracy
|
0.006
|
|
|
Repeatability accuracy
|
0.004
|
|
Others
|
CNC system
|
FANUC/SIEMENS/MIRSUBISHI
|
|
|
Machine size L×W×H
|
4150×3370×2900
|
|
|
Machine weight
|
14800
|
Optional 4th and 5th axis
Japan NSK bearing
Japan THK linear guideway
Standard:
Siemens 828D
GSK and Fanuc for option
Taiwan OKADA Armless ATC
Taiwan Spindle
