Quick Details
-
Brand Name:
-
Sanrong
-
Model Number:
-
CPCE
-
Refrigerant:
-
R22, R134a, R404A, R407C, etc.
-
Max. Operating Pressure:
-
28bar
-
Regulating Range:
-
0-6bar / 0-87psig
-
Pilot Pressure Conn.:
-
1/4" SAE Flare
Quick Details
-
Type:
-
Refrigeration Valve
-
Application:
-
Refrigeration Parts
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sanrong
-
Model Number:
-
CPCE
-
Refrigerant:
-
R22, R134a, R404A, R407C, etc.
-
Max. Operating Pressure:
-
28bar
-
Regulating Range:
-
0-6bar / 0-87psig
-
Pilot Pressure Conn.:
-
1/4" SAE Flare

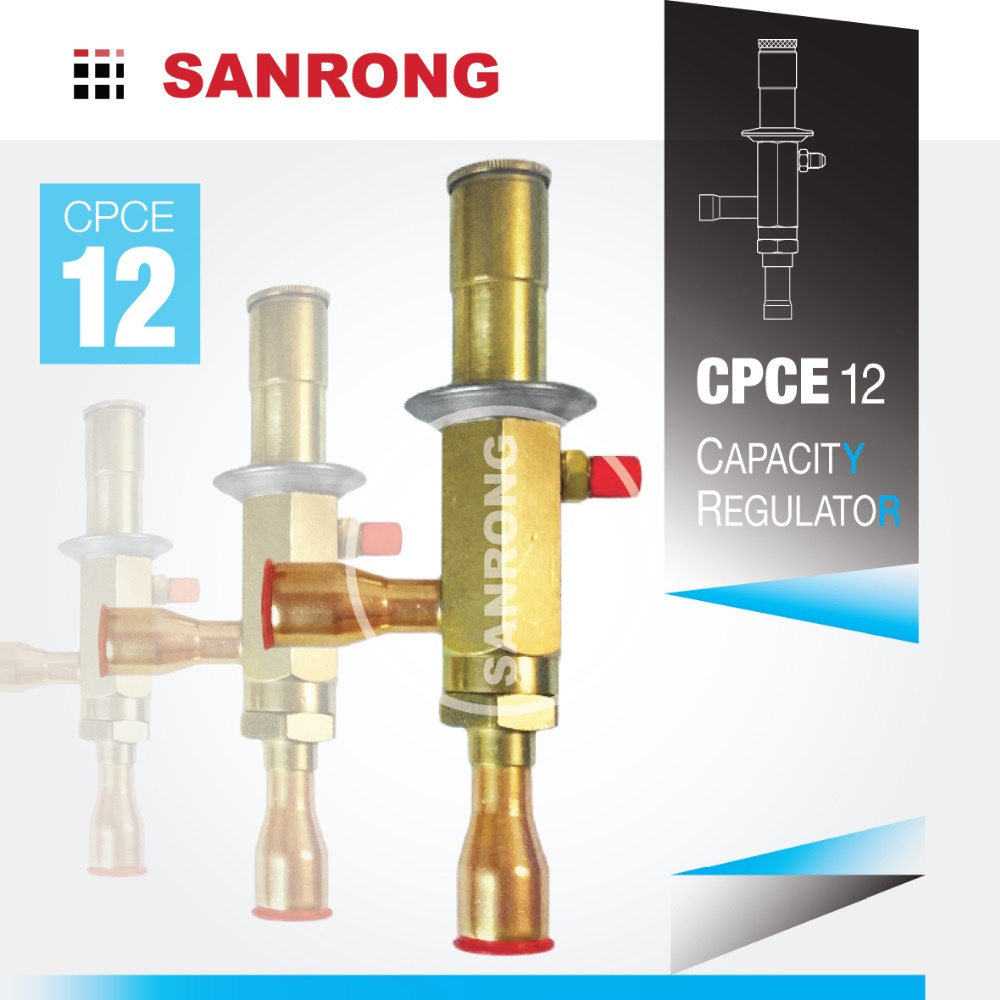

Sanrong CPCE Capacity Regulator for refrigeration and air conditioning system
Hot Gas Bypass Regulator / Pressure Regulating Valve / Discharge Bypass Valve / Compressor Discharge Valve
CPCE servo-operated capacity regulators is used to adapt compressor capacity to actual evaporator load. They are installed in a bypass line between the low and high pressure sides of the refrigeration system, for hot gas injection between evaporator just after expansion valve.
-
Compatible to all CFC, HCFC and HFC refrigerants
-
Avoid high suction superheats by combining hot gas injection with expansion valve characteristics
-
Protect against too low an evaporating temperature to avoid evaporator icing
-
Superior control accuracy of evaporator temperature independent of the load
-
Avoid the coarse on-off temperature control, and keep the system running continuously
| Model | Conn. Size (inches) | Rated Capacity (R22, tons) | Dimensions (mm) | ||||||
| A | B | C | D | E | F | G | |||
| CPCE-12 | 1/2 ODF | 6.2 | 88 | 125 | 213 | 63 | 37 | 53 | 10 |
| CPCE-15 | 5/8 ODF | 9.2 | 12 | ||||||
| CPCE-22 | 7/8 ODF | 12.2 | 17 | ||||||
If you need more details about this product, please feel free to contact us.
