wet alarm check valve for fire sprinkler system

1. Model : ZSFG80, ZSFG100, ZSFG125, ZSFG150, ZSFG200, ZSFG250

ZSFZ80, ZSFZ100, ZSFZ125, ZSFZ150, ZSFZ200, ZSFZ250

2. Nominal Diameter : 80mm, 100mm, 125mm, 150mm, 200mm, 250mm

3. Rated Working Pressure : 1.2MPa

4. Water Friction : <0.07MPa

5. Strength Test Pressure : 4.8MPa

6. Flange Thread Size : 160mm, 180mm, 210mm, 240mm, 295mm, 355mm

7. Thread Numbers : 8*18mm/8*18mm/8*18mm/8*22mm/12*22mm/12*26mm

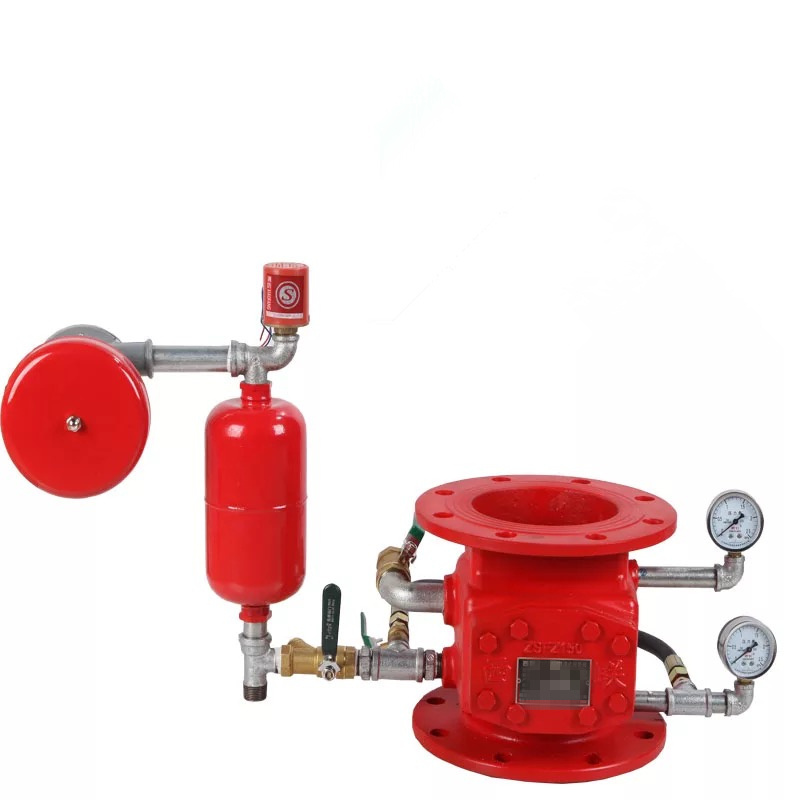

ZSFZ-WET ALARM CHECK VALVE

ZSFZ system is a commom regular extinguishing system.It is ccomposed of wet alarm valve,retarder,water motor alarm and other parts(such as,pressure switch,water flow detector,sprinkler head,etc)This system is long-termly under standby working conditions and pipe network insider is filled with pressure.When protected area happens fire disaster,enveronmental temperature increasing,temperature sensitive parts on sprinkler head,i.e,glass ball,acting ,seal set falling off,it will automatically start system.And then it will directly spray water to fire disaster happening area and also emit alarm signal to alarm,to put out fire and control fire conditions .

ZSFG-LEVER TYPE DELUGE ALARM VALVE

ZSFG model deluge valve is a one-way valve which via electric,engine or other ways to open,and make waterflow into sprinkler systems and meanwhile start to alarm,Deluge systems adopt open type fire sprinklers, it's will control by fire detection system,when get fire,fire detection system start to act and deluge alarm valve open,water where exist in pipeline flow into protect area pipeline flow into protect area pipeline,then make all the open type fire sprinklers start to spray together and issue sound,light alarm signal,ZSFG deluge alarm  valve widely used in these places like dangerous ground and high headroom ground,Also it can used for foam systems.This type should upright installlation,in the frezzing area,deluge alarm valve environment temperature should be more than 4 °C,wet type control deluge alarm valve should be keep in 4°C-70°C.
