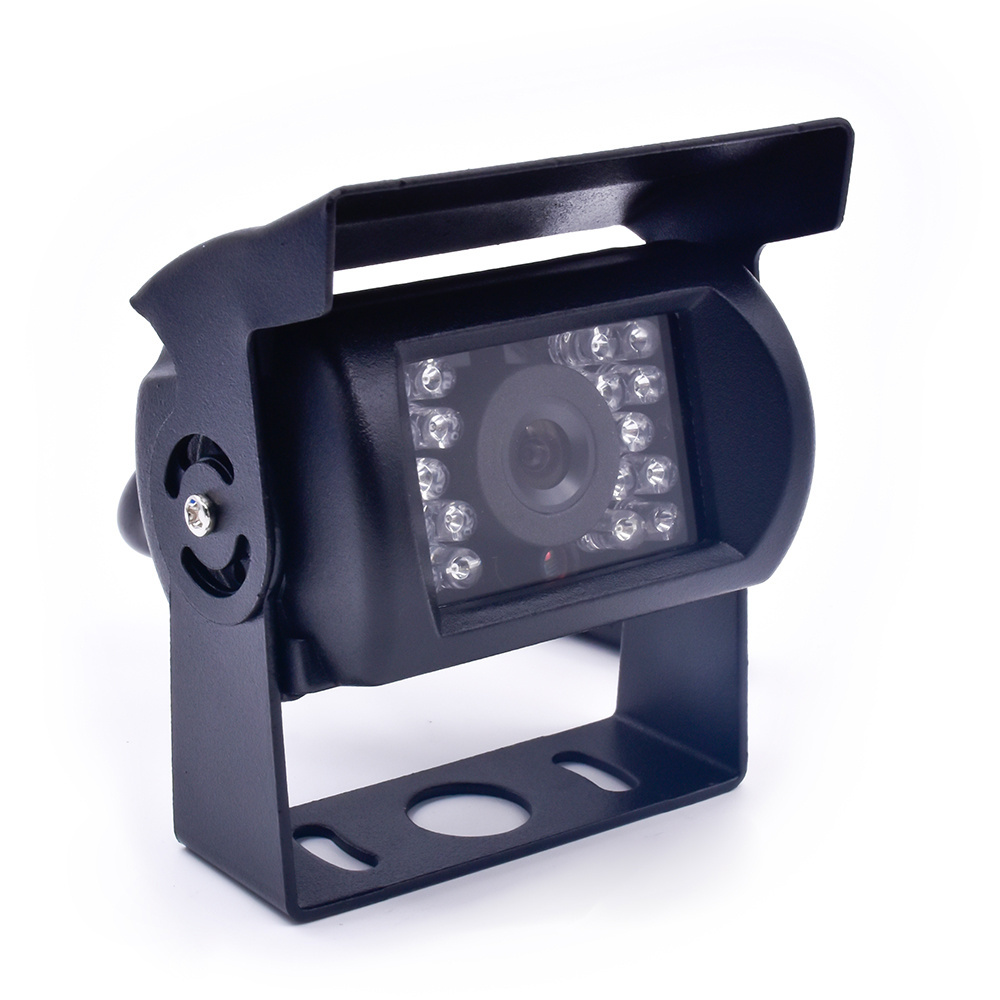

This heavy duty surface mount camera with
U-shaped bracket
ideal for heavy trucks, mining loaders and other industrial or construction vehicles. It can gives operators all-round vehicle awareness, making it safer for them to operate and the people working around them.
Comes with a
120-degree wide angle lens
that eliminates blind spots, it’s designed to withstand water, mud or debris impact to the fullest with
IP67
rating.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
2.4W
-
Voltage:
-
DC 12-24V
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Neutral
-
Model Number:
-
502
-
Product name:
-
Heavy Duty Camera
-
Mount Type:
-
Surface Mount U-Shaped Bracket
-
Lens Angle:
-
120 Degree
-
Image Sensor:
-
CMOS
-
AHD:
-
No
-
TV System:
-
PAL
-
Resolution:
-
420 TVL
-
Number of LED's:
-
18
-
LED Type:
-
Infrared
-
Plug Type Camera End:
-
4 Pin
Quick Details
-
Car Fitment:
-
Universal
-
View Angle:
-
90°-120°
-
Function:
-
Waterproof, NIGHT VIEW, Parking Line
-
Power:
-
2.4W
-
Voltage:
-
DC 12-24V
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Neutral
-
Model Number:
-
502
-
Product name:
-
Heavy Duty Camera
-
Mount Type:
-
Surface Mount U-Shaped Bracket
-
Lens Angle:
-
120 Degree
-
Image Sensor:
-
CMOS
-
AHD:
-
No
-
TV System:
-
PAL
-
Resolution:
-
420 TVL
-
Number of LED's:
-
18
-
LED Type:
-
Infrared
-
Plug Type Camera End:
-
4 Pin
Product Description & Specification
Ideal Surface Mount Camera for Heavy Duty Vehicles!
Features
●
Heavy duty surface mount design with U-shaped bracket for simple installation on a machine or vehicle
● 120 degree wide angle lens for reduced blind spots
● Aluminum case and rated IP69K that guarantee the camera will withstand impact of water and debris normally hounding the vehicle’s
exterior
● 18 Infrared LEDs built in for superior night vision
● Adjustable sunshade and PROLINK II connector included
● 120 degree wide angle lens for reduced blind spots
● Aluminum case and rated IP69K that guarantee the camera will withstand impact of water and debris normally hounding the vehicle’s
exterior
● 18 Infrared LEDs built in for superior night vision
● Adjustable sunshade and PROLINK II connector included
Specifications
●
Mount Type: Surface Mount U-Shaped Bracket
● Reverse or Rear View: Rear View
● Lens Angle: 120 Degree
● Image Sensor (CMOS or CCD): CMOS
● AHD: No
● AHD Resolution: N/A
● Parking Gridlines: No
● PAL or NTSC: PAL
● IP Rating: IP67
● Voltage: 12V-24V
● Minimum Illumination: 0LUX
● Number of LED’s: 18
● LED Type: Infrared
● Plug Type Camera End: 4-Pin
● Plug Type Monitor End: N/A
● Cable Length: 400mm
● Reverse Trigger on Video Cable: N/A
● Dimensions (Camera Only): 43mm(H) x 70mm(W) x 58mm(L)
● Dimensions (Camera & Bracket): 80mm(H) x 78mm(W) x 58mm(L)
● Wired or Wireless: Wired
● Reverse or Rear View: Rear View
● Lens Angle: 120 Degree
● Image Sensor (CMOS or CCD): CMOS
● AHD: No
● AHD Resolution: N/A
● Parking Gridlines: No
● PAL or NTSC: PAL
● IP Rating: IP67
● Voltage: 12V-24V
● Minimum Illumination: 0LUX
● Number of LED’s: 18
● LED Type: Infrared
● Plug Type Camera End: 4-Pin
● Plug Type Monitor End: N/A
● Cable Length: 400mm
● Reverse Trigger on Video Cable: N/A
● Dimensions (Camera Only): 43mm(H) x 70mm(W) x 58mm(L)
● Dimensions (Camera & Bracket): 80mm(H) x 78mm(W) x 58mm(L)
● Wired or Wireless: Wired
Additional information
●
Weight: 0.3 kg
● Dimensions: 7.8 × 8 cm
● Dimensions: 7.8 × 8 cm
Detail Images
|
Package List
|
|
|
|
|||
|
Camera
|
1 Pcs
|
User Manual
|
1 Pcs
|
|||
