Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TENYU
-
Model Number:
-
TY - H04
-
Product Name:
-
Metal Iron Drill Bit
-
Material:
-
HSS4241, HSS4341
-
Process:
-
Fully Ground, Rolled
-
Size:
-
1-13mm
-
Point Angle:
-
118 Degree or 135 Degree
-
Surface Finish:
-
Rainbow
-
Standard:
-
DIN338 Standard
-
Usage:
-
For Metal, PVC, Plastic, Aluminium Drilling
-
MOQ:
-
1000pcs Per Size
-
Package:
-
10/5pcs in One Plastic Bag
Quick Details
-
Type:
-
Twist Drill Bit
-
Use:
-
Metal Drilling
-
Finish:
-
Rainbow
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TENYU
-
Model Number:
-
TY - H04
-
Product Name:
-
Metal Iron Drill Bit
-
Material:
-
HSS4241, HSS4341
-
Process:
-
Fully Ground, Rolled
-
Size:
-
1-13mm
-
Point Angle:
-
118 Degree or 135 Degree
-
Surface Finish:
-
Rainbow
-
Standard:
-
DIN338 Standard
-
Usage:
-
For Metal, PVC, Plastic, Aluminium Drilling
-
MOQ:
-
1000pcs Per Size
-
Package:
-
10/5pcs in One Plastic Bag
Why choose us?
1.High-quality, factory affordable price.
2.Quality assured.
3.Support customized LOGO.
4.Customizable packaging.
1.High-quality, factory affordable price.
2.Quality assured.
3.Support customized LOGO.
4.Customizable packaging.
Our Advantages
Product Photos
|

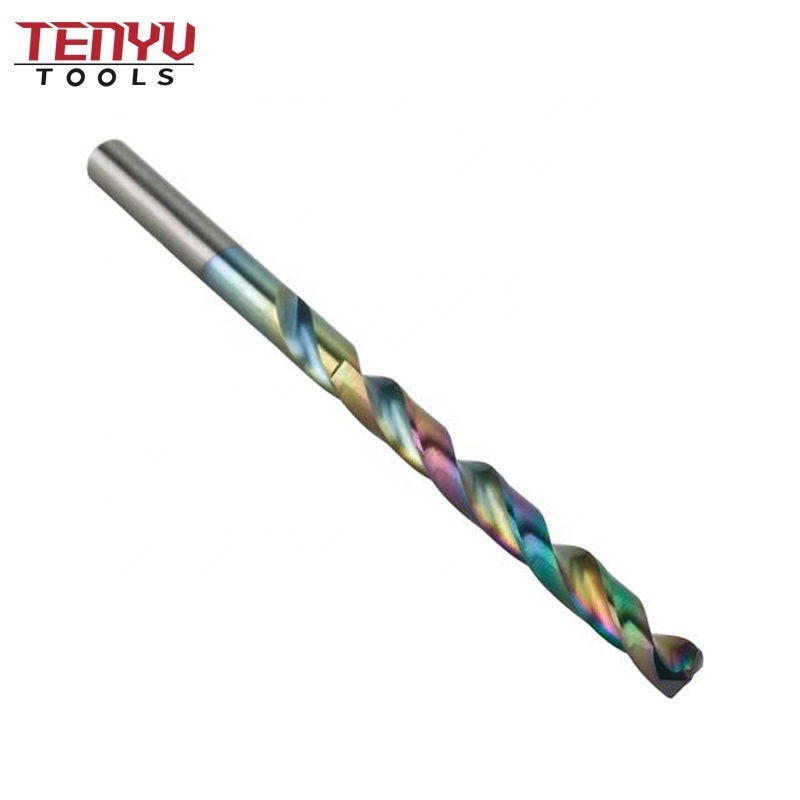

Product Description
|
|
|
|
|
||||
|
|
|
|
|
|||||
|
Product Name
|
High Speed Steel Danyang High Quality Hss Twist Drill Bit Set for Metal Iron Drill Bit
|
|
|
|
||||
|
Material
|
HSS4241/HSS4341
|
|
|
|
||||
|
Process
|
Rolled/Fully Ground
|
|
|
|
||||
|
Standard
|
DIN338
Jobber Length |
|
|
|
||||
|
Size
|
1-13mm
|
|
|
|
||||
|
Point Type
|
135 Degree Split Point (We Also Have 118 Degree Regular Point)
|
|
|
|
||||
|
Shank Type
|
Straight Shank
|
|
|
|
||||
|
Surface Finish
|
Rainbow (Also have Bright, Black Oxide, Black & Gold, Titanium, Black & Bright, Amber Color)
|
|
|
|
||||
|
Package
|
10/5pcs in One Plastic Bag
|
|
|
|
||||
|
Product Size
|
|
|
|
|
|
|||||
|
Diameter (mm/inch)
|
Flute Length (mm/inch)
|
Overall Length (mm/inch)
|
Diameter (mm/inch)
|
Flute Length (mm/inch)
|
Overall Length (mm/inch)
|
|||||
|
1.0 3/64"
|
12 3/4"
|
34 1-3/4"
|
9.5 23/64"
|
81 3-1/2"
|
125 4-7/8"
|
|||||
|
1.5 1/16"
|
20 7/8"
|
43 1-7/8"
|
9.5 3/8"
|
81 3-5/8"
|
125 5"
|
|||||
|
2.0 5/64"
|
24 1"
|
49 2"
|
10.0 25/64"
|
87 3-3/4"
|
133 5-1/8"
|
|||||
|
2.5 3/32"
|
30 1-1/8"
|
57 2-1/4"
|
10.5 13/32"
|
87 3-7/8"
|
133 5/1-4"
|
|||||
|
3.0 7/64"
|
33 1-1/2"
|
61 2-5/8"
|
11.0 27/64"
|
94 3-15/16"
|
142 5-3/8"
|
|||||
|
3.5 1/8"
|
39 1-5/8"
|
70 2-3/4"
|
11.5 7/16"
|
94 4-1/16"
|
142 5-1/2"
|
|||||
|
3.5 9/64"
|
39 1-3/4"
|
70 2/7-8"
|
11.5 29/64"
|
94 4-3/16"
|
142 5-5/8"
|
|||||
|
4.0 5/32"
|
43 2"
|
75 3-1/8"
|
12.0 15/32"
|
101 4-5/16"
|
151 5-3/4"
|
|||||
|
4.5 11/64"
|
47 2-1/8"
|
80 3-1/4"
|
12.5 31/64"
|
101 4-3/8"
|
151 5-7/8"
|
|||||
|
5.0 3/16"
|
52 2-5/16"
|
86 3-1/2"
|
13.0 1/2"
|
101 4-1/2"
|
151 6"
|
|||||
|
5.5 13/64"
|
57 2-7/16"
|
93 3-5/8"
|
13.5 17/32"
|
108 4-13/16"
|
160 6-5/8"
|
|||||
|
5.5 7/32"
|
57 2-1/2"
|
93 3-3/4"
|
14.0 35/64"
|
108 4-13/16"
|
160 6-5/8"
|
|||||
|
6.0 15/64"
|
57 2-5/8"
|
93 3-7/8"
|
14.5 9/16"
|
114 4-13/16"
|
169 6-5/8"
|
|||||
|
6.5 1/4"
|
63 2-3/4"
|
101 4"
|
14.5 37/64"
|
114 4-13/16"
|
169 6-5/8"
|
|||||
|
7.0 17/64"
|
69 2-7/8"
|
109 4-1/8"
|
15.0 19/32"
|
114 5-3/16"
|
169 7-1/8"
|
|||||
|
7.5 9/32"
|
69 2-15/16"
|
109 4-1/4"
|
15.5 39/64"
|
120 5-3/16"
|
178 7-1/8"
|
|||||
|
7.5 19/64"
|
69 3-1/16"
|
109 4-3/8"
|
16.0 41/64"
|
120 5-3/16"
|
178 7-1/8"
|
|||||
|
8.0 5/16"
|
75 3-3/16"
|
117 4-1/2"
|
16.5 21/32"
|
125 5-3/16"
|
184 7-1/8"
|
|||||
|
8.5 21/64"
|
75 3-5/16"
|
117 4-5/8"
|
17.0 43/64"
|
125 5-5/8"
|
184 7-5/8"
|
|||||
|
9.0 11/32"
|
81 3-7/16"
|
125 4-3/4"
|
17.5 11/16"
|
130 5-5/8"
|
191 7-5/8
|
|||||
