15-800mm diameter round square rectangle angle H beam carbon steel tube pipe fiber laser cutting machine

15-800mm diameter round square rectangle angle H beam carbon steel tube pipe fiber laser cutting machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $39000

≥2 Sets

US $38000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: Ncstudio/Cypcut

Cutting Area:: 6-12M

Cutting Thickness:: depends on laser power and metal thickness

Control Software:: Cypcut or Ncstudio

Place of Origin:: Shandong, China

Brand Name:: Unique CNC

Weight (KG):: 4000 KG

Feature:: large diameter

Function:: various shapes steel tube cutting

Cutting materials:: Steel square tube,round tube,oval tube

Cutting length:: 6-12M

Max.cutting diameter options:: 220mm/320mm/420mm/500mm/600mm/800mm

Cutting machine axis:: 5 axis

Transmission system:: Gear racks+rails

Driving motors:: Servo

X.Y maximum moving speed:: 60m/min

X, Y, Z axis repeat positioning accuracy:: ±0.03/1000mm

Fiber laser source:: Max/Raycus 1000W-12000W

Quick Details

Laser Type:: Fiber Laser

Cutting Speed:: depends on laser power and metal thickness

Cooling Mode:: WATER COOLING

Control System Brand:: Ncstudio/Cypcut

Cutting Area:: 6-12M

Cutting Thickness:: depends on laser power and metal thickness

Control Software:: Cypcut or Ncstudio

Place of Origin:: Shandong, China

Brand Name:: Unique CNC

Weight (KG):: 4000 KG

Feature:: large diameter

Function:: various shapes steel tube cutting

Cutting materials:: Steel square tube,round tube,oval tube

Cutting length:: 6-12M

Max.cutting diameter options:: 220mm/320mm/420mm/500mm/600mm/800mm

Cutting machine axis:: 5 axis

Transmission system:: Gear racks+rails

Driving motors:: Servo

X.Y maximum moving speed:: 60m/min

X, Y, Z axis repeat positioning accuracy:: ±0.03/1000mm

Fiber laser source:: Max/Raycus 1000W-12000W

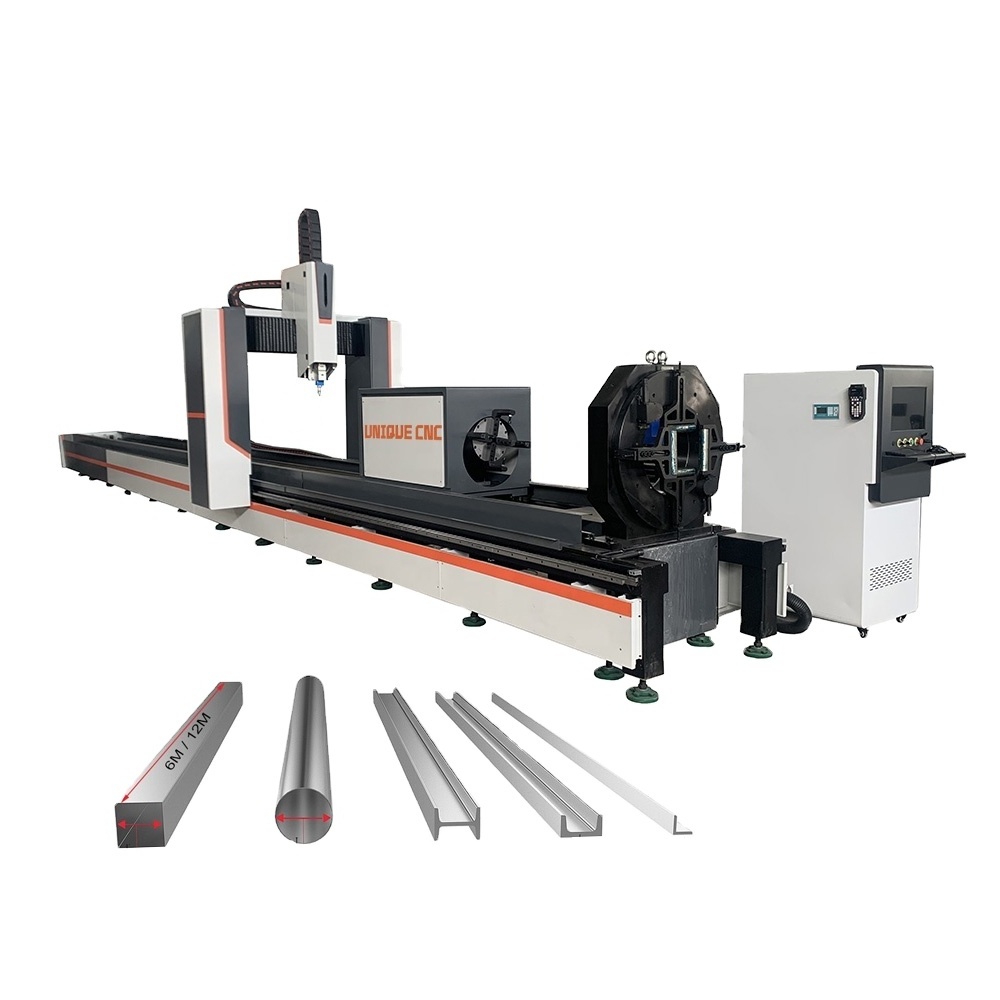

15-800mm diameter round square rectangle angle H beam carbon steel tube pipe fiber laser cutting machine

Advantages of Unique CNC Tubes Fiber Laser Cutting Machines:

* Not only cut normal round and square tubes, but also angle steel, channel steel and H beam,etc. * Designed for large sizes steel pipes. Cutting length 6-12M while diameter can reach 800mm at most. * Heavy-duty structure, quenching treatment, no deformation, high precision. Machine weight more than 6000kg. * Rear chuck automatic feeding. * Machine adopts 21-inch high-resolution LCD color monitor, which can display the cutting graphics and cutting running track, key operation mode, supports U disk to transfer files, and it is able to edit the cutting program manually. * Save tail material (the tail material can be controlled in 3-5CM), can be retrofitted with a special intelligent support, to prevent the long material sagging. * Machines use high efficiency servo motor drive, fast speed, high efficiency, high precision and smooth running. * Adopt high flexible shielded wire, resist high frequency interference.

Applications of Tubes Fiber Laser Cutting Machine:

Unique CNC 5 Axis fiber laser tube cutting machines can easily cut various tubes. It can cut round pipes, square pipes, rectangular pipes, angle steel, channel steel, H-shaped steel and other profiles.

Machine	Tubes Fiber Laser Cutting Machine
Cutting materials	Various shapes steel and aluminum
Max.Cutting length	6/12M
Max.cutting diameter options	320mm/420mm/500mm/600mm/800mm
Cutting machine axis	5 axis
Transmission system	Gear racks+rails
Driving motors	Servo
X.Y maximum moving speed	60m/min
X, Y axis positioning accuracy	±0.03/1000mm
X, Y, Z axis repeat positioning accuracy	±0.03/1000mm
Cutting precision	0.1-0.5mm
Acceleration	1.0G m/s²
Fiber laser source	Max/Raycus/IPG 1000W-12000W
Cutting thickness	Depends on different fiber source and materials
Working voltage	220V/380V
Machine weight	More than 6000kg (12m length machines)

Heavy-duty and intelligent chucks

For standard machines, front chuck is manual type while rear chuck is pneumatic type. Both sides of the clamping can find the center of the pipes automatically. When the steel tubes are non-standard, the size will have a certain deviation, the manual chuck is more close to the pipe, to ensure cutting precision.

Pneumatic supports

Support the heavy metal tubes,especially long tubes.Steel structure, heavy-duty and rigid

Strong Steel Base and high precision transmit

This machine features an all -steel frame, which is stress relieved to ensure the highest quality and no deformation.Famous brand top quality guide rails and rack.

Professional Tubes Cutting Controller

File speed setting supports line speed and synthesized speed. The power clamp displays the maximum size of the machining pattern, which is intuitive and convenient. Graphics can be zoomed in and out.

Receiving table

Capacity: 3 tons Hydraulic type

Unique CNC Fiber laser cutting machines are used in various industries, such as fitness equipment manufacturing, automobile manufacturing, medical equipment manufacturing, kitchenware and bathroom, steel and wood furniture, tubes fabrication, etc.

After-sales service

We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service.

*The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts; *Provide various support of metal cutting; *Fast spare parts and technical support; *Detailed manuals.
