Power over ethernet Switch 4 Port 10/100M IEEE802.3af For IP Camera PoE Extender Repeater

Product overview:

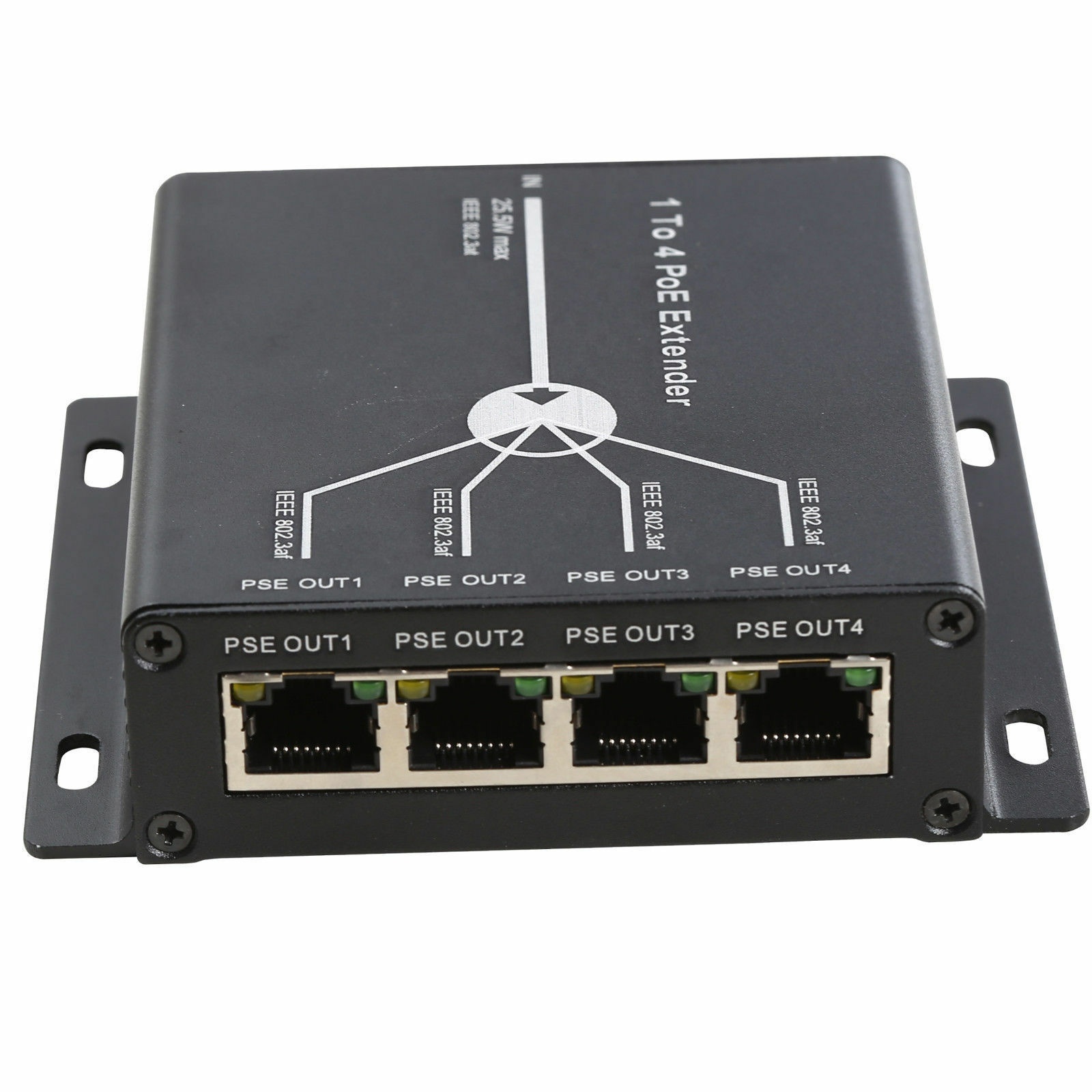

4-Ports PoE Extender has 5 10/100M PoE ports, among

them, 1 port for power input, and others for power output.

Comply with 10/100BASE-TX, IEEE802.3at(power-in)

/IEEE802.3af(power-out). The power input is 25.5W in total.

Power output for single port is 15.4W(max).

1-Port PoE Extender has 2 10/100M LAN ports, among

them, one for power input, the other for power output.

Comply with 10/100BASE-TX,IEEE802.3af(PoE). Power input

for single port is 13W. Power output for single port is 12.2W.

PoE Extenders can increase the transmission distance for

Ethernet data and PoE power up to 120m via Cat5 UTP cables.

It offers you great flexibility to extend the distance of PoE.

Feature:

1. C omply with IEEE802.3af power over Ethernet

2. 10/100M supported

3. Extend the range of POE an additional 120 meters

4. Automatically detects and protects Poe equipments from being damaged by incorrect installation.

5. Plug-and Play no configuration required

6. 4 ports POE extender can forward both Ethernet and POE power for 4 terminal equipments via cat5 UTP cable

7. 1 port POE extender can forward both Ethernet and POE power for 1 terminal equipment via cat5 UTP cable

Applicable Range

1. usd with AP, IP camera, IP telephone and the other network equipments in the situation of the lack of power line or far away from the power outlets

2. installed at hotels,schools, buildings , villages, etc.

Package contents

10/100M POE extender (1port or 4 port)

U ser manual

S crew set(3.5x20mm, for 4-port POE extender only)

Note:

1. Please don't place any heavy thing on the POE extender

2. to prevent the water seeping into the extender, please keep POE extender away from wet environment.

3. suggest to used POE extender indoors . when installing the extender in outdoor , please install it in a waterproof house

P o wer-Distance chart

F or 1-port POE Extender only

Indicator Status
