The advanced structure of TCH is superior to the structures of the similar products of other companies at home and abroad. The
lifting speed is faster, running more smoothly, Compact body, Small volume, light weight, good appearance, low noise, more
reliable, galvanized chain and it is not easy to rust...

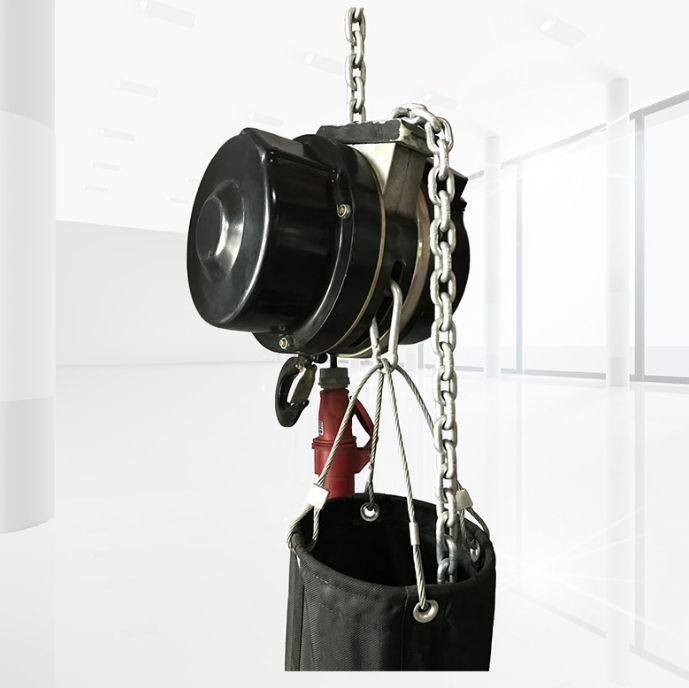

TCH stage electric chain hoist can Installed in duplicate overhead beams, and also can installed in Electric or manual single
beam, double-girder beam crane, cantilever crane and other crane etc.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
101 kg
-
Product name:
-
2ton Stage Electric Lifting Hoist
-
Material:
-
Metal
-
Capacity:
-
0.5T,1T,2T
-
Control Voltage:
-
24V/36V/48V
-
Chain:
-
G80 Load Chain
-
Trolley Type:
-
Manual or electric trolley
-
Control Method:
-
Pendant +Remote(Customized)
-
Voltage:
-
220/380/440/450/600/650V
-
Color:
-
Customers' Requirements
-
Feature:
-
lifting tools
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Lift Speed:
-
3.6-6.3m/min
-
Weight (KG):
-
101 kg
-
Product name:
-
2ton Stage Electric Lifting Hoist
-
Material:
-
Metal
-
Capacity:
-
0.5T,1T,2T
-
Control Voltage:
-
24V/36V/48V
-
Chain:
-
G80 Load Chain
-
Trolley Type:
-
Manual or electric trolley
-
Control Method:
-
Pendant +Remote(Customized)
-
Voltage:
-
220/380/440/450/600/650V
-
Color:
-
Customers' Requirements
-
Feature:
-
lifting tools
Products Description
Product packaging
Our Advantages
Capacity: Stage crane electric chain hoist
Standard lifting height: 1-50m Electric hoist, can booking produce by order
Capacity can reach 2ton, the lifting height we booking produce by customer's demand.
The Voltage is 3 phase 220V, 380 V and 440 V etc.
1) 2m/min for single chain
2) symmetrical structure
3) rain-proof design
4) steel-made cover
5) Friction overload protection
6)36V indirect control
7) limit switch of screw tpye
8) 100% test before assembling and loading
9) Warranty: 1 Year
10)dual brake -- electromagnetic brake and mechanical brake. Electromagnetic brake system, using non-asbestos brake linings to
reduce maintenance times greatly.
11Overload Protector is available, insulation is F grade. Single use or multiple operating with one control cabinet
Standard lifting height: 1-50m Electric hoist, can booking produce by order
Capacity can reach 2ton, the lifting height we booking produce by customer's demand.
The Voltage is 3 phase 220V, 380 V and 440 V etc.
1) 2m/min for single chain
2) symmetrical structure
3) rain-proof design
4) steel-made cover
5) Friction overload protection
6)36V indirect control
7) limit switch of screw tpye
8) 100% test before assembling and loading
9) Warranty: 1 Year
10)dual brake -- electromagnetic brake and mechanical brake. Electromagnetic brake system, using non-asbestos brake linings to
reduce maintenance times greatly.
11Overload Protector is available, insulation is F grade. Single use or multiple operating with one control cabinet
|
Capacity(KG)
|
Model
|
Power(kw)
|
No. of load chain
|
Lift speed(m/min)
|
Weight of hoist without load chain(kg)
|
Weight of Load chain(Kg/m)
|
|
500
|
0.5B
|
0.86
|
1
|
8
|
48
|
1.1
|
|
1000
|
1B
|
0.86
|
2
|
2
|
52
|
2.2
|
|
2000
|
M6-W2B
|
1.5
|
1
|
16
|
50
|
1.1
|
