Quick Details
-
Model Number:
-
MTS-212R
-
Max. Current:
-
6A
-
Mechanical Life:
-
50000 Cycles Min
-
Item number:
-
Mini Toggle Switch
-
Mounting size:
-
6 MM
-
Function:
-
ON (ON) 2 Way Toggle Switch
-
Terminal:
-
Soldering Terminals
-
Shell color:
-
Red
-
Contact Resistance:
-
20mΩ max
-
Insulation Resistance:
-
500VDC 1000MΩ min
-
Dielectric Strength:
-
1 Minute 1500V AC
-
Electric life:
-
10,000 Cycles Min
-
Application:
-
Boat Car Automotive Guitar
-
Certification:
-
CE, UL
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
MTS-212R
-
Max. Current:
-
6A
-
Mechanical Life:
-
50000 Cycles Min
-
Item number:
-
Mini Toggle Switch
-
Mounting size:
-
6 MM
-
Function:
-
ON (ON) 2 Way Toggle Switch
-
Terminal:
-
Soldering Terminals
-
Shell color:
-
Red
-
Contact Resistance:
-
20mΩ max
-
Insulation Resistance:
-
500VDC 1000MΩ min
-
Dielectric Strength:
-
1 Minute 1500V AC
-
Electric life:
-
10,000 Cycles Min
-
Application:
-
Boat Car Automotive Guitar
-
Certification:
-
CE, UL
|
Product Name
|

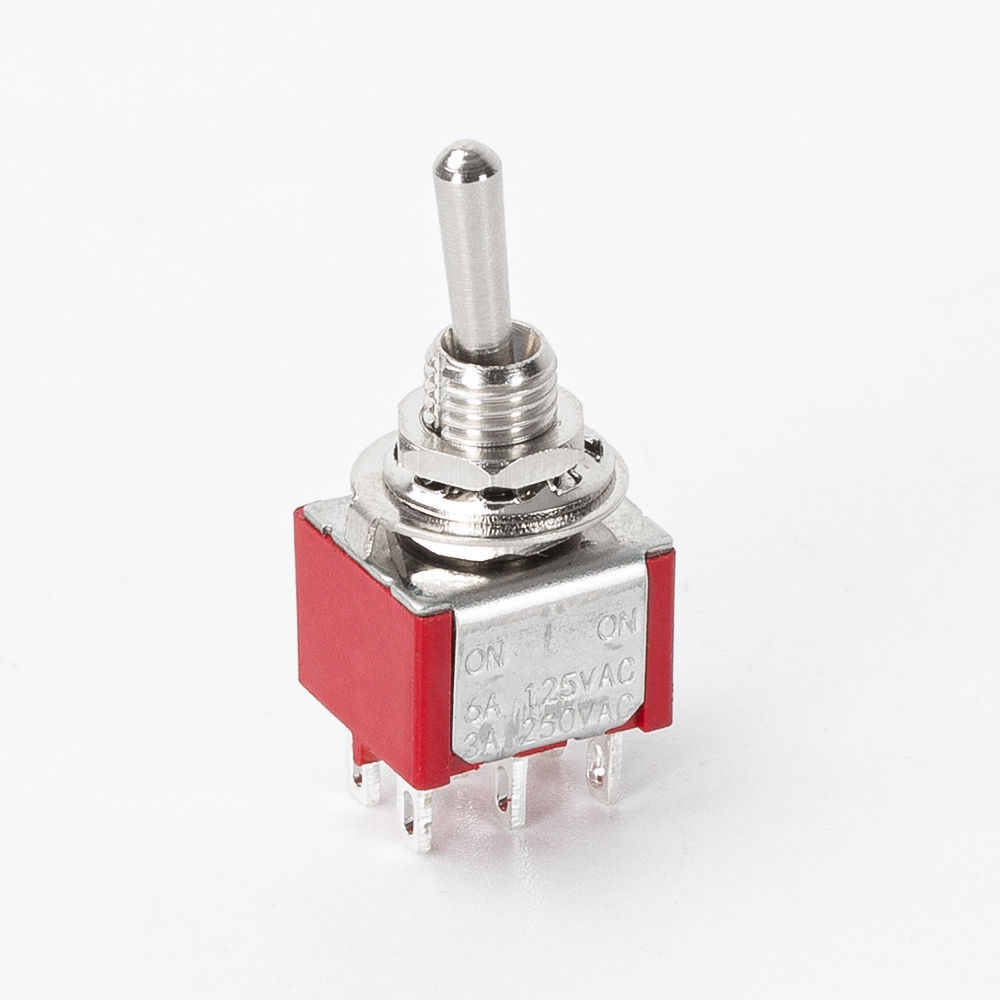

Electrical 3A 250VAC 2 Position 12V Micro DPDT Push Button Toggle Switch 6P Momentary Mini Toggle Switch
|
|
Rating
|
6A 125VAC ; 3A 250VAC
|
|
Contact R
|
20 mΩ max
|
|
Insulation R
|
500V DC 1000MΩ min
|
|
Dielectric Strength
|
1 Minute 1500V AC
|
|
Operating Temperature
|
-25℃ ~ +85℃
|
|
Electrical Life
|
10,000 Cycles
|
|
MTS Series Toggle Switch
|
|
|
|
|
|
|
||||||
|
Poles
|
Model
|
Circutry
|
Position
|
Terminal Type
|
Action
|
|
||||||
|
|
|
|
|
|
Maintained
|
Momentary
|
||||||
|
Single-pole
|
MTS-102
|
SPDT
|
ON-ON
|
Solder terminal
|
√
|
|
||||||
|
|
MTS-103
|
SPDT
|
ON-OFF-ON
|
Solder terminal
|
√
|
|
||||||
|
|
MTS-112
|
SPDT
|
ON-(ON)
|
Solder terminal
|
|
√
|
||||||
|
|
MTS-123
|
SPDT
|
(ON)-OFF-(ON)
|
Solder terminal
|
|
√
|
||||||
|
Double-pole
|
MTS-202
|
DPDT
|
ON-ON
|
Solder terminal
|
√
|
|
||||||
|
|
MTS-203
|
DPDT
|
ON-OFF-ON
|
Solder terminal
|
√
|
|
||||||
|
|
MTS-2033
|
DPDT
|
ON-ON-ON
|
Solder terminal
|
√
|
|
||||||
|
|
MTS-212
|
DPDT
|
ON-(ON)
|
Solder terminal
|
|
√
|
||||||
|
|
MTS-223
|
DPDT
|
(ON)-OFF-(ON)
|
Solder terminal
|
|
√
|
||||||
|
Thrid-pole
|
MTS-302
|
3PDT
|
ON-ON
|
Solder terminal
|
√
|
|
||||||
|
|
MTS-303
|
3PDT
|
ON-OFF-ON
|
Solder terminal
|
√
|
|
||||||
|
Four-pole
|
MTS-402
|
4PDT
|
ON-ON
|
Solder terminal
|
√
|
|
||||||
|
|
MTS-403
|
4PDT
|
ON-OFF-ON
|
Solder terminal
|
√
|
|
||||||
Product Certified
Workshop
Yueqing Daier Electron Co., Ltd is a professional manufacturer of electrical switches in Yueqing, China. Yueqing is famous and ranked as "the city of electronics of China", so we share the best electronics resources and talents, and have excellent logistics chains too.We are engaged in producing 9 categories and about 2,000 models of rocker switches,push button switches, toggle switches, micro switches, key switches,tact switches,dip switches,auto switches, indicator lights, fuse holders, power sockets, knobs, jacks and etc.
Electrical 3A 250VAC 2 Position 12V Micro DPDT Push Button Toggle Switch 6P Momentary Mini Toggle Switch
Most of our products have passed safety certifications as UL, cULus, CE, CCC, CQC. and lots of our products are made with RoHS compliant materials.80% of our products are exported to Europe, North and South America.
We satisfy all our customers with advanced products, competitive prices, fast delivery and one-stop service.With a principle of being creative, advanced and honest, we are always improving our products and services to better satisfy you customers. We believe it's our mission to boost our customer's business, and then our customers will reward us with leadership sales and long-term relationships.Join us, and we will be your best choice!
Exhibition
Our team
FAQ
1.Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every product, either by laser, or by moulds.
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
A: Yes. we have a research & development dept.
