- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
18-150kg
-
Size:
-
customization
-
Weight (KG):
-
10 kg
-
Product name:
-
FRP Tank for water treatment
-
Material grade:
-
food grade
-
Application:
-
Filtration Softening Storage Ion-exchange
-
Maximum operating pressure:
-
6bar/100Psi
-
Maximum operating temperature:
-
120℉/50℃
-
Liner material::
-
polyethylene
-
Outer material:
-
FRP and Epoxy resin
-
Tank material:
-
Fiberglass reinforced ABS material
-
Use location:
-
central water purification
-
Color:
-
green/blue/black/grey
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Aonie
-
Material:
-
carton box
-
Weight:
-
18-150kg
-
Size:
-
customization
-
Weight (KG):
-
10 kg
-
Product name:
-
FRP Tank for water treatment
-
Material grade:
-
food grade
-
Application:
-
Filtration Softening Storage Ion-exchange
-
Maximum operating pressure:
-
6bar/100Psi
-
Maximum operating temperature:
-
120℉/50℃
-
Liner material::
-
polyethylene
-
Outer material:
-
FRP and Epoxy resin
-
Tank material:
-
Fiberglass reinforced ABS material
-
Use location:
-
central water purification
-
Color:
-
green/blue/black/grey
Product Description

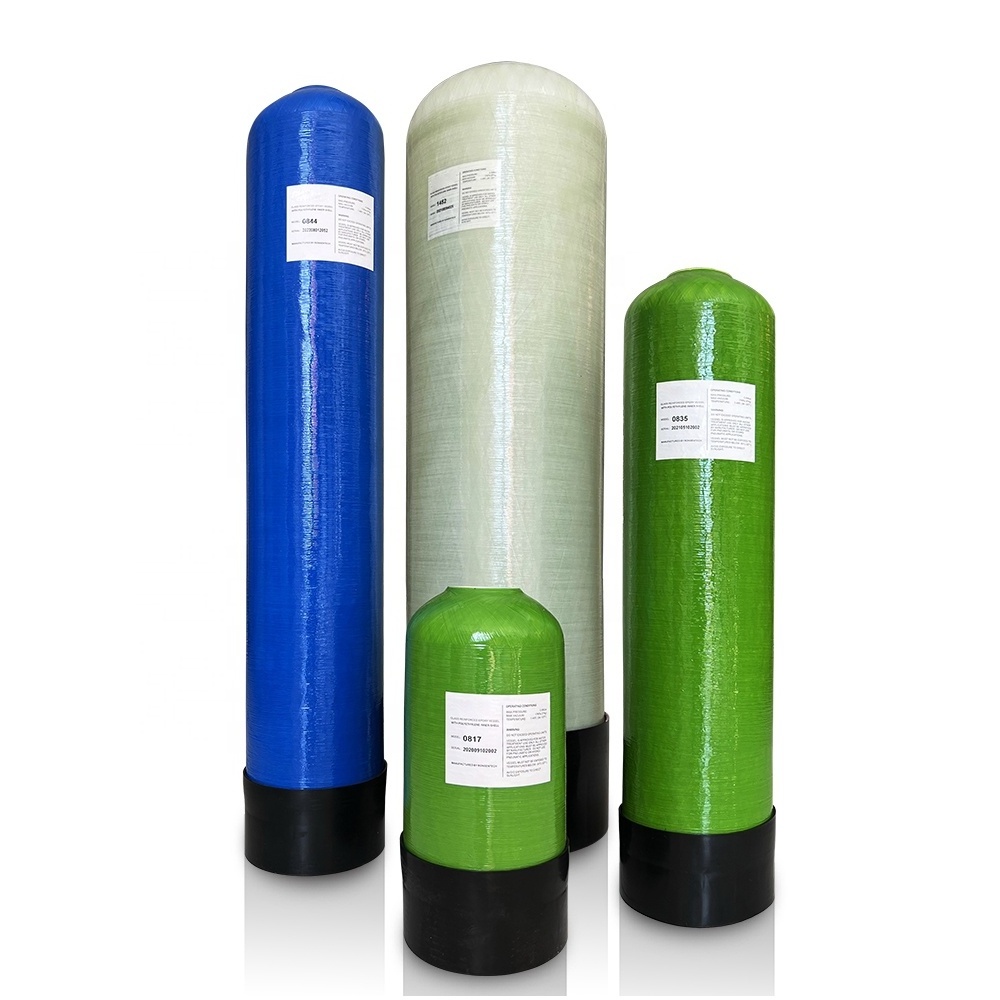

FRP Tank for water treatment
| FRP Tank Parameters (Common model) | ||||||
| NO. | Specifications | Opening | flow | volume | ||
| inch | Size(mm) | Upper opening | Lower opening | |||
| 1 | 817 | Φ 200 × 450 | 2.5''NPSM Thread | no | 0.1-0.3 | 10.9 |
| 2 | 835 | Φ 200 × 890 | 0.2-0.4 | 25.0 | ||
| 3 | 844 | Φ 200 × 1100 | 0.2-0.5 | 32.6 | ||
| 4 | 1017 | Φ 250× 450 | 0.2-0.4 | 16.7 | ||
| 5 | 1035 | Φ 250 × 890 | 0.3-0.6 | 39.4 | ||
| 6 | 1054 | Φ 250 × 1400 | 0.6-1.5 | 63.5 | ||
| 7 | 1252 | Φ 300 × 1400 | 1.6-2.2 | 85.9 | ||
| 8 | 1265 | Φ 300 × 1600 | 1.8-2.4 | 109.1 | ||
| 9 | 1465A | Φ 350 × 1600 | 2.5-3.0 | 147.0 | ||
| 10 | 1665A | Φ 400 × 1600 | 3.2-4.5 | 191.3 | ||
| 11 | 2069 | Φ 500 × 1750 | 4''NPSM Thread | no | 4.0-5.5 | 310.4 |
| 12 | 2465 | Φ 600 × 1900 | 6.2-8.2 | 426.5 | ||
| 13 | 3065 | Φ 750 × 1900 | 7.2-12.2 | 645.7 | ||
| 14 | 3665 | Φ 900 × 1900 | 13.2-16.2 | 914.6 | ||
| 15 | 4065 | Φ 1000 × 1900 | 18-28 | 1148.8 | ||
| 16 | 4872 | Φ 1200 × 2300 | 6" FLG Thread | up6"FLG | 28-30 | 1786.2 |
| 17 | 6079 | Φ 1500 × 2400 | 40-55 | 3086.3 | ||
| 18 | 6386 | Φ 1600 × 2450 | 60-80 | 3424.5 | ||
| 19 | 7279 | Φ 1800× 2600 | 70-90 | 4819.4 | ||
| 20 | 8079 | Φ 2000 × 2600 | 80-100 | 5202.0 | ||
