Quick Details
-
Brand Name:
-
WINYOU
-
Model Number:
-
1000
-
Dimension(L*W*H):
-
Standard Size
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
1 year ,free spare parts
-
Standard accesorries:
-
400-8 wheel,3pcs,4group dry-land blades
-
Mini.order:
-
accept trail order
-
Fuel Tank Capacity(L):
-
4.0L
-
Certification:
-
ISO9001
Quick Details
-
Warranty:
-
1 Year
-
Use:
-
tillage,ditching,ploughing,hoeing
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
WINYOU
-
Model Number:
-
1000
-
Dimension(L*W*H):
-
Standard Size
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
1 year ,free spare parts
-
Standard accesorries:
-
400-8 wheel,3pcs,4group dry-land blades
-
Mini.order:
-
accept trail order
-
Fuel Tank Capacity(L):
-
4.0L
-
Certification:
-
ISO9001

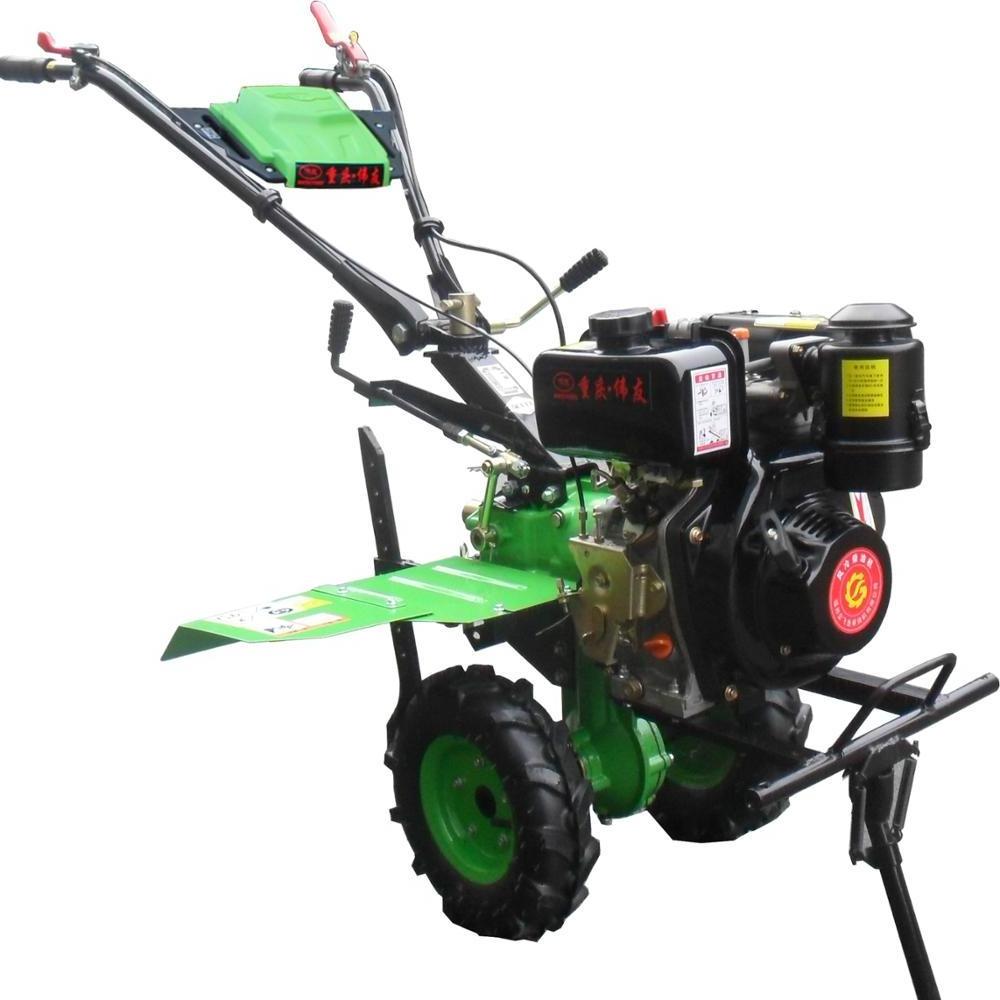

Winyou brand tillers can equipped with many kinds of rotary blades suit for different earth use as dry-land , paddy- land ,sandland, wasteland, hilly field , green house, fruit garden etc. normal engine power of 5.5hp,6.0hp, 6.5hp , 7hp , 9.0hp engine type with diesel and gasoline, air cooling . tiller efficiency can reach 1.2-1.8Mu/ hour. Mostly used in agricultural greenhouse, tobacco, nurseries, orchard, tea garden cultivating and planting work. With the characteristic of easy weight, small volume, simple structure, convenient operation, easy maintain and lower fuel consumption .
| Model No. | WY1000D | WY1000E | WY1100A | WY1100B/E | |
| Tilling scope (mm) | 800-1000 | 800-1000 | 800-1100 | 800-1100 | |
| Tilling depth (mm) | 150-300 | 150-300 | 150-300 | 150-300 | |
| Transmission type | Gear | Gear | Gear | Gear | |
| Transmission oil (L) | 1.0L | 1.0L | 1.1 | 1.1 | |
| Transmission Material | Aluminum + Cast iron | Aluminum + Cast iron | Aluminum + Cast iron | Aluminum + Cast iron | |
| Gear Shifting | 0,1,2,3,-1 | 0,1,2,3,-1 | 0,1,2,-1 | 0,1,2,-1 | |
| Diesel Engine | |||||
| Engine model | WY173F | WY176F | WY178F | WY186F | |
| Engine Type | Single-cylinder, Air-cooled, Diesel Engine | ||||
| Displacement (cc) | 284 | 308 | 296 | 406 | |
| Bore×Stroke(mm) | 73 x68 | 76x68 | 78x62 | 86x70 | |
| Horse Power (HP) | 6 | 7 | 5.5 | 9 | |
| Max power output(HP/rpm) | 4.41(6)/3000 | 5.15(7)/3000 | 4.0(5.5)/3600 | 6.3(9.0)/3600 | |
| Starter | Manual start/electric start | ||||
| Max torque(N•m/rpm) | / | / | 4.4kw/3600 | 6.6kw/3600 | |
| Fuel tank capacity (L) | 4 | 4 | 3.5 | 5.5 | |
| Oil capacity (L) | 0.9 | 0.9 | 1.1 | 1.65 | |
| Packing Details | |||||
| Carton Dimension(mm) | 800x540x800 | 800x540x800 | 1060x560x900 | 1060x560x900 | |
| N/G•W(kg) | 93/401 | 93/104 | 115/135 | 115/135 | |
The cast iron gear box Assey
6.0hp diesel engine 173F for 1000
Our tillers are easy to operate :
Tilling Blades and Plows / Plough/Furrow :
Rubber wheels/Iron Wheels:
Standard Packing:
mini gasoline rotary tiller machine/ diesel rotary tiller machine/diesel farm rotocultivator package
