Quick Details
-
Brand Name:
-
Lejun
-
Model Number:
-
LJ-WMF001
-
Product name:
-
3D Bend Fence
-
Wire diameter:
-
3.0mm-6.0mm
-
Height:
-
1.0m-6.0m
-
Mesh Size:
-
50x50mm,50x100mm and 50x200mm
-
Fencing style:
-
Welded Mesh Fence
-
Length:
-
2.5m and 3m
-
Square Post:
-
50x50mm and 60x60mm
-
Color:
-
Green and Black
-
Design:
-
V Mesh
-
MOQ:
-
50 Sets
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, TFT, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Lejun
-
Model Number:
-
LJ-WMF001
-
Product name:
-
3D Bend Fence
-
Wire diameter:
-
3.0mm-6.0mm
-
Height:
-
1.0m-6.0m
-
Mesh Size:
-
50x50mm,50x100mm and 50x200mm
-
Fencing style:
-
Welded Mesh Fence
-
Length:
-
2.5m and 3m
-
Square Post:
-
50x50mm and 60x60mm
-
Color:
-
Green and Black
-
Design:
-
V Mesh
-
MOQ:
-
50 Sets

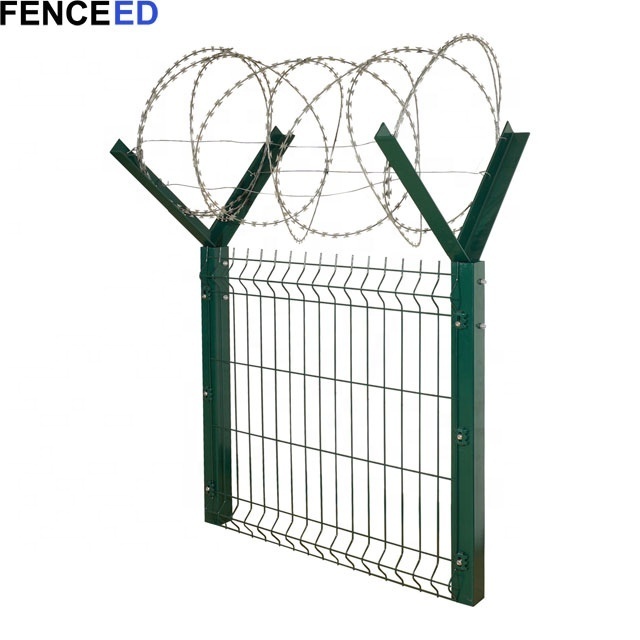

High Quality PVC Coated 3D Bend Fence/ Welded Wire Mesh Airport Security Fence with Razor Wire.
Curvy fence panel can also be called 3D fencing. It is mostly made of stainless steel or carbon steel. Firstly, the workers weld the wires into panel, and then adopt bending machine to bend the wires on the short side of the rectangular shape, so the V-shaped curves are produced. It is important to note that the quantity of V-shaped curve depends on the height of welded wire panel. This uses the principle of triangle stability to provide additional strength and rigidity for the panel. In addition, curvy fence panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand.
Product Description
3D Curvy Fence Panel
3D Curvy fence panel is a security and attractive fence with beautiful appearance, and it is ideal for residential area and
entertainment venues.
entertainment venues.
Feature
1.
High strength, the triangular structure makes the panel more strong and rigid.
2.Anti-corrosion, anti-rust and weather resistance.
3.High visibility.
4.Beautiful appearance, the V-shaped bending curves and various colors make curvy fence panel attractive.
5.Can be installed in many lands, such as concrete, slope, general land surface, sand or rock.
6.Easy to install, curvy panel fence can be easily connected with the post.
7.Long lifespan, the coating covers the entire panel and accessories.
2.Anti-corrosion, anti-rust and weather resistance.
3.High visibility.
4.Beautiful appearance, the V-shaped bending curves and various colors make curvy fence panel attractive.
5.Can be installed in many lands, such as concrete, slope, general land surface, sand or rock.
6.Easy to install, curvy panel fence can be easily connected with the post.
7.Long lifespan, the coating covers the entire panel and accessories.
Specification
|
Specification – 3D Curvy fence panel
|
|
|
|
Material
|
Carbon steel wire, stainless steel wire.
|
|
|
Surface treatment
|
Galvanized, polyester coated, PVC coating.
|
|
|
Wire Dia
|
2–6.5 mm.
|
|
|
Spacing between vertical wire (mm)
|
50, 55, 60, 75, 80.
|
|
|
Spacing between horizontal wire (mm)
|
50, 100, 150, 200.
|
|
|
Panel width
|
1.5–4.0 mm.
|
|
|
Panel height
|
0.6–3.0 m.
|
|
|
Curve quantity
|
2, 3 or 4.
* 0.6–1.3 m, 2 curves. * 1.3–1.6 m, 2 or 3 curves. * 1.6–1.9 m, 3 curves. * 1.9–2.1 m, 3 or 4 curves. * 2.1–2.4 m, 4 curves. |
|
|
Color
|
RAL 6005 green, RAL 9005 black, RAL 5010 blue, RAL 3000 red, RAL 9010 white. All RAL color can be customized.
|
|
|
Installation method
|
flange or directly buried in the ground.
|
|
|
Specification – Curvy fence post
|
|
|
|
Material
|
high grade steel for maximum strength and rigidity.
|
|
|
Post type
|
square, round, peach.
|
|
|
Post dimension
|
* Square (mm): 40 × 40, 50 × 50, 60 × 60, 70 × 70.
* Round (mm): 38, 40, 42. * Peach (cm): 5 × 7, 7 × 10. |
|
|
Post plate thickness
|
1.0–3.0 mm.
|
|
|
Color
|
same as panel.
|
|
|
Post cap
|
metal cap or plastic cap.
|
|
Welded Wire Mesh Fence Panels Sizes
The welded wire mesh fence panels have a width of 2500mm and heights ranging from 600mm to 2440mm. There have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). Mesh sizes are 200 x 50mm , and 100mm x 50mm for the beam sections. The heavy wires guarantee strength and rigidity. Different sizes can be made according to customer detailed requirements.
Applications:
3D security welded wire fence could be used in residential areas, recreational places, public buildings, industrial facilities,
airports, schools, playgrounds, sports stadiums.
airports, schools, playgrounds, sports stadiums.
Our Factory
Packing & Delivery
Package
Panel: wrapped with plastic film in carton box and then put on metal/wooden pallet.
Post: wrapped with plastic strip and in bulk or on metal/wooden pallet.
Accessories: placed in carton box.
Post: wrapped with plastic strip and in bulk or on metal/wooden pallet.
Accessories: placed in carton box.
