Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWBASE
-
Car Model:
-
bus
-
Car Make:
-
bus ,truck,van,vehicle
-
Model Number:
-
CK200217
-
Power supply:
-
DC24V/DC12V
-
Power:
-
3w
-
Display:
-
LED
-
Protection:
-
IP43
-
EMC:
-
EN50081&EN50082-2
-
Certificate:
-
CE,ISO9001
-
Application:
-
HVAC System Vehicle Air Conditioning
-
Voltage:
-
DC12V/DC24V
Quick Details
-
OE NO.:
-
NA
-
Size:
-
190x80x68mm
-
Warranty:
-
18m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWBASE
-
Car Model:
-
bus
-
Car Make:
-
bus ,truck,van,vehicle
-
Model Number:
-
CK200217
-
Power supply:
-
DC24V/DC12V
-
Power:
-
3w
-
Display:
-
LED
-
Protection:
-
IP43
-
EMC:
-
EN50081&EN50082-2
-
Certificate:
-
CE,ISO9001
-
Application:
-
HVAC System Vehicle Air Conditioning
-
Voltage:
-
DC12V/DC24V

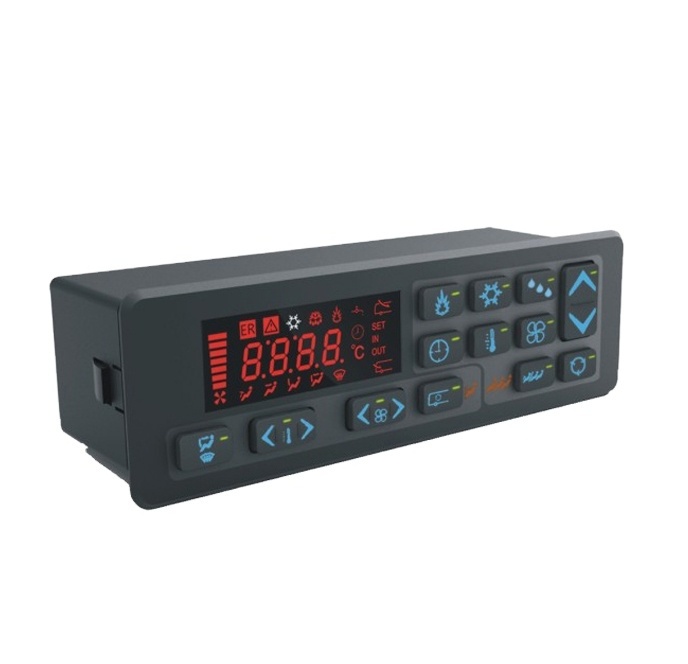

CK200217 Bus climate control system based on SAE J1939.
This is our domain: Cool—warm—fresh—clean—anti-noise.
We manage it all: cooling—heating—ventilation—fresh air device—auto cleaner—anti-noise.
Intelligence and management are of vital importance in the control of all components for optimum bus climate. Behind the efficient and error-free control of heater, air conditioning unit and ventilation, etc, is the intelligence of software based on SAE J1939, while the climate control components such as auto cleaner, anti-noise device, etc are integrate into climate control system.
This sophisticated method of management system is for customers and us to provide individual air conditioning and heating for driver and passengers, and pre-set heater turn-on time and period, to make a comfortable environment enjoying when stepping into bus.
1.Technical data
|
Power supply |
24V(DC20V-DC32V)/12V(DC10V-DC15V) |
|
Power consumption |
3W |
|
Dimensions |
190X80X68 mm |
|
Input |
1) Driver cab temp. sensor 2) Passenger section temp. sensor 3)Pressure error signal 4)Voltage detection 5)Heater error signal |
|
Output |
1) Driver side air-mode control 2) Driver side defrost speed control 3) Driver side evaporator fan speed control 4) Passenger side evaporator fan speed control 5) Passenger side condenser fan speed control 6) Passenger side heater tap control 7) Water pump control 8) Heater control |
|
Display |
LED |
|
Display accuracy |
Temp value, dual digit display. Accuracy, 1 °C |
|
Ambient temperature |
-30°C—80°C 5%-95%RH Non-condensing |
|
Storage temperature |
-10°C—70°C 5%-95%RH Non-condensing |
|
Faceplate level |
IP43 |
|
EMC level |
EN50081&EN50082-2 |
|
Weight |
260g |
2.Main functions:
1.Variety of working modes: cooling, heating, ventilation, heating reservations, auto fresh air, auto air cleaning, driver & passengers individual control, etc.
Error-free and auto emergency system.
- Communication with engine and vehicle instruments.
Main function:
The vehicle climate centralized control system , including control panel, roof-mounted AC module, heater module,driver side cab control module, etc. The control panel communicate with each mould by the CAN bus communication. Hereby, the control panel could realized the centralized control of air condition, heater, driver side, etc. It could control the passenger side and driver side have the independent air-flow mode regulation.
3.Application:
YUTONG
4.Company Philosophy:
FOCUS--ATTENTION--PROFESSIONAL
5.Drawing dimension:
6.Our partners :
7.Company History:
Zhengzhou Newbase Auto Electronics Co.,Ltd is established in 1991.For over 20years,NEWBASE has developed advanced technology strength, strong products capacity and talents of technology development team. Adhering to the company philosophy Focus, Attention, Professional, Newbase devote to leading the vehicle climate control industry. We have made fabulous contribution to the climate control technology development domestic and abroad, while getting high approval from HVAC manufacturer and related enterprises.
Newbase would be keeping going to offer more advance technology and excellent product. We offer kinds of bus air conditioning control panel for your flexible choice. Most items are all popular and universal mounting for your buses air conditioner. Just let us know your special demands, we will give you all the information as soon as possible.
