Quick Details
-
Weight (KG):
-
750
-
Voltage:
-
380V 50/60HZ
-
Place of Origin:
-
LIA
-
Brand Name:
-
KOEN
-
Dimension(L*W*H):
-
185081930*2200mm
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Film
-
Packaging Material:
-
Wood
-
Weight (KG):
-
750
-
Voltage:
-
380V 50/60HZ
-
Place of Origin:
-
LIA
-
Brand Name:
-
KOEN
-
Dimension(L*W*H):
-
185081930*2200mm
Products Description

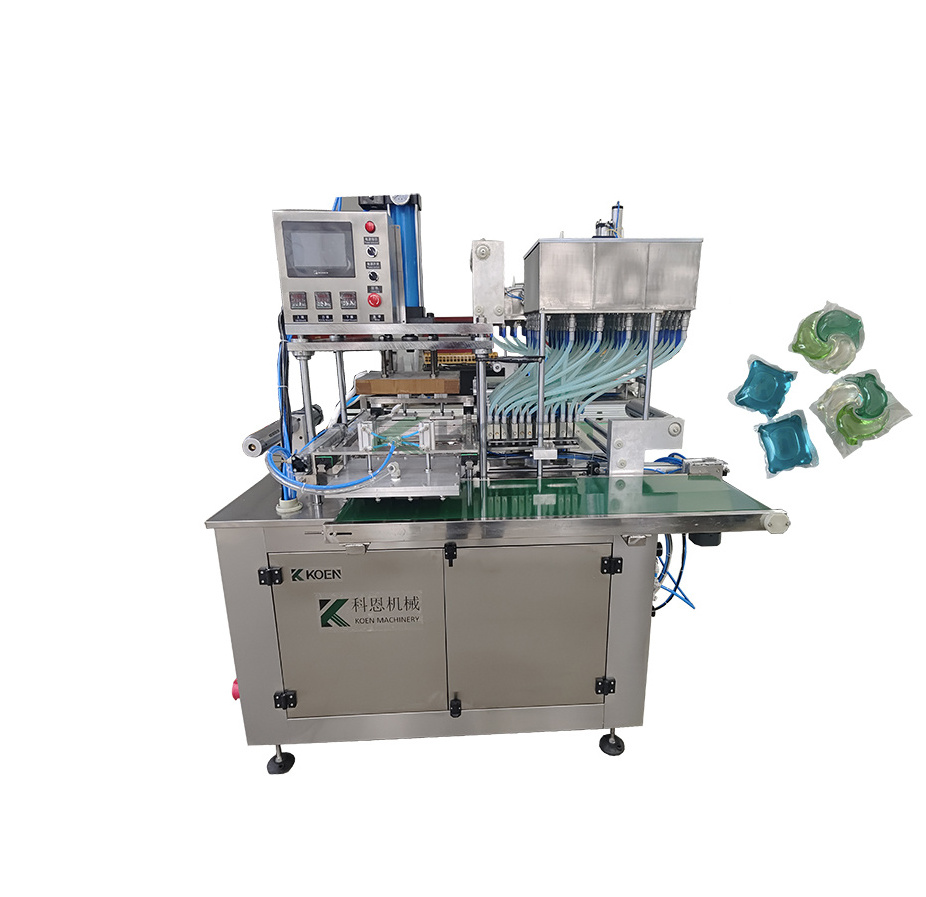

3-chamber liquid powder detergent laundry pods maker making machine
This machine is used to pack and seal the detergent liquid+powder into PVA water soluble PVC film. It is equipped with 16 filling nozzles, which fill the liquid or powder from tank into sealingmould. Machine working function includes automatic film pulling, automatic material feeding (liquid), automatic sealing, and finished product cutting. Machine in PLC control and is equipped with temperature control unit to adjust the heating. Machine is mainly made of SS304, clean and nice. Equipped with vacuum pump, it can help the finished product in good sealing effect.
.
Technical characteristics:
1. Can fill both powder and liquid separately.
1. Can fill both powder and liquid separately.
2. The pods size can be customized according to customer's requirement.
3. Stainless steel 304 case.
4. With PLC touch screen control.
5. The intelligent temperature controller controls the
Product Paramenters
|
1: Equipped with 16 filling nozzles, 4x4 molds
|
|
2: Speed: 32 pcs/minute--(powder or powder+liquid) , 50 pcs/minute--( liquid)
|
|
3: Power: 7.0 kw
4: Air: 0.6Mpa
5:Voltage: 380V 3p 60Hz (can be customized according to your local voltage)
6: Packing weight:15g-35g (also available for customization)
7: Machine size: 1850X1930X2200mm
8:Main machine material: SS304 ( SS316 can becustomized, but need higher cost)
|
