Quick Details
-
Brand Name:
-
Shinho
-
Use:
-
Ribbon Fiber Splicing,Remove the jacket of fiber
-
Warranty Time:
-
6 Months
-
Product name:
-
Ribbon Fiber Thermal Stripper
-
Application:
-
single and ribbon (up to 12 cores) fibers
-
Cladding diameter:
-
125um
-
Fiber Material:
-
Silica glass
-
Heat time:
-
10 seconds default
-
Certification:
-
CE, ROHS
-
Mode:
-
Normal mode, power saving mode
-
Dimensions:
-
155mm (L)X50mm (W)X40mm (H)
-
Weight:
-
267g(inlcuding battery)
Quick Details
-
Type:
-
Testers &Tools
-
Model Number:
-
X-18
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Shinho
-
Use:
-
Ribbon Fiber Splicing,Remove the jacket of fiber
-
Warranty Time:
-
6 Months
-
Product name:
-
Ribbon Fiber Thermal Stripper
-
Application:
-
single and ribbon (up to 12 cores) fibers
-
Cladding diameter:
-
125um
-
Fiber Material:
-
Silica glass
-
Heat time:
-
10 seconds default
-
Certification:
-
CE, ROHS
-
Mode:
-
Normal mode, power saving mode
-
Dimensions:
-
155mm (L)X50mm (W)X40mm (H)
-
Weight:
-
267g(inlcuding battery)
Product Description

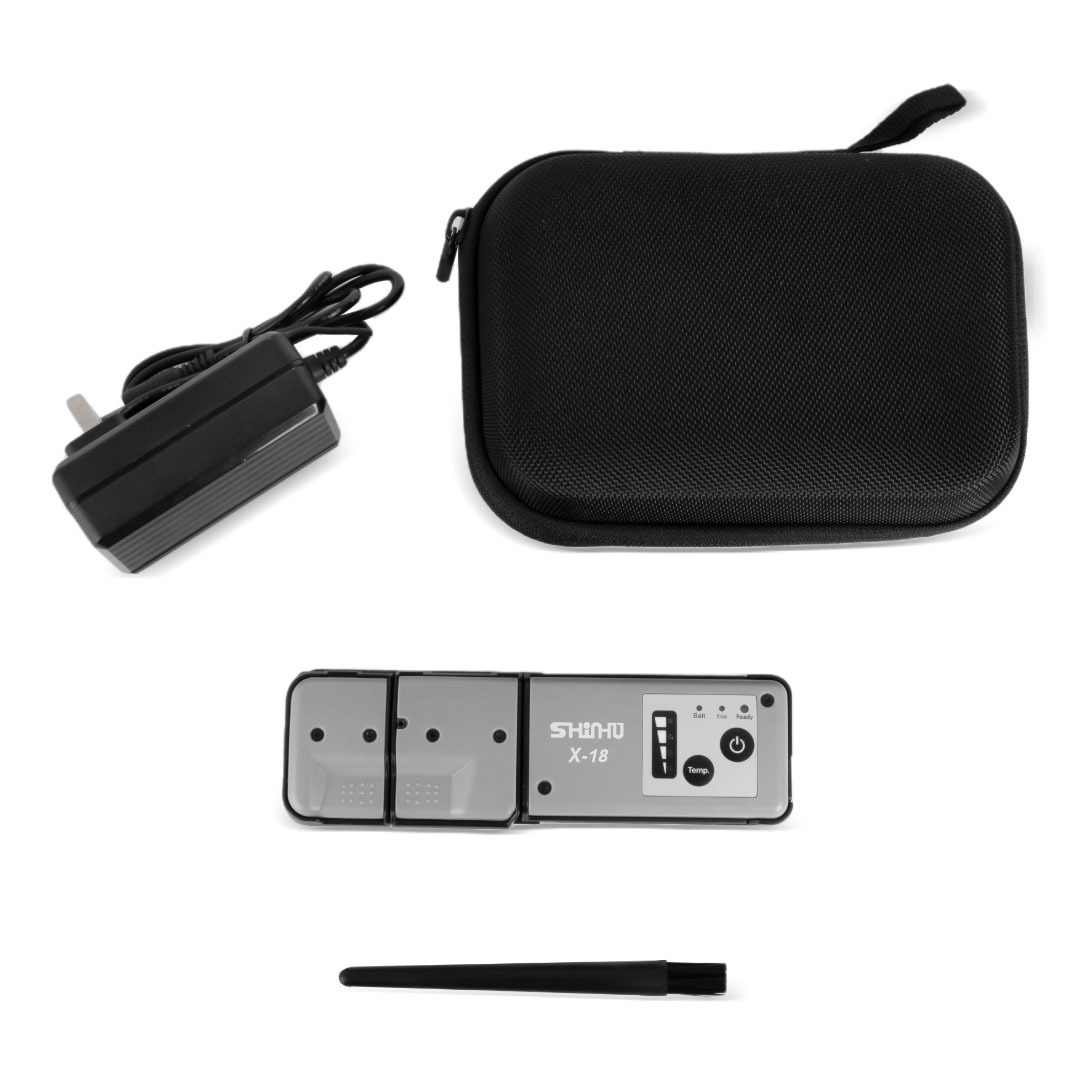

Thermal Stripper for Ribbon Fiber X 18
Shinho X-18 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of single fiber and ribbon cable up to 12 fibers. A good and reliable tool for ribbon fiber splicing work.
Features
* Apply to single and ribbon (up to 12 cores) fibers
* 10 seconds fast heating, 4 levels temperature optional
* Normal and Power saving modes Optional
* A larger battery,2000 mAh
* Small size and light weight, convenient to carry
* Rugged and durable for any tough environment
* Easy to operate and maintain, near zero failure.
* Reach CE, ROHS international standards
* Apply to single and ribbon (up to 12 cores) fibers
* 10 seconds fast heating, 4 levels temperature optional
* Normal and Power saving modes Optional
* A larger battery,2000 mAh
* Small size and light weight, convenient to carry
* Rugged and durable for any tough environment
* Easy to operate and maintain, near zero failure.
* Reach CE, ROHS international standards
Specification
|
Fiber material
|
Silica glass
|
|
Coating material
|
UV curable resin
|
|
Coating diameter
|
Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm
|
|
Cladding diameter
|
125µm
|
|
Coating stripping length
|
Max 30mm
|
|
Fiber types
|
Single fiber, ribbon fiber
|
|
Fiber holder type
|
FH-2,FH-4,FH-6,FH-8,FH-10,FH-12,FH-250,FH-900,FH-U (for 250/900µm fibers)
|
|
Heating mode
|
Normal mode, power saving mode
|
|
Temperature setting
|
Default: 80°C.
Normal mode: 60℃, 80℃ 100℃, 120℃. |
|
Typical heating time
|
Normal mode: 10 seconds for first stripping
Power saving mode: 12~13secs |
|
Battery capacity
|
2000 mAh Li-battery. Full charge time: 3 hours. Support approx. 600 cycles continuous stripping once fully charged at default
temperature. |
|
Power supply
|
AC adapter, input: AC100-240V(50/60HZ), output: DC12V-1A
|
|
Operation environment
|
Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: 0℃ ~ +40 ℃, Wind speed: 15m/s maximum
|
|
Dimension/Weight
|
155mm (L)×50mm (W)×40mm (H) /NW:267g（including battery）
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
