Quick Details
-
Warranty:
-
5 YEARS
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MSP
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1480*670*35mm
-
Operate Temp. scope:
-
-40℃/+85℃
-
Solar Panel Type:
-
Polycrystalline solar panel
-
Voltage at max power(Vmp):
-
18.1V
-
Current at max power(Imp):
-
8.29A
-
Open circuit voltage(Voc):
-
22.2V
-
Short circuit current(Isc):
-
9.01A
-
Size:
-
1480*670*35mm
-
Weight:
-
11.5kg
-
Tolerance:
-
±3%
Quick Details
-
Cell size:
-
2158*1080*35mm
-
Type:
-
Half Cell, All Black, N-TYPE
-
Panel Efficiency:
-
98%
-
Warranty:
-
5 YEARS
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MSP
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1480*670*35mm
-
Operate Temp. scope:
-
-40℃/+85℃
-
Solar Panel Type:
-
Polycrystalline solar panel
-
Voltage at max power(Vmp):
-
18.1V
-
Current at max power(Imp):
-
8.29A
-
Open circuit voltage(Voc):
-
22.2V
-
Short circuit current(Isc):
-
9.01A
-
Size:
-
1480*670*35mm
-
Weight:
-
11.5kg
-
Tolerance:
-
±3%
We have been in the solar energy industry for 14 years, and our products cover solar inverters, solar panels, solar panels, solar charge controllers, etc. We are a provider of solar energy solutions. For more detailed information,
please contact me!

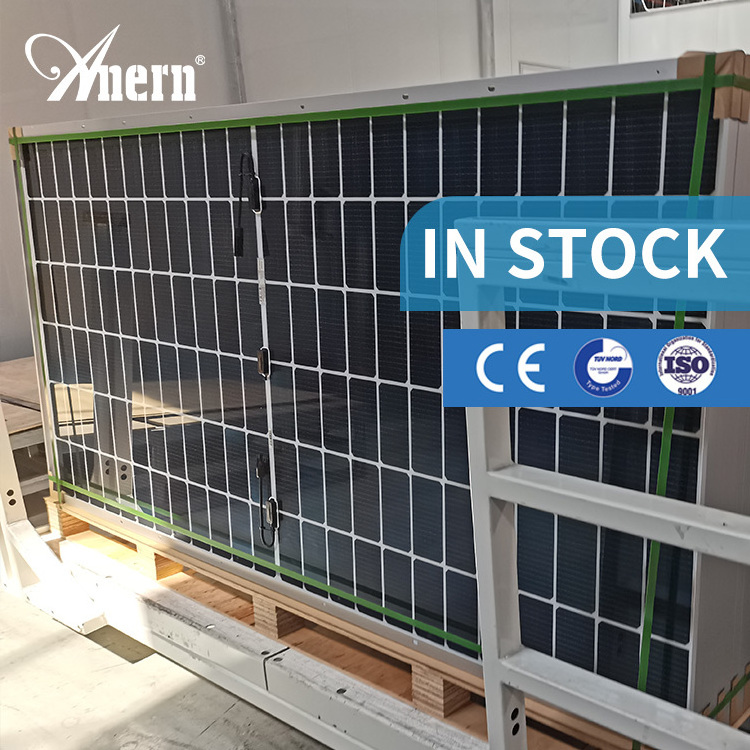

Half Cells solar Panel
Key Features of 540W Half Cell Monocrystalline solar panel：
540W Half-cell monocrystalline solar modules have solar cells that are cut in half, which improves the module’s performance and
durability. When solar cells are halved, their current is also halved, so resistive losses are lowered and the cells can produce a
little more power.
540W Half-cell monocrystalline solar modules have solar cells that are cut in half, which improves the module’s performance and
durability. When solar cells are halved, their current is also halved, so resistive losses are lowered and the cells can produce a
little more power.
|
Modules
|
AN10-530W(144)
|
AN10-540W
|
AN10-550W
|
||
|
Maximum Power Pmax
|
530W
|
540
|
550
|
||
|
Open Circuit Voltage
|
49.30V
|
49.60V
|
49.90
|
||
|
Short Cuit Current
|
13.72A
|
13.86
|
14.00
|
||
|
Maximum Power Voltage
|
41.31V
|
41.64V
|
41.96V
|
||
|
Maximum Power Current
|
12.83A
|
12.97A
|
13.11A
|
||
|
CELLS
|
182*91 Mono perc cells
|
|
|
||
|
CELLS QTY
|
144(6×24）
|
|
|
||
|
Max System Voltage
|
DC1000/DC1500
|
|
|
||
|
Open Circuit Voltage Temp
|
-0.282
|
|
|
||
|
Short Circuit Current Temp
|
0.041
|
|
|
||
|
Peak Power Temp
|
-0.387
|
|
|
||
|
Operate Temp Scope
|
-40 to 85
|
|
|
||
|
Nominal Operating Temp
|
45±2
|
|
|
||
Shingled Solar Panels
Overlapping Solar Panel technology is simpler and more reliable,avoiding the defects such as deviation of ribbon and cold
soldering.
soldering.
Advantages of Shingled Monocrystalline Solar Modul：
1.The solar panel conversion efficiency is improved
1.The solar panel conversion efficiency is improved
2.Effectively reduce the power loss and hot spots caused by shading
3.Reduce the impact of defective cells
3.Reduce the impact of defective cells
|
Item No.
|
AN-SMSP-550W
|
AN-SMSP-500W
|
AN-SMSP-450W
|
AN-SMSP-400W
|
|
PM(w)
|
550W
|
500W
|
450W
|
400W
|
|
Maximum Power Voltage
|
38.76V
|
35.34V
|
31.92V
|
35.34V
|
|
Maximum Power Current
|
14.19A
|
14.14A
|
14.09A
|
11.31A
|
|
Open Circuit Voltage
|
45.74V
|
41.70V
|
37.66V
|
41.70V
|
|
Short Circuit Current
|
15A
|
14.96A
|
14.90A
|
11.96A
|
|
Size
|
2148*1186*35mm
|
2148*1060*35mm
|
2148*990*35mm
|
1730*1060*35mm
|
|
Weight
|
28.1kg
|
25kg
|
23.4kg
|
20.2kg
|
Monocrystalline Solar Panel
Monocrystalline solar panel：
Both mono type solar panel adopt most advanced PERC cells technology, realizing higher module conversion efficiency. Black silicon cells are used, with lower reflection, so as to improve power generation output.
Both mono type solar panel adopt most advanced PERC cells technology, realizing higher module conversion efficiency. Black silicon cells are used, with lower reflection, so as to improve power generation output.
|
Power
|
Vmp
|
Imp
|
Dimension
|
|
310W
|
33.7V
|
9.2A
|
1640 × 992 × 35 mm
|
|
350W
|
38.8V
|
9.02A
|
1956 × 992 × 40 mm
|
|
380W
|
39.5V
|
9.62A
|
1956 × 992 × 40 mm
|
|
450W
|
48.1V
|
9.36A
|
1956 × 1310 × 40 mm
|
|
500W
|
48.7V
|
10.27A
|
1956 × 1310 × 40 mm
|
Anern Factory
Supporting one-stop procurement, our product categories are complete; There is a specialized production line with guaranteed quality; Batch purchase supports OEM/ODM and provides professional installation guidance. Welcome to contact us!
Project & Feedback
One-stop new energy solution provider！we are the one of the most professional solar module manufacturers and whole solar power system supplier
