Quick Details
-
Brand Name:
-
ZL
-
Model Number:
-
ZL-7056
-
Name:
-
Water Vapor Permeability Test Chamber
-
Grinding diameter:
-
250 * 190mm
-
Crushing capacity:
-
130-200 kg / h
-
Fixed knife:
-
2
-
Knife:
-
5
-
Volume (W*D*H):
-
750 * 620 * 1040mm
-
Weight:
-
280 Kg
Quick Details
-
Warranty:
-
2 years, 24 months
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZL
-
Model Number:
-
ZL-7056
-
Name:
-
Water Vapor Permeability Test Chamber
-
Grinding diameter:
-
250 * 190mm
-
Crushing capacity:
-
130-200 kg / h
-
Fixed knife:
-
2
-
Knife:
-
5
-
Volume (W*D*H):
-
750 * 620 * 1040mm
-
Weight:
-
280 Kg

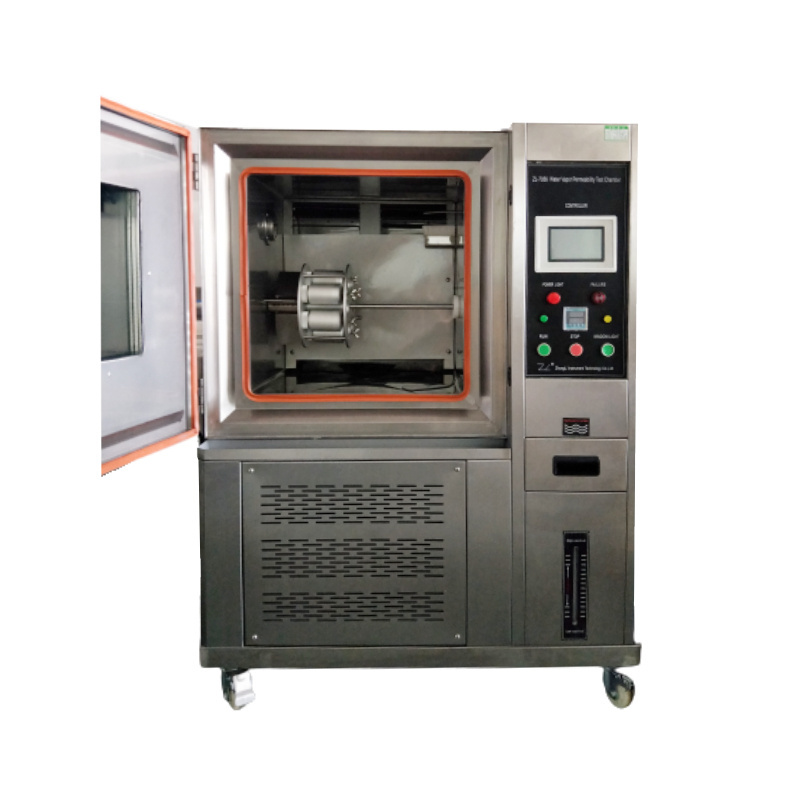

ISO 20344 ASTM E96 Water Vapor Transmission Tester Fabric Moisture Permeability Tester
Equipment description:
The water vapour permeability of the upper and the upper shoe (including leather and lining) was tested in the specified environment of 20 ° C and 65% RH.
All the outer boxes are made of stainless steel paint, solid and beautiful.
Internal use of imported compressors, programmable temperature and humidity controller for temperature and humidity control;
Human-machine interface touch operation, intuitive and intelligent.
Meet the standard:
GB/T 20991, SATRA TM172, EN / ISO 20344
Technical parameters:
|
1.Inner box material |
stainless steel grade mirror light board (SUS 304) |
|
2. Carton material |
stainless steel matte line processing (SUS 304) |
|
3. Insulation material |
hard foam |
|
|
|
|
1. Temperature range |
0- 100 ° C |
|
2. Temperature fluctuation |
± 0.5 ° C |
|
3 temperature uniformity |
2 ° C |
|
4. Temperature Rise Efficiency |
It takes about 30 minutes from +20 ° C to 100 ° C |
|
5. Cooling time |
40 minutes from +20 ° C to 0 ° C |
|
6. Humidity range |
30 - 95% R.H |
|
7. Humidity fluctuation |
± 2.5% R.H |
|
8. Humidity uniformity |
3.0% R.H |
|
9. Bottle mouth diameter |
about 30 mm |
|
10. Test plate speed |
75 ± 5 cpm |
|
11. Test temperature |
normal temperature RT-60 ° C, accuracy ± 0.1 ° C |
|
12. Specimen size |
34 mm |
|
13. Fan size |
90 x 75 mm |
|
14. Fans |
3 pcs |
|
15. Fan angle |
parallel to the axis 120 |
|
16. Fan Speed |
1400 cpm |
|
17. Weight |
240 kg |
|
18. Power Supply |
1 , AC220V, 50Hz, 15A |
