greatest weight of sand cores:
-
3.2kg
-
heating power:
-
6.5kw
-
Itinerary of core-pulling:
-
125mm
-
Net Weight:
-
430kg
-
Size of heating plate:
-
350x200mm
-
Size of Machine:
-
1250x700x1850mm
-
Itinerary Of plunger under pressure:
-
30mm
-
the biggest size of core boxes:
-
350x260x160mm
-
Name:
-
automatic Foundry Core Machinery Hot Box Core Shooter Machine
-
Application:
-
foundry sand core making
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DELIN Sand core shooting machine
-
Marketing Type:
-
Core Shooter Machine
-
greatest weight of sand cores:
-
3.2kg
-
heating power:
-
6.5kw
-
Itinerary of core-pulling:
-
125mm
-
Net Weight:
-
430kg
-
Size of heating plate:
-
350x200mm
-
Size of Machine:
-
1250x700x1850mm
-
Itinerary Of plunger under pressure:
-
30mm
-
the biggest size of core boxes:
-
350x260x160mm
-
Name:
-
automatic Foundry Core Machinery Hot Box Core Shooter Machine
-
Application:
-
foundry sand core making

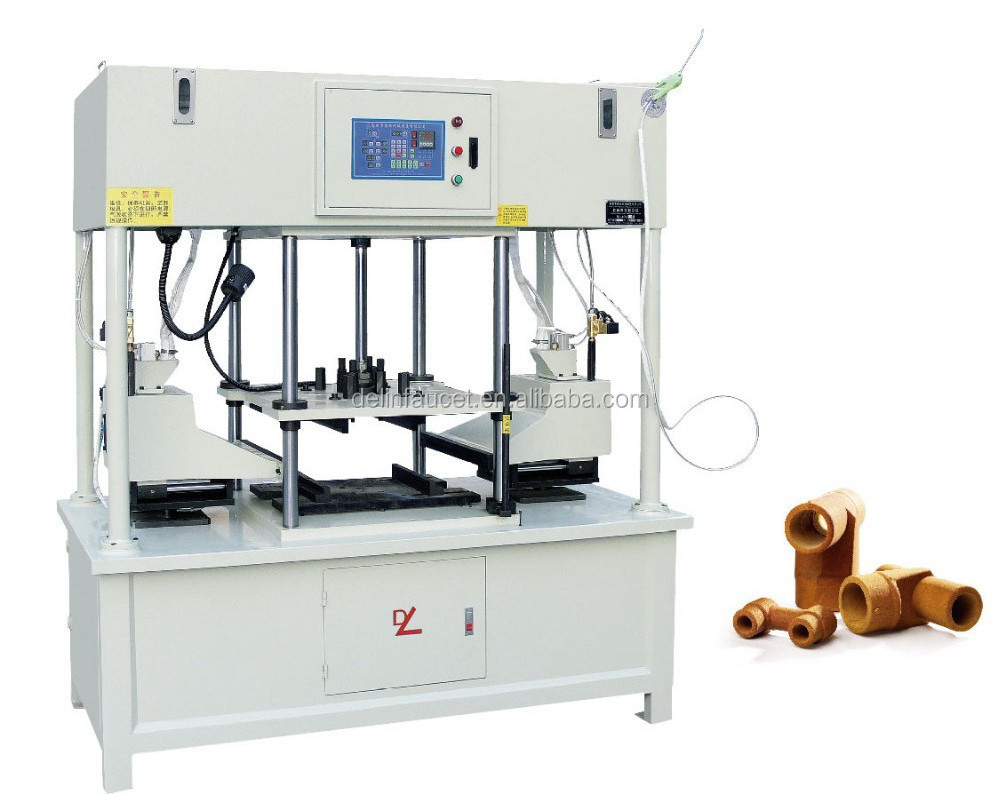

Foundry Core Machinery Hot Box Core Shooter Machine
Introduction Foundry Core Machinery Hot Box Core Shooter Machine :
1. Application and applicable scope
DL-400 heated core box shooter is a heated core box core-making equipment with a four-column operable structure which can be operated manually or automatically. It is applicable to sand core with a qualitative properties less than 3.2kg. Its working principle is to shoot the dry resin bonded sand into a heated core-box. After being rapidly hardened to a certain thickness, high quality sand core with a smooth surface and precise dimension is obtained.
Foundry Core Machinery Hot Box Core Shooter Machine Characteristics & Applications:
The machine mainly consists of following parts
(1) Sand storage hopper
(2) Left-and-right sand shooting mechanism
(3) Base-frame
(4) Electrical control system
(5) Air control system
(6) Die clamping mechanism
(7) Die holder mechanism
(8) Air storage chamber
DL-600 Sand Core Shooting Machine Technical Data:
| Greatest Weight of sand cores | 5kg*2 |
| the biggest size of core boxes | 500*500*250mm |
| left and right itinerary of plunger | 175mm |
| the longest itinerary of clamping | ≤300mm |
| net weight of machine | 855kg |
| heating power | 15kw |
| size of machine | 1850*800*2100mm |
| According to customers' requirement |
add core-pulling at frontal and back |
Core Shooter Machine Working Procedure:
First, core box clamps ---- sand shooting head clamps ---- sand shooting ---- shooting head turns back ---- heating ---- core pulling returns ---- core box opens ---- die holder
Then, keep go on
Core box clamps ---- core pushing ---- shooting head clamps ---- sand shooting ---- shooting head turns back ---- heating ---- core pulling ---- core box opens ---- die holder
Last, repeat the above steps,cycle production
