Quick Details
-
Interface:
-
1*RF interface
-
Ethernet port:
-
2 RJ45 Port ,1*External antenna,1*Internal antenna
-
Bandwith:
-
6-8MHz
-
Docsis:
-
DOCSIS2.0
-
Product name:
-
video to ethernet adapter
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIBSYS
-
Model Number:
-
DB-CM212
-
Interface:
-
1*RF interface
-
Ethernet port:
-
2 RJ45 Port ,1*External antenna,1*Internal antenna
-
Bandwith:
-
6-8MHz
-
Docsis:
-
DOCSIS2.0
-
Product name:
-
video to ethernet adapter

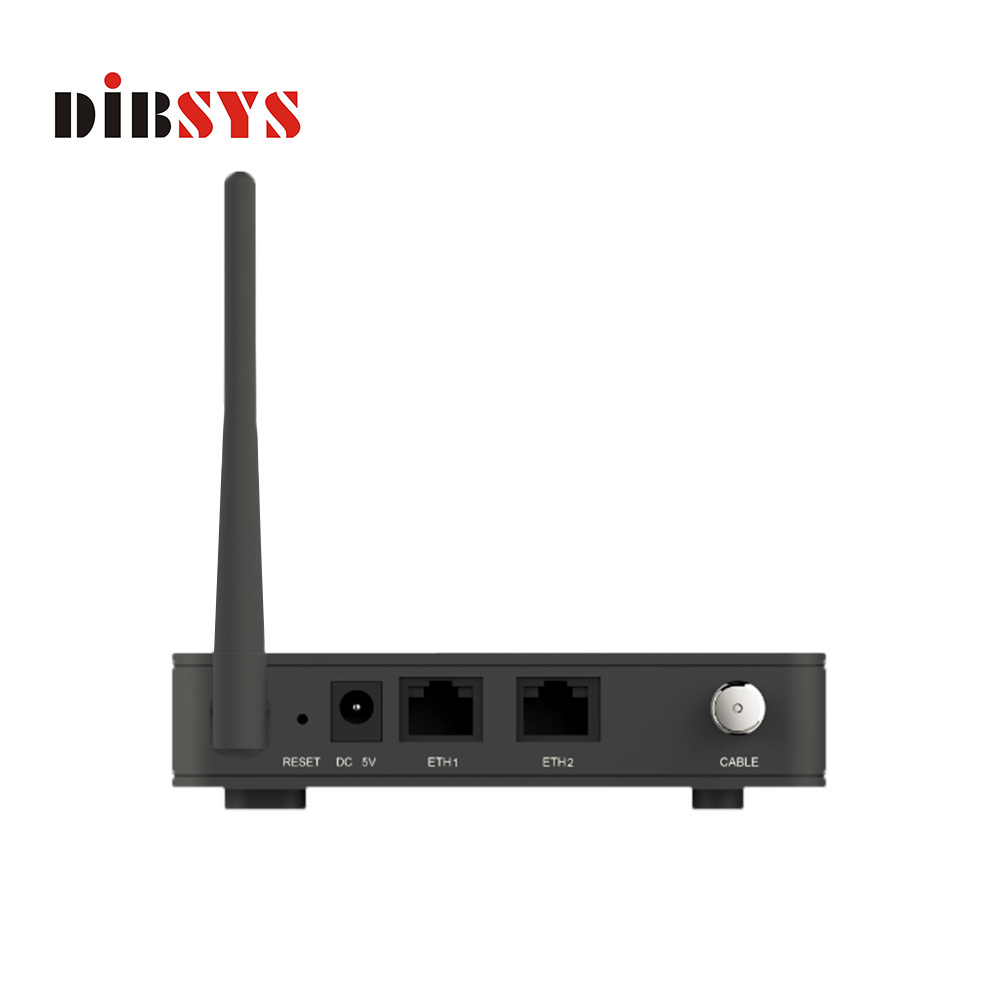

cmts docsis 2.0 video to ethernet adapter,Multimedia Terminal Adaptor(MTA) media streamer Cable modem
Overview
DOCSIS system include CMTS(Headend cable network ) and CM(user end).The main function of DOCSIS Cable Modem system is transparently transmitting IP packets between the front end and the user end.
After the Modem Cable power, the downlink frequency of the front end is automatically searched,and the downstream frequency is found, the uplink channel is determined from the downlink data.CMTS is connected with the front-end device, and exchange information, including the upstream level, the Dynamic Host Configuration Protocol (DHCP) and the IP address of the small file transfer protocol (TFTP) server, etc.Modem Cable has online features, even if the user does not use, as long as the power is not cut off, and the front end always to maintain the exchange of information, the user can always on-line.
Cable moderm has memory function, when the power is powered up, the data before the power storage are exchanged with the front data , and can quickly complete the search proce
features
●Compact design
●The definition is according to C-DOCSIS standard, meet Europe DOCSIS 2.0
●1x 2x 4x 10/100M BASE-T RJ45 Ethernet adaptive port and Wifi, 1 RF input
●Downstream frequency is 108MHz to 860MHz, 64QAM, 256QAM and 1024QAM
●Upstream frequency is 5 to 65MHz, QPSK, 8/16/32/64/128/256QAM
Parameter
●2 FE port
●11n, 1×1, 150Mbps
●multi-SSID, IPv6, AES encrypt
