Quick Details
-
Length of CAT-6 cable between Rx and TX:
-
Up to 60 meters
-
Max bandwidth:
-
165MHz
-
Max baud rate:
-
4.95Gbps
Quick Details
-
Brand Name:
-
Blank
-
Model Number:
-
HD-EXS
-
Place of Origin:
-
China
-
Length of CAT-6 cable between Rx and TX:
-
Up to 60 meters
-
Max bandwidth:
-
165MHz
-
Max baud rate:
-
4.95Gbps

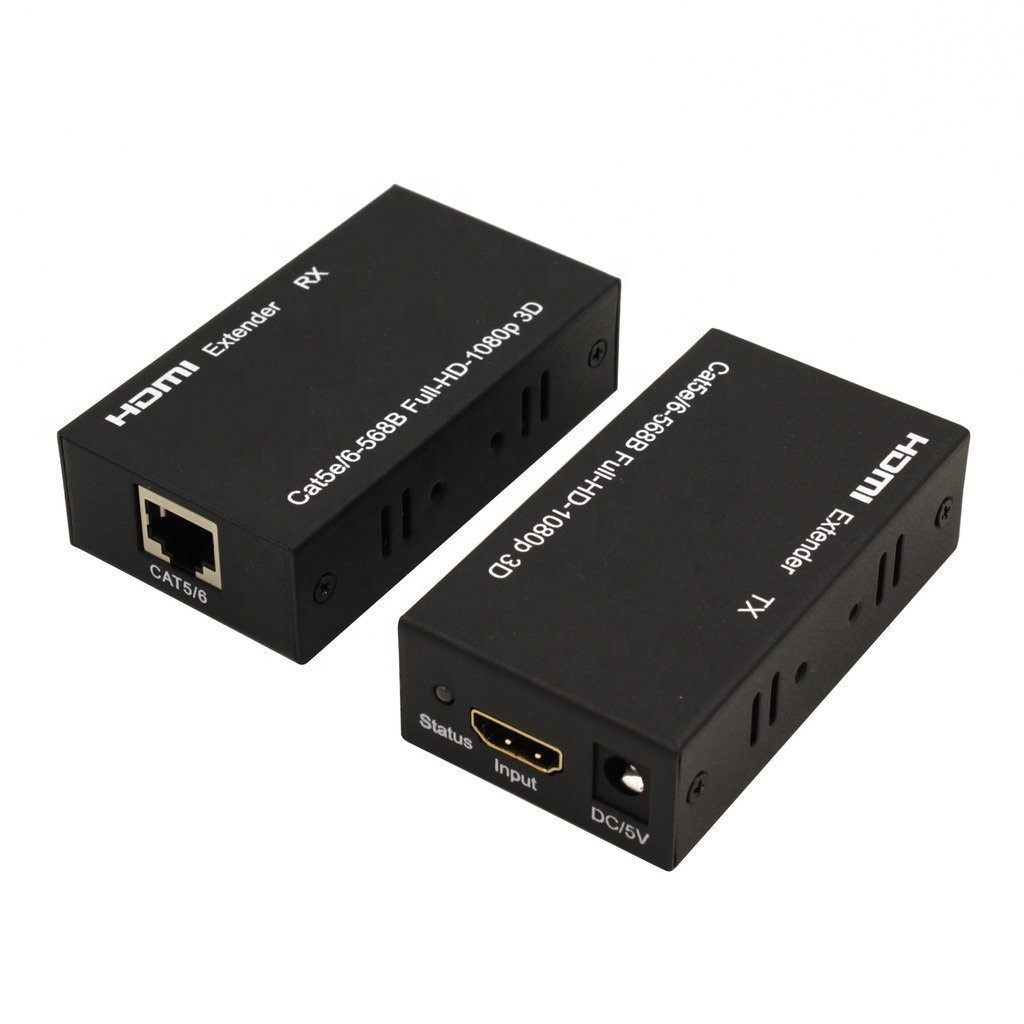

1080P 3D RJ45 to HDMI Extender up to 60m
Model: HD-EXS
Including Transmitter unit, Receiver unit and Power Supply
The Extender use Single cat-5E or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.
Two Pieces of 5V Power Adapter
one pc of Manual
Operating and Connecting :
| 1 | Connect one HDMI cable up to 15 meters between source device and TX Extender |
| 2 | Connect one HDMI cable up to 15 meters between sink device and RX Extender |
| 3 | use one cat5e/6(recommend cat6) to connect the sender and receiver, and the Ethernet cable can be up to 60m. |
| 4 | Connect the power adaptor to the sender and receiver. |
| Length of CAT-6 cable between Rx and TX | Up to 60 meters |
| HDMI Input | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format input | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| HDMI Output | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format output | LPCM7.1/DTS/Dolby-AC3/DSD |
| Max bandwidth | 165MHz |
| Max baud rate | 4.95Gbps |
| Input Video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TT1L) |
| Input/Output HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| Max working current | 1000mA |
| Power adapter format | Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A(RX/TX) |
| Operating Temperature range | (-15 to +55°C) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 82x44x22 (mm) (RX/TX) |
| Weight | 200g |
