Quick Details
-
Brand Name:
-
YL
-
Products Status:
-
Stock
-
Structure:
-
Cover glass + sensor glass
-
Touch controller:
-
FT5316
-
LCD Interface:
-
RGB
-
Touch screen interface:
-
I2C
-
Touch points:
-
2
-
Customized:
-
Available
Quick Details
-
Display Size:
-
7 inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
YL070MY01
-
Brand Name:
-
YL
-
Products Status:
-
Stock
-
Structure:
-
Cover glass + sensor glass
-
Touch controller:
-
FT5316
-
LCD Interface:
-
RGB
-
Touch screen interface:
-
I2C
-
Touch points:
-
2
-
Customized:
-
Available

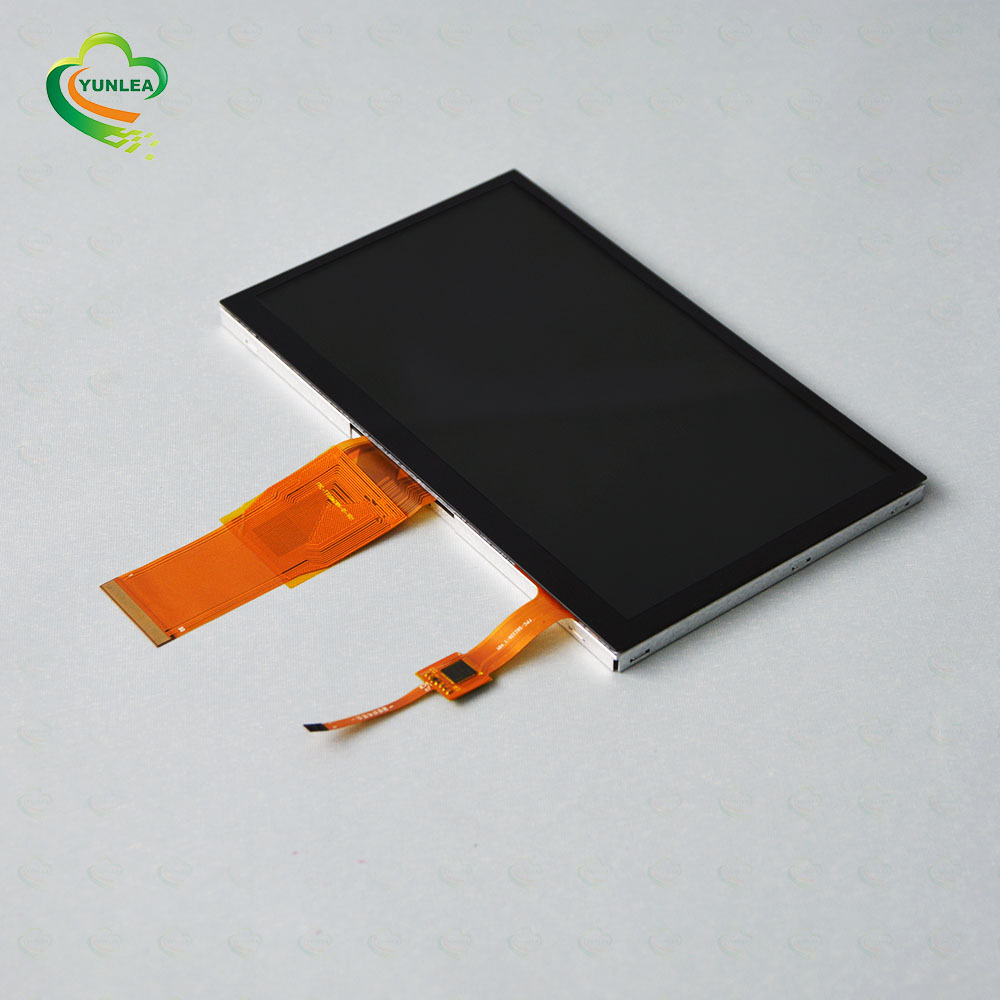

Yunlea, processes 5000 m2 factory area &1 0+ yrs experience in producing touch screen up to 55 inch with max 60 touch points . Using first-class production equipment and facilities to provide reliable touch solution.
|
Type |
Capacitive touch screen+LCD | LCD interface | RGB |
| Outline Dimension |
164.9 x 100.0 x 6.93 mm
|
CTP interface | I2C |
| Active Area |
154.08 x 86.42 mm
|
Transparency | 86%min |
| Resolution | 800 * 480 | Surface Hardness | 6H |
| Touch Points | 2 points + gesture | Operating Temp | -20 to 70 degree |
| Touch Controller | FT5316 | Touch Solution | COF(Chip on FPC) |
| Silk-print Color | Black | Customized | Available |
| Supported Os | Win7/8/10, Linux, Android, Mac, QN | ||
| MOQ | 1 piece | Trade Terms | EXW or FOB |
| Warranty | 12 months | Lead Time | Samples in stocks,2~4 weeks for mass production |
| Payment |
100% Paypal or T/T or Western union in advanc for samples ,
50% T/T in advance and 50% before delivery for mass production |
||
| Size | Part No. | Outline dimension | Active area | Resolution | TFT interface | CTP interface | Touch controller | color | |
| 3.5 | YL035MY01 | 66.86x94.94 | 48.96x73.44 | 320x480 | RGB 18 bit+SPI-3 | I2C | Mstar 2133A | Black | click |
| 4.3 | YL-S99816D | 114x77x4.88 | 95.04x53.86 | 480x272 | RGB | I2C | FT5346 | Black | click |
| 5 | YL050MY01 | 127X85.8 | 108X64.8 | 800X480 | RGB | I2C | FT5436 | Black | click |
| 7 | YL070MY01 | 164.9x100 | 154.08x86.42 | 800X480 | RGB | I2C | FT5436 | Black | click |
| 10.1 | YL101MT02 | 235X143 | 222.72X125.28 | 1024X600 | LVDS | I2C | GT928 | Black | click |
| 10.1 | YL101TT05 | 255X178 | 216.96X135.6 | 1280X800 | LVDS | I2C | GT927 | Black | click |
| Size | Part No. | Sesnor OD | LENS OD | LENS T | window VA | CTP interface | Touch controller | color | |
| 3.5 | YL035CY03 | 82.34x56.86 | 94.94x66.86 | 0.7 | 74.94x50.36 | I2C | Mstar 2133A | Black | click |
| 4.3 | S82327H | 103.10x85.40 | 114x77 | 0.7 | 96.04x53.86 | I2C | FT5346 | Black | click |
| 5 | YL050CY01 | 120.7X75.8 | 127X85.80 | 0.7 | 109X65.8 | I2C |
FT5436 FT5316 |
Black | click |
| 7 | YL070CY01 | 159.70x94.10 | 164.90x100 | 0.7 | 154.08x85.92 | I2C | FT5436 | Black | click |
We have standard 3.5-55 inch Touch screen. If our standard one can't fit with your project. We are welcome you to customized your own touch screen. Any demand, pls don't hesitate to contact with me.
We can according to your demand to customized your touch screen like customized cover glass's shape,silk-printing color, touch with water , touch with gloves and so on. If you are interested in, pls click it to watch the video.
