Quick Details
-
Model Number:
-
AM-RS-04Y/10Y
-
Warranty:
-
2 years, 3 years
-
Type:
-
auto on off switch lighting control
-
Power:
-
<0.5W
-
Sensing Range:
-
6-8m
-
Rated Load:
-
35W
-
Match with:
-
LED Lamps, fluorescent lamps, incandescent lamps
-
Model:
-
Radar Sensor Switch
-
material:
-
ABS
-
Input/Output Voltage:
-
185-265V AC
-
Sensor Distance:
-
6-8m radius
-
Delay time (Hold Time):
-
18-25sec
-
Sensor Mode:
-
Automatic ON/OFF mode
-
Application:
-
corridor,stairs,warehouse, elevator
-
Certification:
-
NO
Quick Details
-
Voltage:
-
185-265V or 110V
-
Place of Origin:
-
Chile
-
Brand Name:
-
ALLMAY
-
Model Number:
-
AM-RS-04Y/10Y
-
Warranty:
-
2 years, 3 years
-
Type:
-
auto on off switch lighting control
-
Power:
-
<0.5W
-
Sensing Range:
-
6-8m
-
Rated Load:
-
35W
-
Match with:
-
LED Lamps, fluorescent lamps, incandescent lamps
-
Model:
-
Radar Sensor Switch
-
material:
-
ABS
-
Input/Output Voltage:
-
185-265V AC
-
Sensor Distance:
-
6-8m radius
-
Delay time (Hold Time):
-
18-25sec
-
Sensor Mode:
-
Automatic ON/OFF mode
-
Application:
-
corridor,stairs,warehouse, elevator
-
Certification:
-
NO

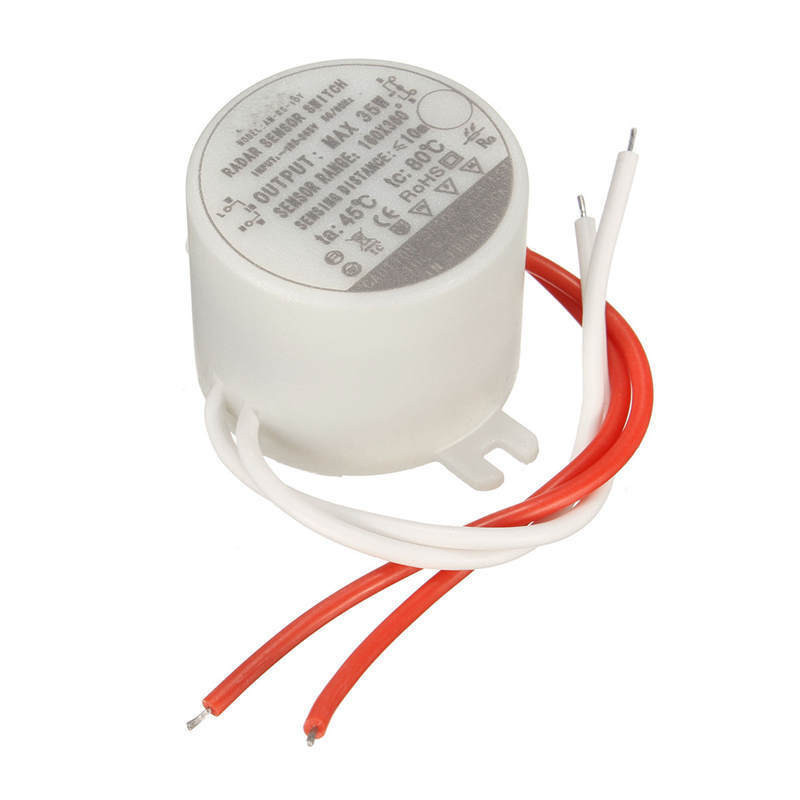

Hot Sale 35W 185-265VAC Corridor Intelligent Automatic On/Off Radar Sensor Switch for LED Lamps Control
| Input Characteristics | |||||||
| Model No. | AM-RS-04 | AM-RS-04Y | AM-RS-03 | AM-RS-86 | AM-RS-03 | AM-TG-01 | AM-SS-86 |
| Mains voltage |
185~265V/ DC12/24V |
185-265V | 85-265V | 85-265V | 85-265V | 85-265V | 85-265V |
| Stand-by power | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W |
| Load Rating | 5-35W | 5-35W | 5-200W | 5-200W | 5-200W | 5-200W | 5-200W |
| Sensor Data | |||||||
| Sensor principle | HF Microwave | HF Microwave | HF Microwave | HF Microwave | HF Microwave | HF Microwave | Handwave |
| Operation Frequency | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | Infrared sensor |
| Transmission power | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW |
| Detection range: Max(diameter*H) | 8m*6m | 8m*6m | 8m*6m | 8m*6m |
1-8m (selectable) |
1-8m (selectable) |
<25cm |
| Detection angle | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° |
| Hold time | 15+/-5s | 15+/-5s | 15+/-5s | 15+/-5s |
3s-160s (selectable) |
3s-160s (selectable) |
/ |
| Daylight sensor | <10 lux | <10 lux | <10 lux | <10 lux |
0-300lux (selectable) |
0-300lux (selectable) |
/ |
| Environment | |||||||
| Operation Temperature(Ta) | -20~40°c | -20~40°c | -20~40°c | -20~40°c | -20~40°c | -20~40°c | -20~40°c |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP65 | IP20 |
Customer Questions & Answers
- Sensor type : ON/OFF Mode (100%-0%)
when the switch detect movement, It will switch on/off the load (Downlight/Panel light/Tube etc),
no movement, stand by status light off (0%)
- Delay time: 20 seconds
( mean, the last movement past, light still keep on lighting 20 seconds)
- Brightness(Daylight) Sensor <10 lux (Optional)
with brightness sensor, that mean motion sensor only work at night,
even if there is movement in daytime,the light doesn't light on.
- Quality control:
we have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
- Warranty : 2 years
- Application: corridor stair way warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.
Microwave motion sensor switch
Match with: Incandescent bulb, halogen lamp, fluorescent lamp, CFL, PL, LED light
Application: Building, office, underground garages, corridor, washroom, warehouse
Built-in Lighting Fixture Display
Ceiling Mounted Display
