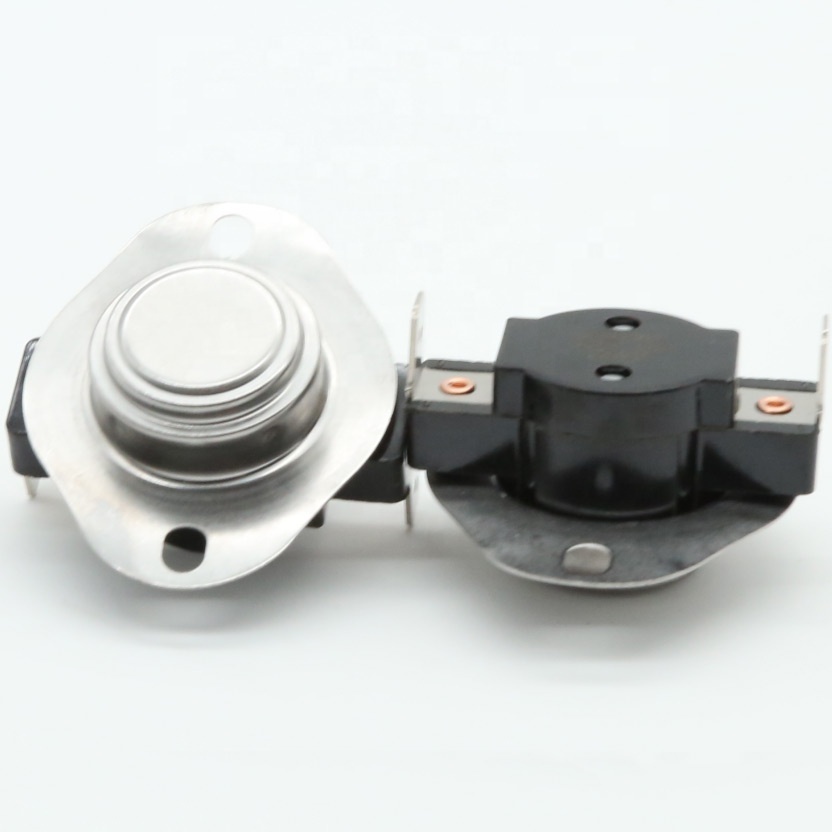

KSD302 T6Z Thermostat Switch Auto Reset Adjustable Snap Disc Metallic High Limit Control for Clothes Dryer Fan Control Blower

KSD302 T6Z Thermostat Switch Auto Reset Adjustable Snap Disc Metallic High Limit Control for Clothes Dryer Fan Control Blower

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $2.2

≥10000 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power Source:: Electric

Place of Origin:: Guangdong, China

Brand Name:: senreach

Model Number:: KSD302 T6Z Series Thermostat

Product Name:: KSD302 T6Z Thermostat Switch Auto Reset Metallic High Limit Control

Rating Current:: 10A, 16A, 20A

Rating Voltage:: 250V AC

Temperature Sensing Material:: Bimetallic

Terminal:: Brass

Base Material:: Phenolic Resin

Bracket:: Fixed Or Movable

Temperature Range:: 140C-180C

Certification:: CQC UL VDE TUV

Quick Details

After-sales Service Provided:: Onsite Installation

Warranty:: 1 Year

Application:: Household

Power Source:: Electric

Place of Origin:: Guangdong, China

Brand Name:: senreach

Model Number:: KSD302 T6Z Series Thermostat

Product Name:: KSD302 T6Z Thermostat Switch Auto Reset Metallic High Limit Control

Rating Current:: 10A, 16A, 20A

Rating Voltage:: 250V AC

Temperature Sensing Material:: Bimetallic

Terminal:: Brass

Base Material:: Phenolic Resin

Bracket:: Fixed Or Movable

Temperature Range:: 140C-180C

Certification:: CQC UL VDE TUV

The Description of T6Z KSD302 Thermostat Switch Auto Reset Adjustable Snap Disc Metallic High Limit Control for Clothes Dryer Fan Control Blower Electric Oven

T6Z KSD302 Thermostat Switch Auto Reset Adjustable Snap Disc Metallic High Limit Control for Clothes Dryer Fan Control Blower Electric Oven

• Temperature Holding Function

• Control Functions

• As Safety Thermostats

• Strong Conductivity • Corrosion Resistant • Strict Selection of Materials

- Widely used for temperature control or protection for household electric appliances.

- The KSD302 series comprises a wide range of bimetallic thermostats, with extremely compact dimensions and fitted with a snap-action trip device.

The Details of T6Z KSD302 Thermostat Switch Auto Reset Adjustable Snap Disc Metallic High Limit Control for Clothes Dryer Fan Control Blower Electric Oven

Rated Current	10A, 16A, 20A
Rated Voltage	AC 250V
Type	Snap Action
Terminal	Brass
Base Material	Phenolic Resin
Sensing Cover	Stainless Steel
Temperature Sensing Material	Bimetallic
Reset Type	Automatic Reset
Temperature Range	140C-180C
Insulation Resistance	More Than 10MΩ
Normal insulation resistance	＞300MΩ
Storage temperature	-10℃ ~ 40℃
Storage humidity	≤75%RH
Application	Washing Machine, Dryer Blower
Features	High Accuracy of Resistance and B Value, High Sensitivity and Interchangeability
Certification	CQC UL VDE TUV

Installation and Use Instructions:

1. Method of earth: By means of the metal cup of thermostat connected in the earthing metal part. 2. The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust. 3. When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface. 4. If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. Moreover, cautious measures should be taken to prevent liquids getting into/onto the thermostat’s insulation parts. 5. The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.

Working Principle of KSD302 Series Temperature Thermostat :

When the electrical appliance works normally, the bimetallic sheet is in the free state and the contact is in the closed / open state. When the temperature reaches the operating temperature, the contact is opened / closed, and the circuit is cut / closed, so as to control the temperature. When the electric appliance cools to the reset temperature, the contact will automatically close / open and return to the normal working state.

Kindly Note:

1.Do not collapse, loosen or deform the top of cover surface during installation to avoid affecting performance. 2.Do not allow liquid to penetrate into the interior of the thermostat or crack the housing. 3.The thermostat should be stored in a warehouse with RH less than 90% and ambient temperature less than 40 ℃, which is ventilated, clean, dry.

The Proudct Size of T6Z KSD302 Thermostat Switch Auto Reset Adjustable Snap Disc Metallic High Limit Control for Clothes Dryer Fan Control Blower Electric Oven

The Feature of T6Z KSD302 Thermostat Switch Auto Reset Adjustable Snap Disc Metallic High Limit Control for Clothes Dryer Fan Control Blower Electric Oven :

【High Reliability】 The KSD302 Thermostat quick-acting thermostat is a series of small bimetal thermostats with a metal cover. The wing temperature sensor has the characteristics of stable performance, high accuracy, small size, light weight, high reliability, long life and low wireless interference 【High Sensitivity】 The pins of the temperature switch KSD302 thermostat control switch have high sensitivity and reliability. In addition, some numbers and letters are engraved on the metal cover to identify the size. Do not allow liquid to enter the thermal switch, and cracks on the cap cannot be used. 【High Accuracy】 Normally closed normally open thermal temperature controlled switch KSD302 thermostat means that the contacts of the thermal switch are usually kept closed. When the temperature rises to the set value, the contact will open and cut off the circuit. A normally open thermal switch means that the contacts of the thermal switch are usually kept open. When the temperature rises, the contacts will close and connect. 【Stable & Durable】 The KSD302 thermal control switch has a simple but practical structure to make the switch more stable and durable. The thermostat can protect the battery while charging and prolong its service life by 3 times.

Why Choose Us/Our Advantages

The Senreach KSD302 Series NC NO Temperature Thermal Control Switch Thermostats are universal and general purpose, automatic reset, low cost, large capacity, minute current thermostats constant temperature sensor. Thermal switch has the characteristics of stable performance, high precision, small volume, light weight, high reliability, long service life and small radio interference. With temperature holding function, control functions, and even as safety thermostats.

Application

The KSD302 temperature control switch is mainly used for motor electric heating water dispenser, electric boiling water bottles, water bottles, kettles, disinfection cupboard, disinfection cabinet, coffee shell, coffee pots, air conditioning, water heater, electronic cooker, electric iron, clothes dryers, heater, warm water bags, cabinets, disinfecting cupboards, motor cleaner, microwave ovens and so on.
