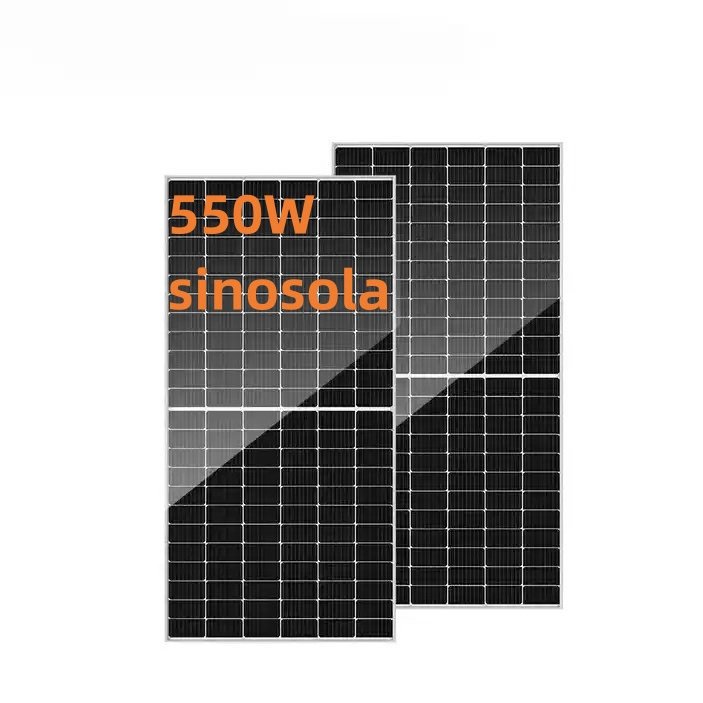

High efficiency Solar Panel Truck Campers Motorhome Wholesale Price Solar Panel For Cars Rv
High efficiency Solar Panel Truck Campers Motorhome Wholesale Price Solar Panel For Cars Rv
High efficiency Solar Panel Truck Campers Motorhome Wholesale Price Solar Panel For Cars Rv
High efficiency Solar Panel Truck Campers Motorhome Wholesale Price Solar Panel For Cars Rv
High efficiency Solar Panel Truck Campers Motorhome Wholesale Price Solar Panel For Cars Rv
High efficiency Solar Panel Truck Campers Motorhome Wholesale Price Solar Panel For Cars Rv
High efficiency Solar Panel Truck Campers Motorhome Wholesale Price Solar Panel For Cars Rv
High efficiency Solar Panel Truck Campers Motorhome Wholesale Price Solar Panel For Cars Rv

High efficiency Solar Panel Truck Campers Motorhome Wholesale Price Solar Panel For Cars Rv

FOB Reference Price: Get Latest Price
≥50000 Pieces
US $0.15
≥100000 Pieces
US $0.14
≥300000 Pieces
US $0.13
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Jiangsu, China
Panel Dimensions:
2309mm*1203mm*35mm
Panel Efficiency:
21.3%
Dimension(L*W*H):
2309mm*1203mm*35mm
Weight:
29.5 kg
Glass Type:
High Transmittance Anti-reflective Coated Tempered Glass/3.2mm
Solar Cell:
189(27x7)/Mono/Half-cell
Encapsulant:
EVA
Frame:
Anodized Aluminum Alloy/Silver
Junction Box:
IP68
Cable:
4mm²,350mm(+)/150mm(-);Customizable
Connector:
MC4 Compatible
Container Size:
40'HQ

Quick Details

Cell size:
2309mm*1203mm*35mm
Brand Name:
sinosola
Model Number:
JAM72S30-550
Place of Origin:
Jiangsu, China
Panel Dimensions:
2309mm*1203mm*35mm
Panel Efficiency:
21.3%
Dimension(L*W*H):
2309mm*1203mm*35mm
Weight:
29.5 kg
Glass Type:
High Transmittance Anti-reflective Coated Tempered Glass/3.2mm
Solar Cell:
189(27x7)/Mono/Half-cell
Encapsulant:
EVA
Frame:
Anodized Aluminum Alloy/Silver
Junction Box:
IP68
Cable:
4mm²,350mm(+)/150mm(-);Customizable
Connector:
MC4 Compatible
Container Size:
40'HQ
Product Description
Product Features of Classic Series
1.Innovative Layout
Innovative back contact module layout with asymmetric design for higher efficiency power
2.High Efficiency
Busbar-free design increases cell conversion efficiency，more power output can be achieved at low irradiance conditions
3.High Reliability
Conductive back sheet’s 2D encapsulation avoids welding stress and micro crack, resulting lower degradation under multiple harsh testing conditions
4.High ROI
Single-glass modules with global 30-year performance warranty bring higher return on investment
5.Aesthetic Design
The design of busbar and tapping ribbon free makes module more aesthetic
6.Lead Free
Eco-friendly PV design achieves lead-free MWT module without soldering materials

Specification
Electrical Performance Parameters (STC)
Spec/Model
Unit
SPP580QHCH
Max-Power(Pm)
W
580
Power Tolerance
W
0~+5
Max-PowerVoltage(Vm)
V
35.9
Max-PowerCurrent(Im)
A
16.16
Open-Circuit Voltage(Voc)
V
42.9
Short-Circuit Current(lsc)
A
17.18
Module efficiency(nm)
%
20.9
STC:AM=1.5,Irradiation 1000W/m²,Module Temperature 25℃ PowerTolerance±3%
Electrical Characteristics at Nominal Module Operating Temperature（NMOT）
Spec/Model
Unit
SPP580QHCH
Max-Power(Pm)
W
432
Max-PowerVoltage(Vm)
V
33.4
Max-Power Current(Im)
A
12.93
Open-Circuit Voltage(Voc)
V
40.3
Short-Circuit Current(Isc)
A
13.85
NMOT: Irradiation800W/m²,Ambienttemperature 20℃,Wind Speed 1m/s
Mechanical Characteristics
Dimension(L×W×H)
2309mmx1203mmx35mm
Weight
29.5kg
Glass Type
High Transmittance Anti-reflective Coated Tempered Glass/3.2mm
Solar Cell
189(27x7)/Mono/Half-cell
Encapsulant
EVA
Frame
Anodized Aluminum Alloy/Silver
Junction Box
IP68
Cable
4mm²，350mm(+)/150mm(-)；Customizable
Connector
MC4 Compatible
Package
Transportation
Container
Container Size
40’HQ
Quantity(pcs)
558
Quantity(per pallet)
31
Operating Conditions
Max System Voltage
DC1500V(TUV)
Max Fuse Rated Current
25A
Operating Temperature Range
-40℃～+85℃
Mechanical Load
5400Pa（front）/2400Pa（rear）
Max Allowable Hail Load
φ25mm hail,from 1m of distance at 23m/s
Application Class
Class A
Temperature coefficient
Nominal Module Operating Temperature
43±2℃
Power Temperature Coefficient
-0.36%/℃
Voltage Temperature Coefficient
-0.28%/℃
Temperature Coefficient of Current
0.06%/℃
Certifications
Our Advantages

The strength of sino-sola

Since its establishment, the company has built a number of projects relying on new energy generation design and power generation data, with a cumulative capacity of 63MWp and a cumulative power generation capacity of 80 million KWH. We have a professional technical team and we are happy to explore the best solar products for our customers, creating professional solutions for caravan solar systems, household solar systems and large industrial-type solar systems.
We are committed to bringing Chinese solar products to the world !
Transportation
FAQ
1. What kind of company are you? We are a national high-tech enterprise based in East China focusing on the development and utilization of commercial and industrial We are a national high-tech enterprise that focuses on the development and utilization of the rooftop photovoltaic power generation and energy storage microgrid system for industrial and commercial enterprises. 2. What can you provide? We can provide solar panels, solar inverters, solar systems, and we have the best solution team in China to create customized solutions for our customers based on continuous exploration and cost reduction to ensure quality and safety.
3.What is your mode of transportation?
The international section is usually transported by sea, and we will use multimodal
transportation such as railroad and barge after entry.
4. Why choose us? A.Better solar products B.Advantageous price C.Customized solutions D.High standard of product quality 5. What services can you provide? Accepted delivery terms: FOB,CIF,EXW,CIP,FCA,DDP,DDU; Accepted payment currencies: USD,EUR,CNY; Accepted payment methods: T/T,L/C,PayPal,Western Union,Cash.
