Quick Details
-
Technology:
-
Automatic Welding
-
Process:
-
Cut,Weld,Punch,Printing
-
Performance:
-
One-time Monolithic Pouring
-
Finish:
-
Special Coating
-
UsageTime:
-
≥300 times
-
Name:
-
Aludek
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Material:
-
Aluminum 6061-T6
-
Application:
-
Concrete Pouring for Slab
-
Technology:
-
Automatic Welding
-
Process:
-
Cut,Weld,Punch,Printing
-
Performance:
-
One-time Monolithic Pouring
-
Finish:
-
Special Coating
-
UsageTime:
-
≥300 times
-
Name:
-
Aludek

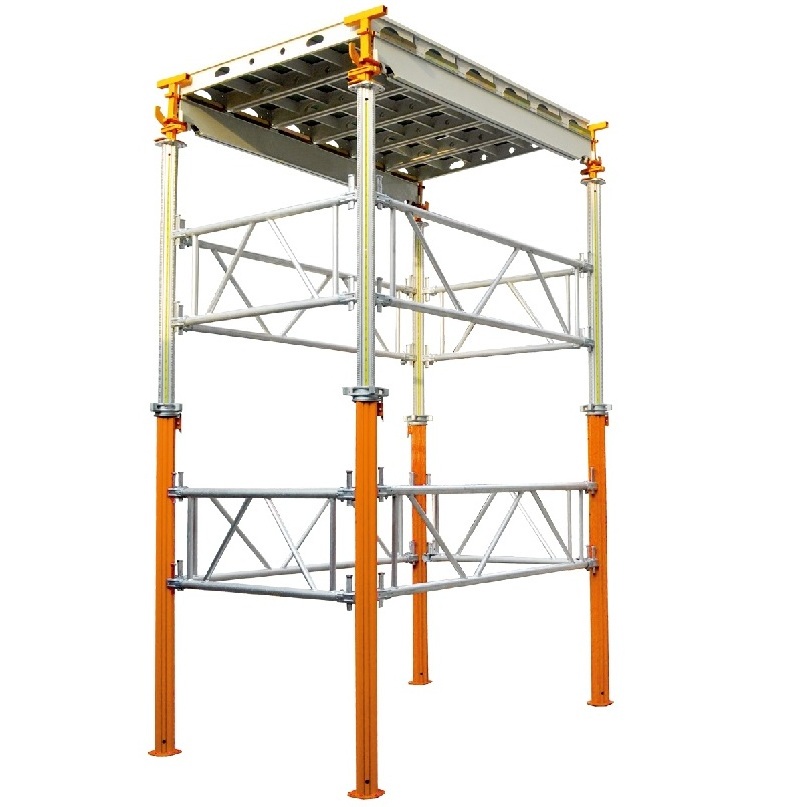

TECON Aluminium Slab formwork Similar with Skydeck
TECON Aluminium Slab formwork is one of the most efficient and convenient slab forwmork system. With modular size aluminum frame panel and multi-purpose prop, it can be erected by a few workers very fast easily without crane assistance.
1. Basic components & specifications
Aluminium formworks
* Strong anti-corrosive coating on the panel.
* The plywood (optional to be supplied) can be reused many times upon proper utilization after concrete molding.
Deflectiontolerance in accordance with DI N 18202 at Perfect Levelling.
Aluminium beams
* Custom made sizes available on request, h=185mm
Aluminium Multi-purpose Prop TMP
* Start collar screw
* Self cleaning threading
* Built-in safe stopping device
* Height indication tape
* Powder coated outer tube
Connection heads
* TECON Ring Connectors (RC02) can be easily and rapidly assemble on either the inner tube or the outer tube at any desirable height thus enable sturdy structure for any construction requirements
2. Features
* Fast & high efficient, save your time and labor cost
Pre-fabricated modular aluminium panels in only a few sizes make it easy in forming different plan of slabs
Thanks to the light weight panels workers can erect and strike them directly without any crane lift
High load capacity TMP Aluminium prop thus less quantity required
* Tidy site, nice appearance
Easy cleaning due to powder-coated elements
All panels will be packed by pallet or as your request.
* C onsultancy
Offer you a general idea of formwork & scaffold among TECON various systems, to fit your project demand
* Technical Planning
Customized forming & shoring solution proposal according to your structural drawing by Auto-cad
* Order Delivery
From fabrication to loading, fast to your site with standard export packages
* On-site Supervision
Shop drawing, user manual, and even send our supervisor to your site for training and supervision
Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements.
TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases.
Pre-shipment inspection will be also supported according to clients’ request or by third-party.
